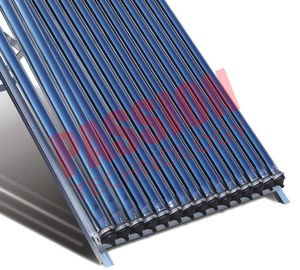

20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating

20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating
20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating  20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating  20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating

Large Image :  20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 20tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

20 Tubes Heat Pipe Thermal Solar Collector Flat Roof Assembly For Room Heating

Description
Heating Collector: 20 Tubes Insulation Thickness: 40mm
Bracket: Aluminum Alloy Assembly: Flat Roof
Heat Pipe: 24*70mm Condenser Copper Collector: Heat Pipe
Reflector: Stainless Steel Application: Room Heating
High Light:

solar thermal collectors

,

photovoltaic thermal hybrid solar collector

High Efficiency Flat Roof 20 Tubes Heat Pipe Thermal Solar Collector Stainless Steel Reflector



Features



1. 10 years warranty

2. Copper heat pipes for rapid heat transfer and freeze resistant.

3. Reliable, efficient, tri-element evacuated vacuum tubes

4. Easy plug-in installation
5. Maintenance free
6. Suitable for mains pressure water (up to 6bars, max. 10bars)
7. Corrosion resistant material (aluminum and copper)
8. Aluminum frame 2.0mm thickness
9. Black or Silver aluminum casing in good insulated
10. Stable solar conversion throughout the day
11. The best solar collector for domestic solar water heater systems
12. Ideal for commercial solar water heater applications
13. Comprehensive 10 years limited warranty (life time will be more than 20years).



Working principle



1) When the discrepant temperature of the solar collector and water tank reaches

the set value, the controller shall start the circulation pump automatically

2) The circulation pump makes heat-conducting liquid circulate automatically
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank
4) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically.



Solar Collector:



Vacuum tubes SS/CU/AL-N AL selective coating, 58X1800mm glass tube, 1.6mm thickness 58X1800mm glass tube, 1.6mm thickness
Insulation Glass fabric, 32mm
Outer cover material and thickness: aluminum alloy, Thickness2.0mm
Diameter and thickness of header pipe: Ø35mm, T1mm,cooper manifold
Heat pipe High standard TU1 Copper, L1700* Ø 8*T0.6mm
Aluminum fins length and thickness L1620mm, T0.275mm
Bracket material and thickness Flexibility for flat or slope roof,Aluminum alloy with 2.0mm thickness
Caliber of cooper manifold Ø 22mm Thickness 0.8mm
Anti-freezing > -35 degree
Seal High quality silicone rubber polymer





Packaging Details:

1. Full container: Standard Export Carton(Foam+Carton)
2. LCL Order: Special Packing(Wooden Pallet)+Standard Export
Carton(Foam+Carton)
3. Customized.



Delivery details: 7-15 days.



Our Service For YOU



Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell water heater, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.



FAQ:



1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample

2. Shipping: 3 days for sample, 10 days for 20/40 container.

3. MOQ: Sample is available

4. Warranty: 10 years guarantee for whole set solar water heater

5. Port of departure: Shanghai or Ningbo

6. Supply ability: 5000 sets per month

7. life time: more than 20 years
