Product Details:
|
| Heating Collector: | 15 Tubes | Certificate: | CE Approved |
|---|---|---|---|
| Frame: | Aluminum Alloy | Installation: | Flat Roof |
| Heat Pipe: | 14*70mm Condenser Copper, Nickel Plated | Manifold Color: | Silver |
| Angle Of Bracket: | 45 Degree | Application: | Heating Water Tank |
| High Light: | photovoltaic thermal hybrid solar collector,solar thermal flat plate collectors |
||

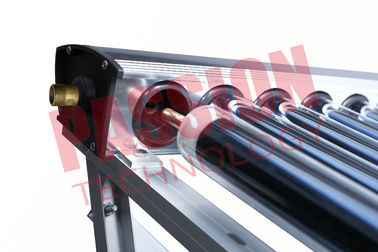

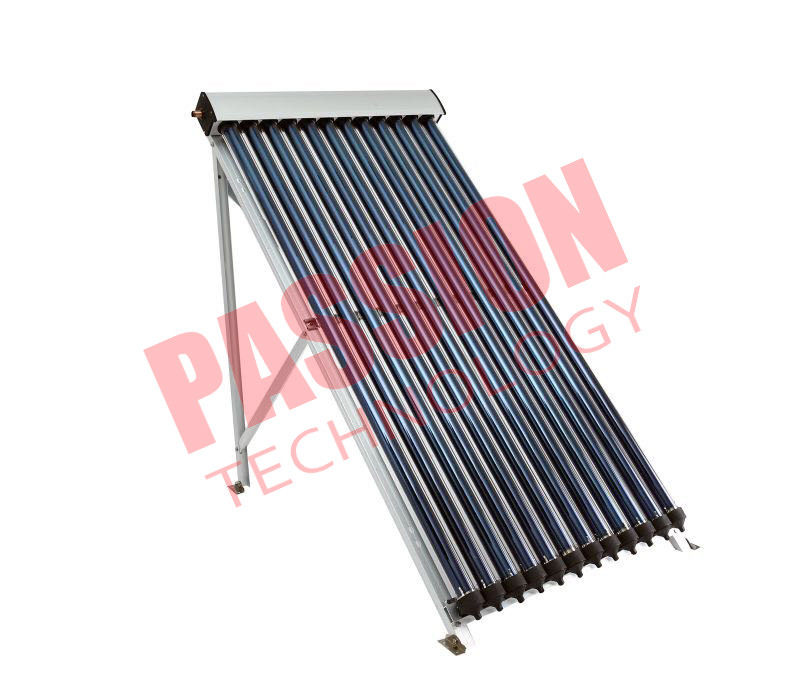

CE Approved 15Tubes Vacuum Tube Black Rooftop Heat Pipe Thermal Solar Collector with Aluminium Alloy Frame
Working Principle:
high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.
The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.
The heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser.
In active system, a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.
The cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.
Specifications
Manifold Pipe Material: Copper
Heat Pipe Material: Copper
Manifold Pipe size: 3/4" threaded (male)
Tube Material: Borosilicate Glass
Coating of Glass Absorber: AI-N-AI, Copper, Stainless Steel
Heat Transfer Fin: Aluminum Fin
Insulation Material: Rock Wool
Frame Material: Aluminum Alloy
Manifold Casing Material: Aluminum Alloy
Max Operation Pressure (Bar): 7
Warranty: 15 Years
Advantage
Warranty:
6 years international responsibility for heat pipe solar collector and 15 years for vacuum tubes due to original quality problems.
| Heat pipe Solar collector | |
| Technical Data | |
| Hydraulic Connections | G3/4" male thread |
| Maximum operation pressure(Bar) | 6 |
| Test pressure(Bar) | 9 |
| Heat transfer fluid | Anti-freeze Fluid (Water-Glycol) |
| Max.working temp.(°C) | 250 |
| ΔT | 35°C(Radiation>=800w/m2.day) |
| Collector efficiency | >=75% |
| Medium | Pure water |
| Evacuated Tube | AL-N-AL single target tube |
| Start-up Temperature of heat pipe | <=30°C |
| warranty | 5 years |
| Material Details | |
| Flow type | Heat pipe |
| Heat pipe material | T2 copper |
| Heat pipe size | Top: Ø14* 1mm; Body: Ø8* 0.7mm |
| Coating of absorber on glass tube | Al-N-Al |
| fins around heat pipe | single long Aluminum(1.68m) |
| Manifold pipe material | TP2 copper (Ø35x0.8mm) |
| Manifold casing | Aluminum alloy(size-150mm*160mm,thickness-2.0mm) |
| Insulation material in manifold caseing | Glass fiber |
| Thickness of insulation(mm) | 45 |
| Frame material | Aluminum alloy frame(1.2mm) |
Solar collector information
| Model | Tube Size/Qty | Capacity | PACKING SIZE | Pressure | ||
| Volume | ||||||
| 20GP | 40GP | |||||
| PT5812 | 58mm*1800/12 | 120L | 0.18 | 150 | 300 | 0.6Mpa |
| PT5815 | 58mm*1800/15 | 150L | 0.22 | 127 | 239 | 0.6Mpa |
| PT5818 | 58mm*1800/18 | 180L | 0.28 | 100 | 192 | 0.6Mpa |
| PT5820 | 58mm*1800/20 | 200L | 0.3 | 93 | 180 | 0.6Mpa |
| PT5825 | 58mm*1800/25 | 250L | 0.42 | 65 | 130 | 0.6Mpa |
| PT5830 | 58mm*1800/30 | 300L | 0.45 | 60 | 120 | 0.6Mpa |
| PT4712 | 47mm*1500/12 | 80L | 0.13 | 210 | 415 | 0.6Mpa |
| PT4715 | 47mm*1500/15 | 100L | 0.15 | 186 | 357 | 0.6Mpa |
| PT4718 | 47mm*1500/18 | 120L | 0.17 | 164 | 317 | 0.6Mpa |
| PT4720 | 47mm*1500/20 | 150L | 0.19 | 145 | 312 | 0.6Mpa |
| PT4728 | 47mm*1500/28 | 200L | 0.25 | 120 | 270 | 0.6Mpa |
| PT4735 | 47mm*1500/35 | 250L | 0.32 | 96 | 211 | 0.6Mpa |
