WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System

WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System
WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System

Large Image :  WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: WIFI Module
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD90-500
Packaging Details: Cartons
Delivery Time: 5 days
Supply Ability: 1000units/day

WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System

Description
Use: Solar Water Heater Accessories Function: Hot Water Remote Monitoring System
Type: WIFI Module Power: 220V/110V
DC Input: 5V/1A Model: RS485 Converter
Current: 1A Size: 90mm*55mm*45mm
High Light:

solar water heater spare parts

,

solar hot water spare parts

Solar Water Heater Accessories Hot Water Remote Monitoring System WIFI Module to RS485 Converter​



Introduce:

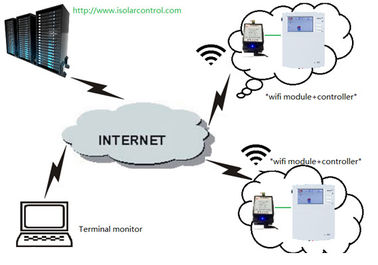

Solar hot water remote monitoring system is a system platform which is designed for the management between distributors and end users, below abb. Monitoring system, the system scheme is like below.



Communication mode:

RS485


Protocol:

user-defined protocol


Principle:
Through the connected WIFI module controller sends the data directly to the local intranet.



Then data is sent through local internet to the center server.

And server can send the orders to the controller.

Distributors with different authorization can operate and maintain the user management system and solar water system remotely within his own range.



Just with a computer which is connected to the internet, you can load in the server anywhere and operate the controller.



It is very convenient for customer to know and manage their solar hot water system.

Conditions for using this monitoring system:
Buying the controller with the remote communication port and the special wifi module from our company,
Ensure the solar hot water system is installed and ready for using,
Commissioning and configuring the wifi module, and reading below operation instruction and familiar with this product. And then enjoy the convenient and efficiency benefit from the combination of SCM and internet.



Main technical data:

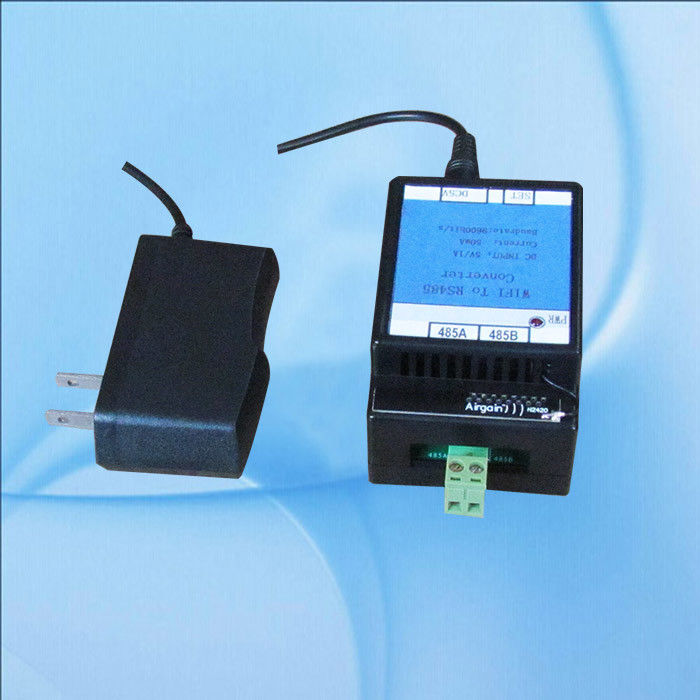

WIFI to RS485 Converter
DC input 5V/1A
Current 1A
Baudrate: 9600bite


Size:90mm*55mm*45mm
Power supply:DC5V1A
Power consumption:1W
Ambient temperature:-10c to 50c
Communication:WIFI to RS485 converter
Baudrate:9600bite
Configuration mode:A key configuration/ AP mode configuration
Apply for:SR288 SR1568



Main functions:

Through the connected WIFI module controller sends the data directly to the local intranet then data is sent through local internet to the center server and server can send the orders to the controller distributors with different authorization can operate and maintain the user management system and solar water system remotely within his own range.



Just with a computer which is connected to the internet you can load in the server anywhere and operate the controller.

It is very convenient for customer to know and manage their solar hot water system.

WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System 0

WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System 1

WIFI Module Solar Water Heater Accessories Hot Water Remote Monitoring System 2
