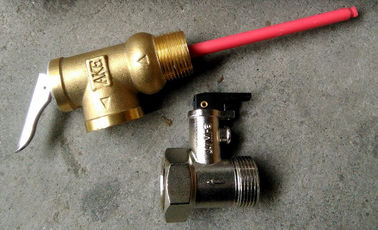

Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve

Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve

    • Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve
    • Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve
    • Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve
  • Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE
    Model Number: PT Valve

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD90-500
    Packaging Details: Cartons
    Delivery Time: 5 days
    Supply Ability: 1000units/day
    Contact Now
    Detailed Product Description
    Model: T/P Valve Pressure : 0.5, 0.6, 0.7, 0.8, 0.9, 1.0MPa
    Application: Temperature & Pressure Relief Use: Solar Water Heater Accessories
    Temperature: 99 Celsius Degrees Warranty: 12 Months.
    MOQ: 1 PC Certificate: CE
    High Light:

    solar water heater spare parts

    ,

    hot water heater accessories

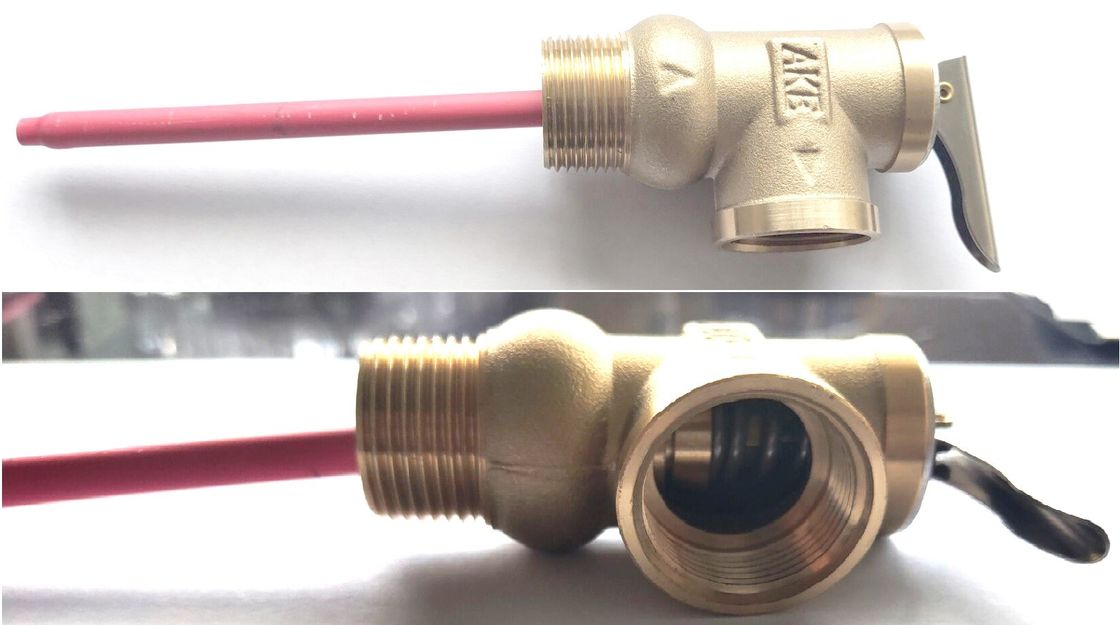

    Pressure Reduce Valve Safety Valve Air Release Valve 0.7 MPa Temperature Valve



    Usage: For Pressurized Solar Water Heater System.



    Pressure: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0MPa



    Model: Temperatuer and Pressure valve, Safety valve



    Standard:

    American(Watts) and Australian RMC prototype,

    American National Standard ANSIZ21.22,

    Canadian Gas Association standard CSA4.4,

    Australian standard ASI1357.1,LN938.

    National standard GB1241,GB1242,GB1243.

    Every index of the products reaches or exceed the international like product.



    Temperature & Pressure Safety Valves is suitable for the heaters of other sensitive functions,

    such as solar water heater, electric heater, heat pump water heater, various kinds of heating functions(such as the boiler),etc.

    Can reduce the temperature and pressure automatically.

    Have temperature and pressure double safe protection function.

    It is the security protector bearing the pressing type hot water device at present.



    Technical Data



    MODEL Import x Export(in)

    A

    (mm)

    B

    (mm)

    D

    (mm)

    T

    (mm)

    Weight

    Temp.steam

    BTU/hr

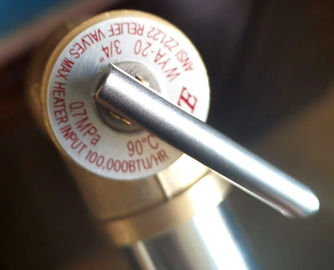

    WAY--15 R1/2*RP1/2 41 82 29 101 237 15,000
    WAY--20 R3/4*RP3/4 42 83 29 100 258 100,000



    For solar water heater, electric water heaters, gas water heaters, fuel heaters,

    heat pump water heaters and other heat (such as boilers),

    to automatically cooling and pressure relief, temperature and pressure with the double security protection.

    Set pressure: 0.6, 0.8MPa,1MPa,

    Set pressure deviation: 3% set pressure.

    Setting temperature: 99-4 Celsius degrees.



    MODEL Import x Export(in)

    A

    (mm)

    B

    (mm)

    D

    (mm)

    T

    (mm)

    Weight

    (g)

    YA-15 BSP 1/2“*BSP 1/2” 41 82 29 NA 177
    YA-20 BSP 3/4”* BSP P3/4" 42 83 29 NA 218
    YAT-15 NPT 1/2“*NPT 1/2” 41 82 29 NA 177
    YAT-20 NPT 3/4”* NPT 3/4" 42 82 29 NA





    For solar water heater, electric water heaters, gas water heaters, fuel heaters,

    heat pump water heaters and other heat (such as boilers), to automatically cooling and pressure relief.

    Default pressure: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0MPa

    Set pressure deviation: -10%, +5%.



    Maintenance



    • After installing water heater the users must lift the relief valve handle once at least every year,

    so as to ensure that unblocked things in the waterway of the relief valve.



    • Before operating handles, please check the elimination pipeline which joining the relief valve,

    guaranteed that the hot water from the relief valve discharge the proper place, otherwise it may cause the bodily injury.



    • If the handle is lifted, without water flowing out, it proves that the relief valve is invalid.

    Then it should turn off the water heater immediately and check the valve.



    Warranty time: 12 Months.
