5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater

5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater
5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater

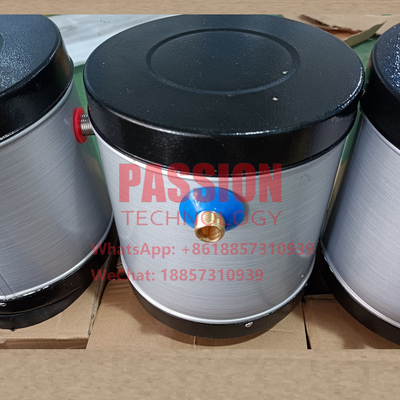

Large Image :  5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater

Product Details:
Place of Origin: China
Brand Name: Passion/OEM
Certification: CE
Model Number: 5L/8L/10L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10/UNIT
Packaging Details: Carton
Delivery Time: 5 days
Supply Ability: 500units/day

5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater

Description
Model: 5L/8L Funcation: Auto Feed
Outer Shell: Color Steel/Stainless Steel Name: Solar Assistant Tank
Type: Solar Water Heater Accessories Inner Shell: Stainless Steel
Use: Solar System Other Model: 8L/10L/15L
High Light:

5L Top Mounted Assistant Tank

,

100L Solar Water Heater

,

8L Solar Water Heater

5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater



Specifications:
1). Inner tank: SUS 304 2B Stainless Steel.
2). Outer tank: Galvanized Steel or SUS 304 2B Stainless Steel.


Features:
1). Makes water flow into the main storage tank automatically.
2). Available for pressurized, non-pressurized systems.
3). Automatically control, more comfortable, it won't waste water if you forget to turn off the water faucet.
4). Plays a role as water feeder, it can control the water level because there is a ball cock in the assistant tank.

And all the cold water flow in via the assistant tank, so when the water in the solar water tank is full,

it will stop supplying water by closing the water valve.

On the contrary, when the water in the big water tank is not sufficient,

it will open the water valve automatically when continue to supply cold water into the big tank.
5). It has different volume as well, the bigger the assistant tank, the more pressure it can endure.



Technical Data of Solar Water Heater:



Inner tank SUS 304 stainless steel, 0.41mm thickness
Inner tank diameter 360mm,380mm
Outer tank PVDF steel, 0.40mm thickness
Outer tank diameter 460mm,470mm,480mm
Capacity 100L-360L
Tank insulating layer 50-60mm high-density polyurethane foamed
Foam pressure 32kg/m3 minimum
Heat reservation 72 hours
Evacuated tube type 3 target tube AL-N-AL/SS/CU coated
Outer Glass Tube Diameter 58mm
Inner Glass Tube Diameter 47mm
Length of the Vacuum Tube 1800mm
Thickness of the Glass Tube 1.6mm
Material of bracket Galvanized steel 1.5mm
Structure of bracket Flexibility for flat or slope roof
Angle of bracket 0-50 degree
Screw for bracket SUS 202 stainless steel 8mm diameter
Seal High quality silicone rubber polymer

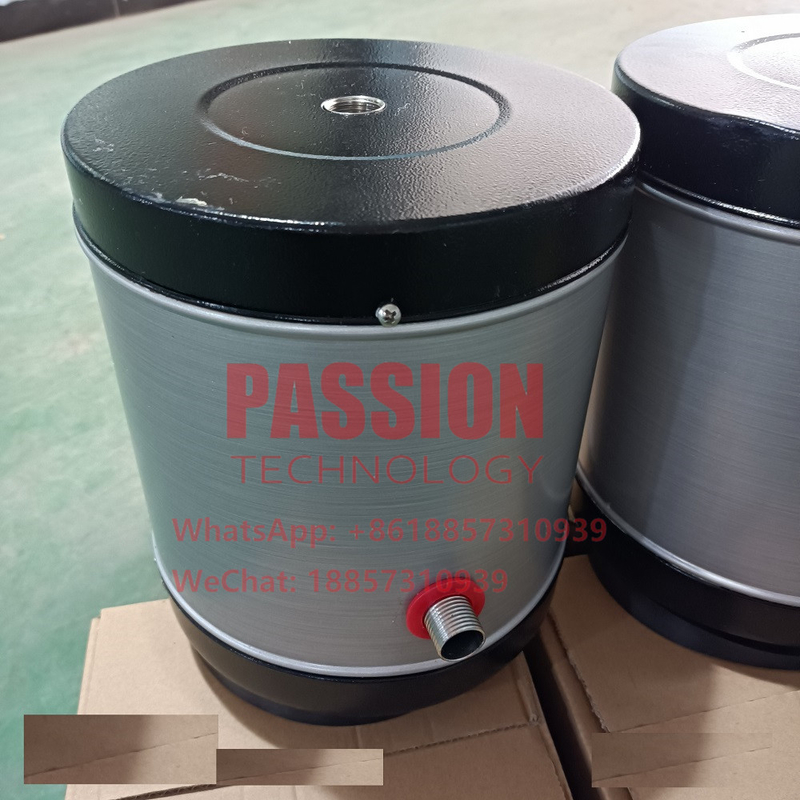

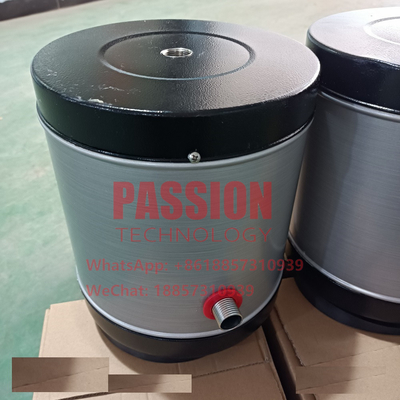

5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 05L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 15L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 2

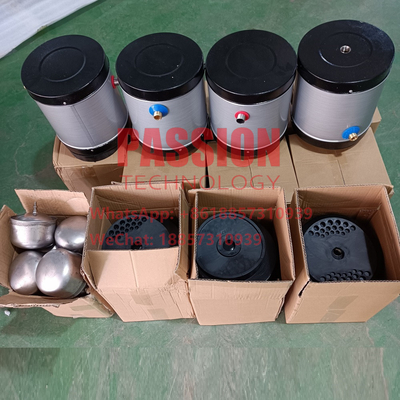

5L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 35L Top Mounted Assistant Tank 8L Side Installed Tank 100L Solar Water Heater 4
