High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating

High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating
High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating

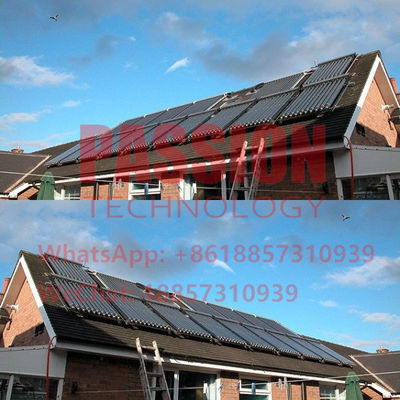

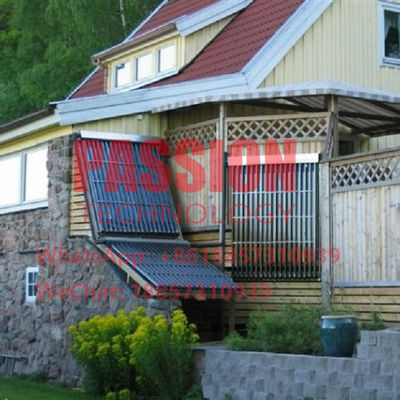

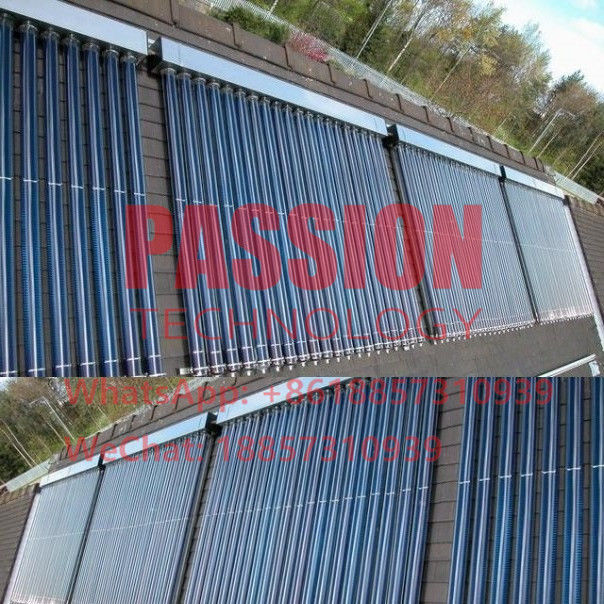

Large Image :  High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 25tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating

Description
Model: 25 Tubes Insulation Layer: 40mm
Frame: Aluminum Alloy Assembly: Pitched Roof
Heat Pipe: 24mm Condenser Copper Manifold Color: Silver
Collector: Heat Pipe Structure: InDirect Thermosiphon
High Light:

Pitched Roof High Pressure Solar Collector

,

Indirect Circulation High Pressure Solar Collector

,

25 Tubes High Pressure Solar Collector

High Pressure Solar Collector Indirect Circulation Solar Water Heater Pool Heating



Heat pipe solar collector working principle



1) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

2) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the

header pipe.

3) Solar energy storage: water is circulated through the header, via intermittent pump cycling.

Each time the water circulates through the header, the temperature is raised by 5-10C.

Throughout the day, the water in the tank is gradually heated.



Features:



Reliable and efficient heat-pipe solar tubes

Copper heat pipes for rapid heat transfer

Easy plug-in installation

Free maintenance

Suitable for main pressure water

Corrosion resistant silver brazed copper heater

The surface is made of powder coated galvanized steel

Stable solar conversion during the day

The perfect solar collector for domestic solar water heater systems

Ideal for commercial solar water heating applications



Heat Pipe Solar Collector Detailed Specification
Item Parts Description
Manifold box Manifold Outer Case 1001 Aluminum alloy with plastic spraying; thickness: 2.0mm;
Heat Insulation Layer Rock wool, thickness: 55mm, density 120-140kg/m 3
Copper Header Tube TU2, thickness: 1.0 mm, Hole spacing: 75mm, max operation pressure 6 bar, phosphor copper brazing
End Cover Nylon
Dust Ring Silicone Rubber 110
Tube holder Nylon 66
Frame Frame Aluminum alloy with plastic spraying; thickness: 2.0mm
Heat Pipe Evacuated Tube Vacuum Tube Three high vacuum tube, ALN/ALN-SS/CU absorber coating, Dia: 58mm, Length: 1800mm.
Copper Heat Pipe TU1, Silver Soldering; Condenser of the pipe: diameter: 14mm; length: 70mm; wall thickness: 1.0mm; The rest of the pipe: diameter: 8mm; length: 1700mm; wall thickness: 0.8mm
Aluminum Fin AL; thickness: 0.2mm; Length: 1600mm
Tube Plug Silicone Rubber and Stainless Steel
Model Supply hot water(L) Dia& Length of tube(mm) Qty. of tubes(pcs) Absorber Area(sqm) Loading of 20GP/40HQ
PT-SC-58-1800-10 100 58*1800 10 1.41 148/361
PT-SC-58-1800-15 150 58*1800 15 2.10 138/336
PT-SC-58-1800-18 180 58*1800 18 2.52 116/282
PT-SC-58-1800-20 200 58*1800 20 2.80 95/237
PT-SC-58-1800-25 250 58*1800 25 3.50 86/215
PT-SC-58-1800-30 300 58*1800 30 4.20 61/152
PT-SC-58-1800-36 360 58*1800 36 4.80 52/ 128



















































































Technology:



Model OEM
Manifold casing material Aluminum painted un-oxygen layer
Frame material Aluminum or Stainless Steel and painted Layer
Header pipe material Copper
Heater pipe material Copper
Insulation Rock wool(it can bear much higher temperature than the polyurethane foam)
Rubber seals and rings UV stabilized high temperature dilicon rubber
Test pressure 9 bar
Collector mounting Plane roof / slope roof
Angle of operation 10-80
Inlet Outlet Φ22 or 3/4 inch male



Quality Policy:

products regular :≥99%

QC before output :100%

Replace free of the bed products:100%

Guarantee :5 years

We can also produce according to your requirement.And OEM is also provided.
