|Frame:||Aluminum Alloy||Installation:||Pitched Roof|
|Heat Pipe:||24mm Condenser Copper||Structure:||Heat Pipe|
|Angle Of Bracket:||0/30/45 Degree||Application:||Shower|
Pitched Roof Heat Pipe Solar Collector,
30tubes Heat Pipe Solar Collector,
45 Degree Heat Pipe Solar Collector

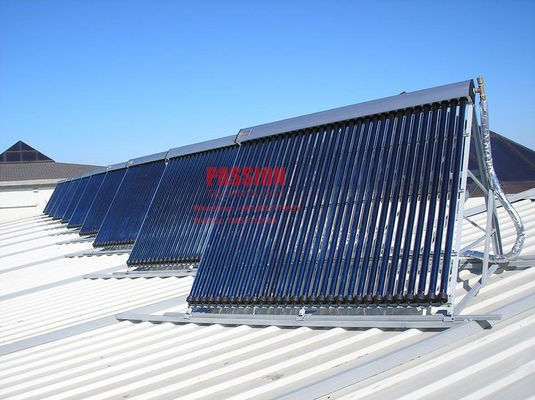

High Pressure Solar Pool Heating Collector 30tubes Heat Pipe Solar Collector
Specifications of heat pipe solar collector
1. Vacuum Tube: borosilicate glass 3.3
2. Tube Coating: AL-N/SS/Cu (Tri-elements)
3. Tube Dimension : dia58mm*1800mm
4. heat pipe: 14mm diameter heat pipe tip. length:1720mm
5. Manifold casing material: aluminum alloy
6. Heat channel:TU2 copper
7. Insulating layer:polyurethane and mineral wool
8. Frame: 2.0mm aluminum alloy
9. Anti-Freeze: -35C
The Collector are with Solar Keymark, SRCC, CCC, ISO9001:2000 certificates.
a). heat pipe solar collector tubes
c). 2.0mm Aluminum Alloy free standing bracket
high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.
The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.
The heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser.
In active system, a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.
The cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.
|Heat Pipe Solar collector|
|Model||Tube Specification||Tube Coating||
|20'GP (sets)||40'GP (sets)||40'HQ (sets)|
|Size of Condenser||24*70mm/14*70mm|
|Length of glass tube||1800mm|
|Outer tube diameter||58mm|
|Inner tube diameter||47mm|
|Glass material||Borosilicate Glass 3.3|
We have both vacuum tubes factory and water tank factory for more than 8 years.
We provide 6 years Warranty for the whole system.
Keep the delivery time exact.
Your inquiry will be replied within 12 hours.
We offer you professional service with fluent English.
Keep the bulk production as the samples in high quality.
Freight forwarder: faster, safer and convenient.
Quality : we have QC in each process.
Packaging & Delivery
Packaging Details: Export carton for full container.
Delivery Detail: 7 days after receiving the deposit.
6 years international responsibility for heat pipe solar collector and 15 years for vacuum tubes due to original quality problems.
