Home ProductsHeat Pipe Solar Collector

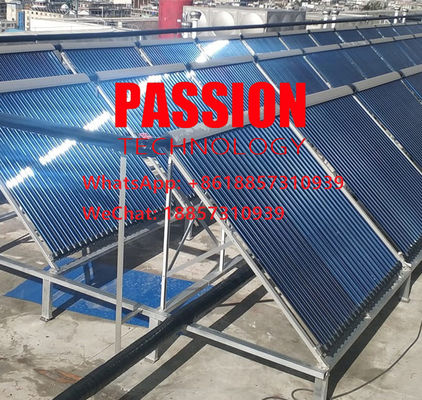

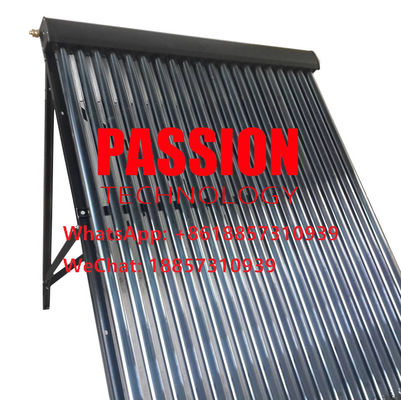

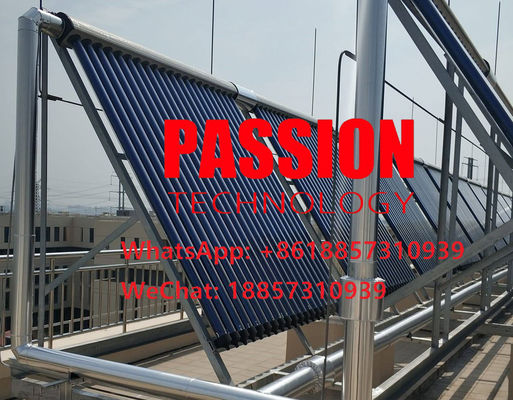

heat pipe solar panel vacuum tube collector copper pipe solar collector closed loop collector pressurized solar panels

heat pipe solar panel vacuum tube collector copper pipe solar collector closed loop collector pressurized solar panels

    • heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels
    • heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels
    • heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels
  • heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 10/15/20/25/30tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Model: 10/15/20/25/30tubes Insulation Layer: 40mm
    Frame: Aluminum Alloy Assembly: Pitched Roof
    Heat Pipe: 14mm/24mm Condenser Copper Manifold Color: Silver/Black
    Collector: Heat Pipe Structure: Indirect Thermosiphon

    heat pipe solar panel vacuum tube collector copper pipe solar collector closed loop collector pressurized solar panels





    Advantage:

    • Material of manifold is SUS304 stainless steel or aluminum alloy

    • Copper heat pipe for rapid heat transfer.

    • Max Pressure bearing: 8bar.

    • ISO9001 / CE certificate/EN-12975.

    • 5 years warranty.

    • Corrosion resistant brazed copper header.

    • Attractive design, standard frame suitable for pitched roof or flat roof .

    • Easy plug-in installation.

    • Improves the environment and save your fuel cost.



    Heat pipe solar collector working principle



    1) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

    2) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the

    header pipe.

    3) Solar energy storage: water is circulated through the header, via intermittent pump cycling.

    Each time the water circulates through the header, the temperature is raised by 5-10C.

    Throughout the day, the water in the tank is gradually heated.



    Key features

    • Modular “plug ‘n’ play” design (Manifold, frame and tubes in separate packages)
    • Lightweight manifold design
    • Choice of Stainless Steel or Anodized Aluminum mounting frames
    • Extremely reliable header design due to only 6 brazing joints
    • Contoured header for turbulent flow even at low flow-rates
    • All glass wool insulation for high temperature stability
    • Patented heat transfer fin design for optimal heat transfer
    • Long term stability under extreme conditions
    • Extreme cold (freeze protected heat pipes)
    • Coastal regions (salt spray)
    • Harsh UV radiation (UV stabilized components)
    • High Winds (up to category C cyclone)
    • Snow loading



    Technical datas:



    Model PT-C-15 PT-C-18 PT-C-20 PT-C-24 PT-C-25 PT-C-30
    Tube QTY(PCS) 15 18 20 24 25 30
    Three Target Vacuum Tube Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3;
    Heat Pipe Condesor: φ14/φ24*70mm ; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa;
    Outer Shell/Bracket Alluminum Alloy,Silver
    Insulation Layer Rock wool
    Dustproof Rubber EPDM
    Dsily Heat Gain 8.5MJ/m²
    Work Pressure 0.6MPa
    Inlet/outlet 22mm/3/4"
    Tailstock ABS
    Temperature 250 °С
    Contour Aperture Area 2.32m² 2.75m² 3.10m² 3.64m² 3.78m² 4.52m²
    Aperture Area 1.43m² 1.70m² 1.89m² 2.27m² 2.36m² 2.83m²
    Absorption Area 1.22m² 1.46m² 1.62m² 1.95m² 2.04m² 2.43m²



    Quality Policy:

    products regular :≥99%

    QC before output :100%

    Replace free of the bed products:100%

    Guarantee :5 years

    We can also produce according to your requirement.And OEM is also provided.



    heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels 0

    heat pipe solar panel vacuum tube collector copper pipe  solar collector closed loop collector pressurized solar panels 1
