Product Details:
|
| Heating Collector: | 20 Tubes | Insulation Thickness: | 40mm |
|---|---|---|---|
| Bracket: | Aluminum Alloy | Assembly: | Inclined Roof |
| Collector: | Heat Pipe | Manifold Color: | Silver |
| Insulation Material: | Rock Wool | Application: | Swimming Pool |
| High Light: | heat pipe vacuum tube solar collector,pressurized solar collector |
||

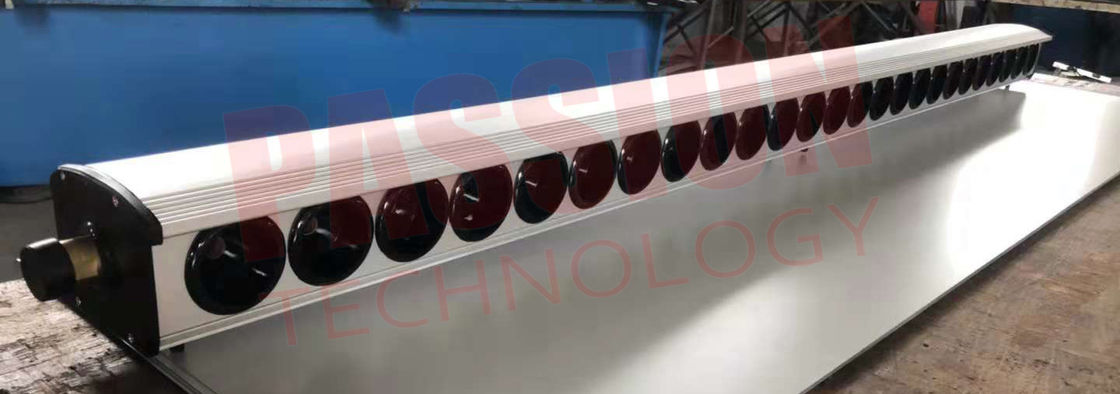

Aluminum Alloy Manifold Rock Wool Heat Pipe Solar Collector Anti-freezing High Temperature
Solar Collector:
1. High efficient heat pipe for split system
2. Solar keymark,SRCC,CE,ISO9001,CCC,SGS certified
3. High quality and pure copper
Work Principle:
1. Solar absorption: solar radiation is absorbed by the evacuated tube and converted into heat.
2. Solar heat transfer:
Heat pipes conduct the heat from vacuum tube inside to header tank of solar collector.
3. Solar energy storage:
water or other liquid is circulated through the header tank,via intermittent pump cycling.
4. Circulation between solar collector and storage tank:
each time the water or other liquid circulates through the header tank, the temperature is raised by 5-10°C, the water in the
5. storage tank is heated gradually by this way.
Solar water heater collector description:
| Inner manifold material | Red copper material |
| Outer shell material of manifold | Aluminum alloy |
| Frame/Bracket material | Aluminum alloy |
| Heat pipe material | 99.93% pure copper / lead free ,45%silver brazing |
| Rubber Seals and rubber Rings | HTV grade silicone rubber |
| Optional installation angle | 0°,30° ,38° ,45° |
| Maximum Operating Pressure | 12bar |
| Vacuum tube | 47mm*1500mm,58mm*1800mm with heat pipe |
| Daily efficiency | =55%(=42% in winter) |
| Hailstone resistance | Dia =25mm |
| Optional flow rate | 0.1L/min/tube 0.026G/min/tube |
| Heat pipe anti-freezing | =-40 Celsius degree |
| Life span | More than 15 years |
| Working pressure | 0.6MPa(6bar) |
| Insulation | Rock wool /Polyurethane |
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
Packaging Details:
1. Full container: Standard Export Carton(Foam+Carton)
2. LCL Order: Special Packing(Wooden Pallet)+Standard Export
Carton(Foam+Carton)
3. Customized.
Delivery details: 7-15 days.
Our Service For YOU
FAQ:
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
2. Shipping: 3 days for sample, 10 days for 20/40 container.
3. MOQ: Sample is available
4. Warranty: 10 years guarantee for whole set solar water heater
5. Port of departure: Shanghai or Ningbo
6. Supply ability: 5000 sets per month
7. life time: more than 20 years
