Product Details:
|
| Capacity: | 300L | Structure: | Integrative |
|---|---|---|---|
| Principle: | Pressure | Coating: | Germany Blue Film |
| Outer Tank: | Painted Steel | Inner Tank: | Stainless Steel |
| Collector: | Flat Plate | Heat Preservation: | 72 Hours |
| High Light: | compact solar water heater,solar hot water heater |
||

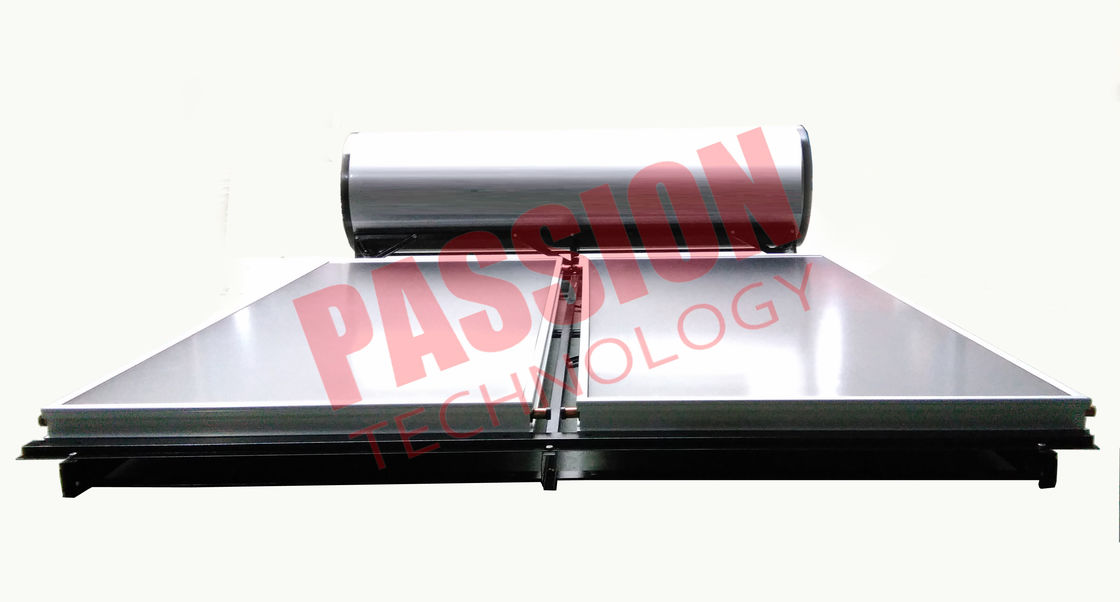

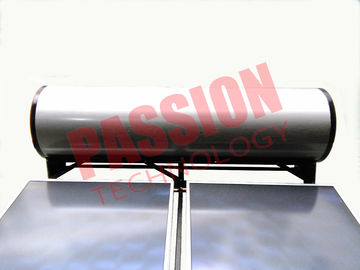

Rooftop Germany Blue Film Coating Pressurized Flat Panel Solar Water Heater
Product description
Flat Plate Solar Collector Technical Data :
| Model | PT-F-AO | PT-F-BC | PT-F-BT | |||
| Data | ||||||
| Dimension LxWxH (mm) | 2000*1000*80 / 2000*1250*80 / 2000*1500*80 | |||||
| Gross Area (m2 ) | 2.00 | |||||
| Absorber Area (m2 ) | 1.9 | |||||
| Number of covers | 1 | |||||
| Cover Material | Low iron tempered textured glass | |||||
| Cover Thickness(mm) | 3.2 | |||||
| Cover Transmission | >91.7% | |||||
| Weight (KGS) | 29 | |||||
| Absorber | ||||||
| Absorber material | Aluminium Plate | |||||
| Absorber coating | Anode Oxidation | Black Chrome | Blue Titanium | |||
| Welding | Laser welding/Ultrasonic welding | |||||
| Construction Type | Grid type | Grid type | Grid type | |||
| Header Material | Copper TP2 | Copper TP2 | Copper TP2 | |||
| Header pipe | Red copper/ Φ22*0.6*2 PCS | |||||
| Riser Material | Copper TP2/CA1220 | |||||
| Riser pipe | Red copper/ Φ8*0.5*7 PCS/Φ10*0.5*7 PCS | |||||
| Work Pressure | 0.6Mpa | |||||
| Test pressure | 1.2Mpa | |||||
| Thermal Insulation | ||||||
| Insulation Material | Fiberglass | |||||
| Insulation Thickness | 40mm | |||||
| Casing | ||||||
| Frame | Aluminium alloy | |||||
| Frame Colour | Silver/Black | |||||
| Back Plate | Galvanized steel | |||||
| Sealing Gasket | EPDM | |||||
Flat Plate Solar Water Heater Technical Data :
| Model | PTP-BT-15 | PTP-BT-20 | PTP-BT-25 | PTP-BT-30 | PTP-BT-35 | |
| Water Tank |
Circulation Type | Indirect/Closed circulation | ||||
| Tank capacity | 150L | 200L | 250L | 300L | 350L | |
| Outer tank | Color Steel Plate, 0.4mm Color: A - enamal white , B - silver | |||||
| Inner tank | Stainless steel SUS304-2B, 1.2mm | |||||
| Working pressure | 6 bar | |||||
| Test pressure | 12 bar | |||||
| T/P valve | 1 PC | |||||
| Mag rod | 1 PC | |||||
| Electric booster | 2KW | 2KW | 2KW | 3KW | 3KW | |
| Flat Panel Solar Collector | Dimension | 2000 x 1000 x 80mm | ||||
| Overall area | 2m² x 1 PC | 2m² x 2 PCS | ||||
| Absorber material | Aluminum Plate | |||||
| Absorber coating | Anode Oxidation / Black Chrome / Blue Titanium | |||||
| Header pipe | Red copper/ Φ22*0.6*2 PCS | |||||
| Riser pipe | Red copper/ Φ8*0.5*7 PCS/Φ10*0.5*7 PCS | |||||
| Welding | Laser welding/Ultrasonic welding | |||||
| Cover material | Low iron tempered textured glass | |||||
| Frame material | Anodised Aluminium Alloy | |||||
| Insulation | Glass Wool | |||||
| Piping connector | Φ22 | |||||
| Mounting Bracket | Material | Galvanized Steel Plate with plastic spraying, 1.4mm | ||||
| Bracket style | A: Flat roof (20° or 30° or 45°) B: Tilted roof ( 0° ) | |||||
How Pressurized Solar Water Heater Close Loop System Works
Pressurized solar water heater close loop system is combined with indirect solar water tanks, solar collectors, copper pipes, valves and other parts.
When the glycol in the jacket go through the collectors, it will become hot, then it will return to the jacket by itself. The system use thermal–siphon principle.
In this way, the hot glycol will gradually transfer the heat energy to the water in the tank.
There will be a heat element in the middle of the tank.
When the sunshine is not good, the heat element can work and heat the water. You can parallel combine several sets open loop solar water heater for large hot water requirement.
Close loop system is fit for the cold place, where the temperature is low than 0 degree, and bad water quality area.
Specification:
1) Water tank Inner tank: SUS304-2B, thickness 1.2mm/1.8mm.
2) Water tank Outer tank: stainless steel, or aluminum-zinc coated steel, or color steel with 0.3mm/0.4mm thickness .
3) Bracket: stainless steel, or galvanized steel plate with plastic spraying 1.2mm/1.4mm thickness.
4) Frame degree: 0 degree-51 degree. Dual-purpose frame for both flat and inclined roof.
5) Insulation: high density polyurethane foam 50mm/55mm/60mm.
6) Flat plate solar collector
7) Capacity: 50L-500L.
8) Pressure: 6 Pa.
9) Heat preservation: 72Hrs.
10) Hail resistance: 25mm.
Packaging & Shipping
1) Selling package: all export carton.
2) Transport package: Samples use the wooden box, other use the export cartons.
3) Shipping: Small LCL and high value suggest the air transport . FCL use the sea voyage.
Business Terms
| Delivery time: | 10days for samples load |
| 10days for container load | |
| Shipping port: | Shanghai or Ningbo |
| M&Q | 1set for sample and 20FT Container for order |
| Price Term: | FOB, CFR and CIF acceptable |
| transportation | Transport by sea, inland transport ,air transport |
Our Service
1) We offer customers 5 years for whole solar systems.
2) Carton design for customs is free offered when goods sent by container.
3) When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
It's hoped that our solar system can save you more money as well as protect our environment.
