Product Details:
|
| Capacity: | 200L | Principle: | Non Pressurized |
|---|---|---|---|
| Warranty: | 6 Years | Accessories: | Feeding Tank |
| Tube: | Vacuum Tube | Evacuated Tube: | Al/N/Al-SS-CC, 10 To 36 Pieces |
| Outer Tank: | 304 Stainless Steel | Inner Tank: | Stainless Steel 304 |
| High Light: | non pressurized solar water heater,compact solar water heater |
||

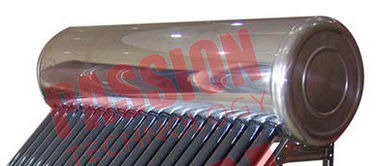

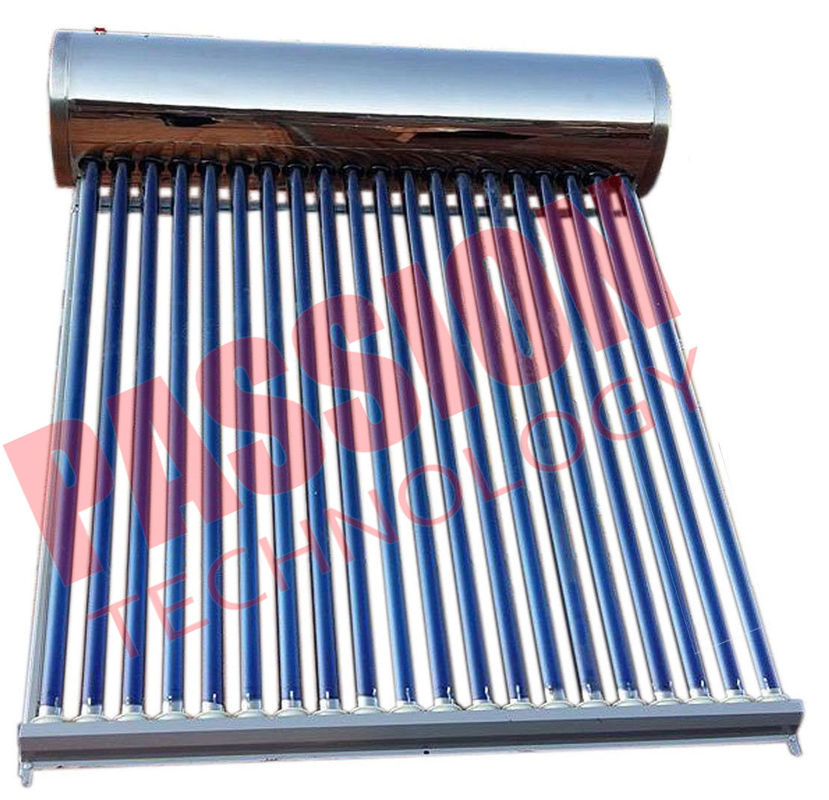

304 Stainless Steel 200L Non Pressurized Vacuum Tube Thermal Solar Water Heater With Feeding Tank
The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element.
The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level.
All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films.
Solar water heater components:
The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element.
The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level.
All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films.
Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status.
Keeping natural circulation like this, the water in the tank will be heated.
Material:
1. Inner tank: SUS304-2B stainless steel
2. Outer tank: High quality color coated steel 3.Insulation: Polyurethane
4. Frame: 1.2/1.5 mm pre-coated galvanized steel
Characteristics:
1. Beautiful appearance, steady structure, higher grads.
2. Inner and outside water tank shell all are welded by argon arc.
3. The tubes and frame are adjustable, power bearing is average, and can assure the vacuum tubes to use long time.
Technical parameters and Specifications:
| WATER STORAGE TANKS | |
| Material of out tank | High quality color coated steel |
| Material of inner tank | Food grade stainless steel 304-2B with Protective TIG welding. |
| Tank insulating layer | PUF Insulation 50/55/60 mm thickness with high density. |
| Welding: | Argon arc welding |
| EVACUATED VACUUM TUBES | |
| Tube structure | All-glass double deck co-axial structure |
| Glass material | High borosilicate 3.3 glass |
| Outer tube diameter and glass thickness | Ø58±0.7mm; Glass thickness 1.6±0.15mm |
| Inner tube diameter and glass thickness | Ø47±0.7mm; Glass thickness 1.6±0.15mm |
| Tube size | 58*1800mm |
| Resistant Hail | ≤25mm |
| Useful life | 15 years |
| BRACKET | |
| Bracket: | Pre-Coated Galvanized Steel |
| Bracket angle: | 22, 38, 45 optional, pitched roof, flat roof optional. |
| Fastening pieces: | Zinc-coated Stainless Steel Nut Bolt. |
Non Pressure Bearing Solar Water Heater Data Sheet:
| MODEL: | Solar Vacuum Tube | Absorber Area | Aperture Area | Capacity | Loading Qty/sets | |
| Item No. | Qty /(pcs) | Size/(mm) | (m2) | (m2) | (L) | 20GP/40HQ |
| 58/1800/10 | 10 | Φ58 X 1800 | 0.80 | 0.930 | 100 | 80/191 |
| 58/1800/12 | 12 | Φ58 X 1800 | 0.96 | 1.116 | 120 | 67/159 |
| 58/1800/15 | 15 | Φ58 X 1800 | 1.20 | 1.390 | 150 | 54/127 |
| 58/1800/16 | 16 | Φ58 X 1800 | 1.28 | 1.488 | 160 | 50/119 |
| 58/1800/18 | 18 | Φ58 X 1800 | 1.44 | 1.674 | 180 | 45/106 |
| 58/1800/20 | 20 | Φ58 X 1800 | 1.60 | 1.860 | 200 | 39/98 |
| 58/1800/22 | 22 | Φ58 X 1800 | 1.76 | 2.046 | 220 | 37/87 |
| 58/1800/24 | 24 | Φ58 X 1800 | 1.92 | 2.232 | 240 | 33/80 |
| 58/1800/25 | 25 | Φ58 X 1800 | 2.00 | 2.325 | 250 | 32/76 |
| 58/1800/30 | 30 | Φ58 X 1800 | 2.40 | 2.790 | 300 | 27/64 |
| 58/1800/36 | 36 | Φ58 X 1800 | 2.88 | 3.348 | 360 | 22/53 |
| 58/1800/40 | 40 | Φ58 X 1800 | 3.20 | 3.720 | 400 | 20/48 |
| 58/1800/42 | 42 | Φ58 X 1800 | 3.36 | 3.906 | 420 | 19/46 |
| 58/1800/48 | 48 | Φ58 X 1800 | 3.84 | 4.464 | 480 | 17/40 |
Additional Terms:
| Payment Terms | L/C, T/T |
| Minimum Order | 2 sets |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | after receipt of payment |
| Port of Lading | Ningbo / Shanghai |
| Shipping | by sea |
| Packing | export carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Latin America, Southeast Asia |
