|Collector:||Heat Pipe||Outer Tank:||Painted Steel|
|Inner Tank:||Stainless Steel 304||Bracket:||Galvanized Steel 0/20/30/45 Degrees|
compact solar water heater,
solar hot water heater

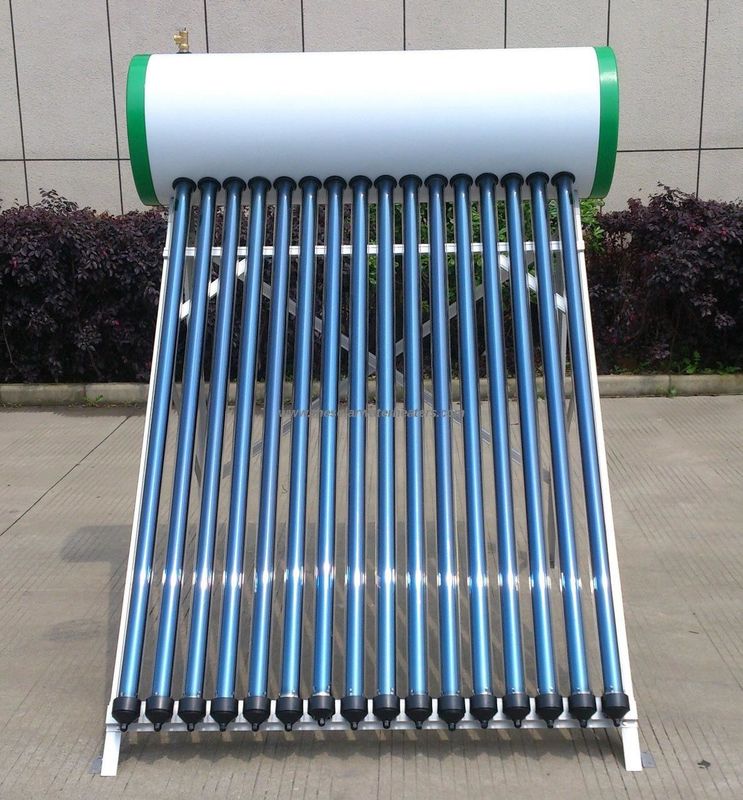

150L Electrical Heating Element Integrated Pressure Heat Pipe Thermal Solar Water Heater
Perhaps the most cost effective solar water heaters are called "compact" or "integrated" solar water heaters.
These heaters use the same High Performance Solar Collectors found on all our solar water heating system.

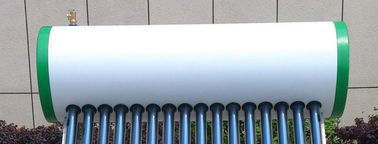

However, these units are designed strictly for domestic hot water and have the storage tank and heat pipe vacuum tubes integrated into one complete unit.
The compact solar water heater normally sits on a southern facing roof or is ground mounted with the 45 degree frame system.
Connection and installation of these systems are very simple.
The cold water intake from the house attaches to one end and the hot water supply to the other end.

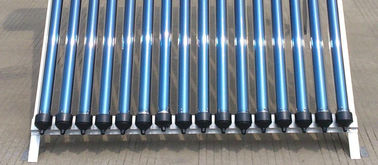

The 30 tubes contain heat pipes that are found inside the tank.
The water is heated through the transfer of energy form the vacuum tubes to the heat pipes and directly to the potable water.
The hot water rises to the top of the tank where it then supplies the hot water needs for the house hold.
These systems are very efficient and require no maintenance.
Because these systems use a vacuum tube with a heat pipe and an internally sealed heat exchanger.
There is no worry about leakage should a tube get damaged.
If a tube is broken you simply replace the vacuum tube with a new one and the system continuous to perform without that one tube.
No Electricity Required:
This is a pressurized system that has no pumps.
The water moves through the system from the pressure of the municipal water supply.
When you open your hot water faucet, hot water from the tank flows out and cold water flows into the tank to be reheated by the solar vacuum tubes.
No Over Heating:
These systems have a built in air release valve and Temperature and Pressure Valve that opens at 90 C or 194 F. Should the system get to hot it will simply vent off the excess heat.
stainless steel inner tank with good anti-rust property.
|Product Model||Tubes||Tank Capacity||Absorbing Area||Weight||Dimension
|470-1800/58-12||12pcs||100L||0.92m2||63KGS||1830*1210*1600||52/ 104 / 126|
|470-1800/58-15||15pcs||125L||1.14m2||78KGS||1830*1450*1600||43 / 86 / 104|
|470-1800/58-18||18pcs||150L||1.37m2||93KGS||1830*1690*1600||35 / 70 / 85|
|470-1800/58-20||20pcs||165L||1.52m2||103KGS||1830*1850*1600||32 / 64 / 78|
|470-1800/58-24||24pcs||200L||1.83m2||125KGS||1830*2170*1600||27 / 55 / 67|
|470-1800/58-30||30pcs||250L||2.29m2||156KGS||1830*2650*1600||23 / 46 / 55|
Lead Time /
|Delivery Details||15 days when we get your advanced payment|
|Packing Info||exported standard cartons|
|Target Market(s)||Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe|
1. What is your Delivery Time?
Full container order:15days.
2. What is your Guarantee Time?
6 years; Provide you with some accessories, they are free for you.
3. Can you accept OEM and ODM ?
YES, printing your LOGO on the product and package, it's free.
4. What is your payment term?
We accept T/T or L/C, Western Union and Paypal.
5. What is your MOQ?
6. Low do you pack?
LCL order in plywood case
Full container order in high quality export carton
7. What is your FOB port?
We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.
8. What is your monthly production capacity?
9. What is your shipping term?
10. Do you any additional services?
We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.
And we can offer logo design, Products Advertising Design etc services free.
