Product Details:
|
| Rated Voltage: | 220V/110V | Application: | Solar Water Heater Controller |
|---|---|---|---|
| Model: | SR609C | Color: | Gray |
| Temperature Range: | 0～99℃ | Electromagnetic Valve: | DC 12V AC 220V |
| Highlight: | solar hot water controller,solar thermal controller |
||

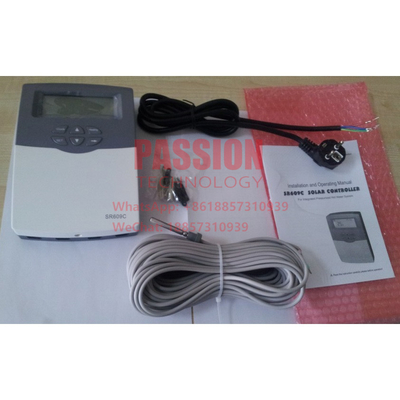

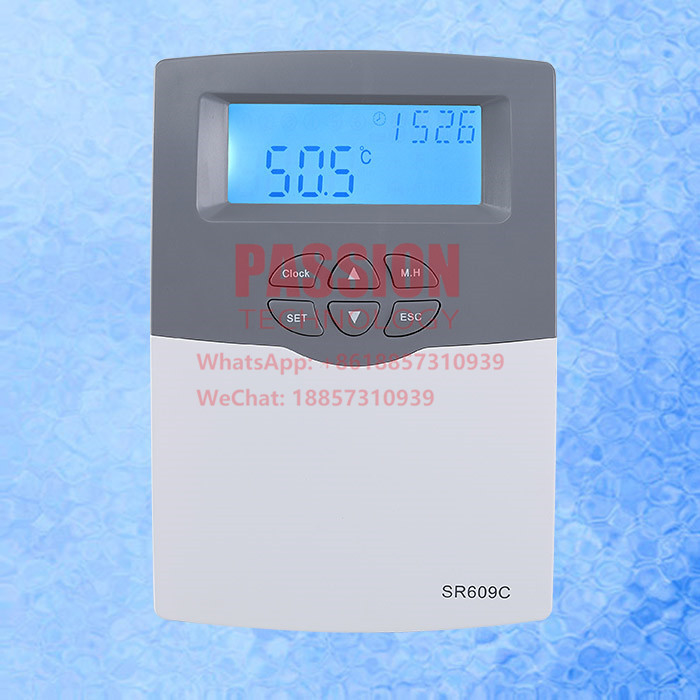

SR609C Intelligent Controller for Pressure Solar Thermal Water Heater
Introduction:
Suitable for integrated un-pressurized solar system
Main Technical data:
1 Dimension: 210 mm x 145mm x 40mm
2 Self power consumption: <3W
3 Measuring accuracy of temperature: ±2℃
4 Temperature range of measurement: 0～99℃
5 Maximum power of controlled pump: ≤600W
6 Power of accompanied electrical heating wire: ≤800W
7 Power of auxiliary electrical booster ≤2000W ( standard collocation),
≤3000W (not standard selection available )
8 Electromagnetic valve parameter: DC 12V AC 220V
pressurized valve and un-pressurized valve are available for selection
※ operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa
suitable for providing water directly
※operation pressure of un-pressurized valve: 0.0Mpa
connected with water tank or low pressure water providing
Main Functions:
1, Time display
2, Water temperature display
3, Water level display
4, Auto mode
5, Water level pre-setup
6, Manual water loading
7, Temperature controlled water loading
8, Timing water loading
9, Water loading when tank is lack of water
10,Compulsive water loading
11,Increasing Water pressure during water is loaded.
12,Manual heating
13,Timing heating
14,Hot water circulation
15,Hot water pipe insulation
16,Low pressure protection
17,Collector tube protection
18,Memory protection when power is failure.
Specifications:
| Model | PT-H-10 | PT-H-15 | PT-H-18 | PT-H-20 | PT-H-24 | PT-H-25 | PT-H-30 |
| Storage Tank | 100L | 150L | 180L | 200L | 240L | 250L | 300L |
| Inner Tank | Stainless Steel SUS304 2B/SUS316L | ||||||
| Outer Tank | Colored Steel( Sliver/White )/SUS201/SUS304 2B/SUS316L | ||||||
| Insulation Layer | High Density Polyurethane Foaming | ||||||
| Tube QTY(PCS) | 10 | 15 | 18 | 20 | 24 | 25 | 30 |
| Dustproof Rubber | EPDM | ||||||
| Dsily Heat Gain | 8.5MJ/m² | ||||||
| Work Pressure | 0.6MPa | ||||||
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3; | ||||||
| Heat Pipe | Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa; | ||||||
| Bracket | Galvanized Steel with Plastic Coating in Black color/Aluminum Alloy/SUS201/SUS3042B/SUS316L, 0/20/30/45 degrees | ||||||
| Contour Aperture Area | 1.23m² | 1.84m² | 2.22m² | 2.47m² | 2.96m² | 3.08m² | 3.70m² |
| Aperture Area | 0.95m² | 1.42m² | 1.70m² | 1.89m² | 2.27m² | 2.36m² | 2.83m² |
| Absorption Area | 0.82m² | 1.22m2 | 1.46m2 | 1.62m2 | 1.96m² | 2.04m² | 2.43m² |
| Accessories(Optional) | T/P Valve,Electrical Heater & Magnesuim Bar | ||||||
| OEM Service: | Logo painting on products and package is for free (20FT,40FT,40HQ) | ||||||
System Working Pricinple:
