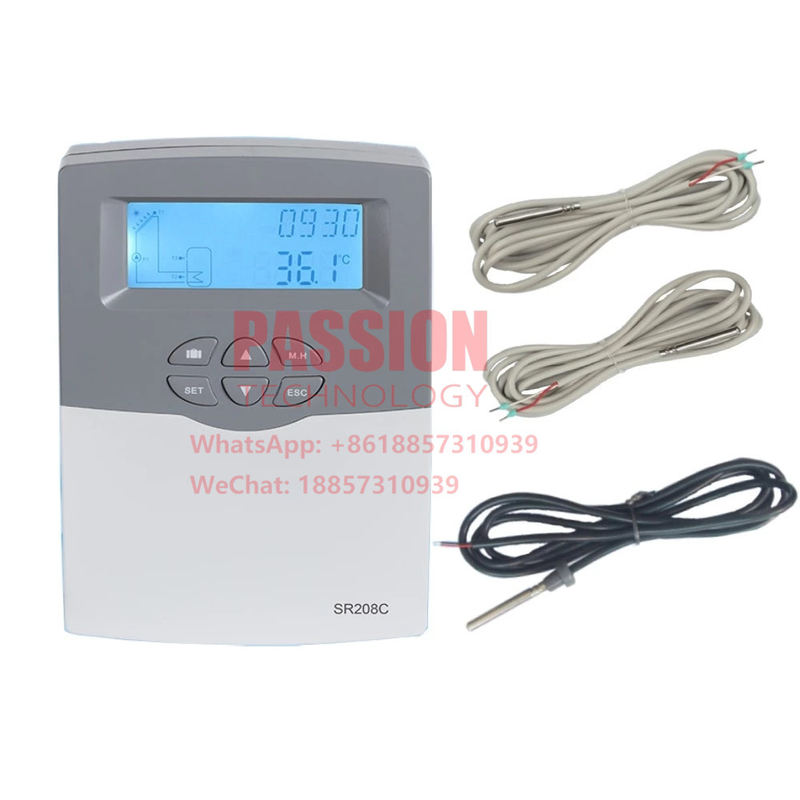

SR208C Automatical Controller Split Pressure Solar Water Heater WIFI Controller

SR208C Automatical Controller Split Pressure Solar Water Heater WIFI Controller

Introduce:

A BRIEF DESCRIPTION

Temperature measurement accuracy:0.1
Conventional/HE pump both available on

APPLICATIONS CAPACITY
Max.number of collectors:1
Max.number of storage tanks:1
Max.number of relays:2
Max.number of sensors:3
Max.number of visualization application system:1

TECHNICAL DATA
Size of Controller:178mm x120mm x43mm
Power supply:AC100-240V,50-60Hz. .
Power consumption: < 2.5W
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 1 pump possible to be connected, output power < 300W .
Suitable power of HK (backup heating): 1pc ˂500W .
Inputs: 3 sensors,
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC),
2pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs:2 relays, for circulation pump and backup heating
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP41

Main technical data:

Size of Controller:178mm x120mm x43mm
Power supply:AC100-240V50-60Hz. .
Power consumption: < 2.5W
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 1 pump possible to be connected output power < 300W .
Suitable power of HK (backup heating): 1pc ˂500W .
Inputs: 3 sensors
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
2pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:2 relays for circulation pump and backup heating
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP41

Main functions:

AH Afterheating/thermostat
Password protection
LOAD Tank heating
OCEM Collector emergency shutdown
OCCO Collector cooling
OCMI Collector minimum temperature
OCFR Antifreeze
OTCO Tube collector
PUMP Pump control mode
OSYC System cooling
OSTC Tank cooling
MAN Manual mode
BLPR Blocking protection
OTDI Thermal Disinfection
UNIT C-F switch
BEEP beeper fault warning
Memory function
Screen protection
Trouble checking

System:

Holiday function

The holiday function is used for operating the system when no water consumption is expected, e. g.

during a holiday absence. This function cools down the system in order to reduce the thermal

load.When bottom temperature of tank below down 35oC,the solar pump is deactivate.Manual of SR208C intelligent controller

Activate/deactivate this function:

►Press “ ” button for 3 seconds, “HDAY 05” displays on the screen

►Press “▲/▼”, to adjust holiday’s days, adjustable range 0-99 days

►Press “ ” for 3 seconds again, to adjust holiday’s days to 0,

►Press “ESC” to exit, holiday function is closed

Note:When you return from holiday, please deactivate this function in time.

WIFI Remote Control is available for SR208C WIFI only
