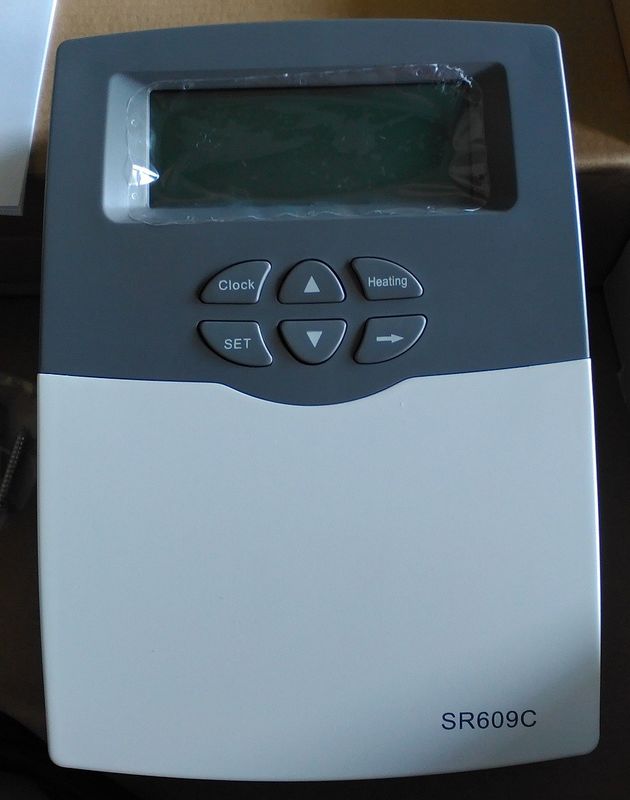

SR609C Pressurized Solar Water Heater Controller Intelligent Control System

SR609C Pressurized Solar Water Heater Controller Intelligent Control System
SR609C Pressurized Solar Water Heater Controller Intelligent Control System SR609C Pressurized Solar Water Heater Controller Intelligent Control System SR609C Pressurized Solar Water Heater Controller Intelligent Control System

Large Image :  SR609C Pressurized Solar Water Heater Controller Intelligent Control System

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: SR609C
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 3 working days
Payment Terms: L/C, T/T
Supply Ability: 2000units/day

SR609C Pressurized Solar Water Heater Controller Intelligent Control System

Description
Rated Voltage: 220V/110V Application: Solar Water Heater Controller
Model: SR609C Color: Gray
Temperature Range: 0~99℃ Electromagnetic Valve: DC 12V AC 220V
High Light:

solar hot water controller

,

solar thermal controller

,

0.8Mpa Solar Water Heater Controller

SR609C Pressurized Solar Water Heater Controller Intelligent Control System



Main Technical data:

1 Dimension: 210 mm x 145mm x 40mm
2 Self power consumption: <3W
3 Measuring accuracy of temperature: ±2℃
4 Temperature range of measurement: 0~99℃
5 Maximum power of controlled pump: ≤600W
6 Power of accompanied electrical heating wire: ≤800W
7 Power of auxiliary electrical booster ≤2000W ( standard collocation),
≤3000W (not standard selection available )
8 Electromagnetic valve parameter: DC 12V AC 220V

pressurized valve and un-pressurized valve are available for selection
※ operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa
suitable for providing water directly
※ operation pressure of un-pressurized valve: 0.0Mpa
connected with water tank or low pressure water providing



Main Functions:

1, Time display
2, Water temperature display
3, Water level display
4, Auto mode
5, Water level pre-setup
6, Manual water loading
7, Temperature controlled water loading
8, Timing water loading
9, Water loading when tank is lack of water
10, Compulsive water loading
11, Increasing Water pressure during water is loaded.
12, Manual heating
13, Timing heating
14, Hot water circulation
15, Hot water pipe insulation
16, Low pressure protection
17, Collector tube protection
18, Memory protection when power is failure



Terminal layout of controller for electrical heater of 1500W

SR609C Pressurized Solar Water Heater Controller Intelligent Control System 0



FU1: the fuse of controller, AC250V/0.5A
Power terminal N, L: 10A, for power connection,

L: live wire, N: zero wire, protective wire, please ensures to connect to ground.


Output ports
H1: Designed for electrical heater, electromagnetic relay, max. power is 1500W,
R1: Designed for anti-freezing heating cables, Electromagnetic relay, max. power is 500W
Note:If power supply 100~130V/ AC 50/60Hz,Maximum power of H1:750W ;Maximum power output of R1:250W



Input ports
Input port T1:for NTC10K, B=3950, ≤135oC sensor (PVC cable ≤105oC) designed for measuring the temperature of tank.
Input port T2: for NTC10K, B=3950, ≤135oC sensor (PVC cable ≤105oC),Optional.



Terminal layout of controller for electrical heater of 3000W

SR609C Pressurized Solar Water Heater Controller Intelligent Control System 1

Power terminal N, L: 20A, for power connection,

L: live wire, N: zero wire, protective wire, please make sure to connect to ground.


Output ports
H1: Designed for electrical heater, electromagnetic relay, max. power is 3000W,
R1: Designed for anti-freezing heating cables, Electromagnetic relay, max. power is 500W



Note:

If power supply 100~130V/ AC 50/60Hz,

Maximum power output of H1:1500W ;

Maximum power output of R1:250W


Input ports
Input port T1:for NTC10K, B=3950, ≤135oC sensor (PVC cable ≤105oC) designed for measuring the temperature of tank.
Input port T2: for NTC10K, B=3950, ≤135oC sensor (PVC cable ≤105oC),Optional.



Note: sensor T2 is not listed in the standard delivery package, self-purchase if need.


Advice regarding the installation of temperature sensors:
► Only original factory equipped NTC10K,B=3950 temperature sensors are approved for using with tank,

it is equipped with 20m PVC cable, and the cable is temperature resistant up to 105C,

connect the temperature sensors to the corresponding terminals with either polarity.
► All sensor cables carry low voltage, and to avoid inductive effects,

must not be laid close to 230 volt or 400 volt cables (minimum separation of 100mm).
► Sensor cables may be extended to a maximum length of ca. 100 meter,

when cable’s length is up to 50m, and then 0.75mm2 cable should be used.

When cable’s length is up to 100m, and then 1.5mm2 cables should be used.



SR609C Pressurized Solar Water Heater Controller Intelligent Control System 2SR609C Pressurized Solar Water Heater Controller Intelligent Control System 3SR609C Pressurized Solar Water Heater Controller Intelligent Control System 4
