|Capacity:||150L||Working Pressure:||6 Bar|
|Warranty:||6 Years||Testing Pressure:||10 Bar|
|Connection Type:||Direct Plug||Collector:||Flat Plate|
|Structure:||Integrated||Inner Tank:||Stainless Steel|
flat panel solar water heater,
rooftop solar water heater

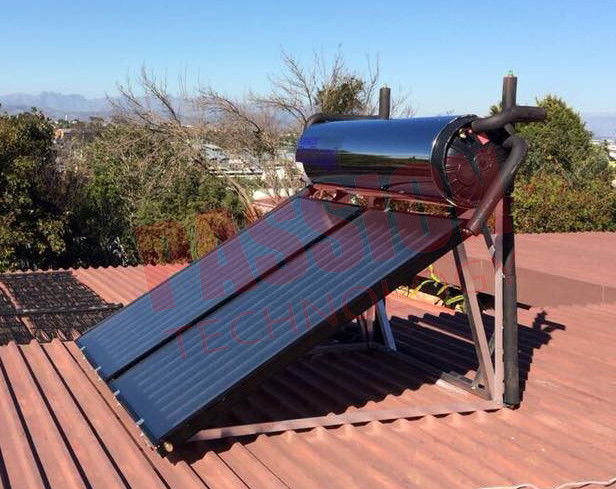

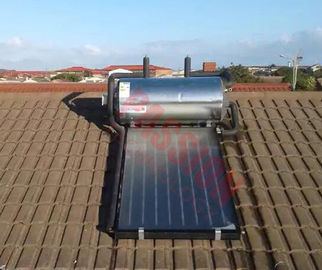

Home Thermal Flat Plate Solar Geysers Hot Water Heater Closed Circulation
We supply all kinds of solar water heaters, solar thermal collectors,
including vacuum tube series and flat plate solar panels series.
Our professional group will make the best quality solar heating system and solutions for your domestic house, hotel, hospital,swimming pool or industry plants project.
Specifications for Pressurized flat plate Solar water heater:
Flat Plate Solar Water Heater Features description
The split flat plate solar water heater composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces.
Flat Plate Solar Collector:
1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.
2) Three high-tech methods of coating (Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your upper needs
3) Ultrasonic technology ensures seamless jointing of copper core and pipes
4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed
Pressurized Water Tank
1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding tech ensures long lifespan (15 years) with good pressure bearing.
2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements.
3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly
4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable
5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating.
Integrated Flat Plate Solar Panel Solar Water Heater
|Spec. (mm)||2000*1060*70 2000*1060*80 2000*1060*90|
|Cover Glass||Tempered/ Tempered woven / tempered low-iron woven glass|
|Core||All red copper core & pipes|
|Insulation||Glass wool + benzene plate/ Glass wool + polyurethane foam|
|Water tank||Capacity||100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L|
|Inner tank||Food-grade stainless steel SUS304-2B|
|Copper coil||All red copper Φ12 X 1.0mm|
|Insulation||Imported polyurethane integrated foam-forming 50mm|
|Tank shell||Color steel plate / Stainless steel|
|Bracket||Spec.(mm)||1.2 ~ 1.5mm in thickness|
|Material||Hot-dip galvanized steel / Stainless steel / Aluminum alloy|
|Accessories||Workstation, Electrical heater, Magnesium rods, T&P valve|
|Tilt angle||0°~ 90°|
Flat Plate Solar Water Heater Workstation System:
1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve
2) More intelligent operation, when temperature discrepancy between collector and water tank reaches set value, the controller shall start the circulation pump automatically for heat exchange to raise the water temperature in storage tank
1) Electrical heater, as an auxiliary heating element in case of raining or snowing so as to supply hot water continuously
2) Magnesium rods, soften hard water so as to protect system from water scale effectively
Three-year international responsibility for integrated system and 15 years for vacuum tubes due to original quality problems
