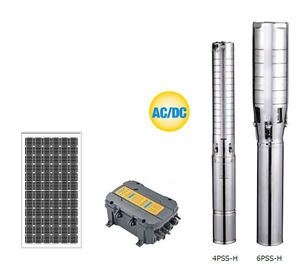

4PSS-H/6PSS-H Series AC/DC HYBIRD Stainless Steel Impeller Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump

AC/DC HYBIRD SOLAR PUMP

1. Brushless permanent magnetic motor, efficiency improved by 20%-40%,

frequency conversion and controller outside

2. Soft start running, make motor life longer

3. Powered by AC/DC ( AC power include: grid electricity and generator electricity;

DC power include: solar panel and battery)

4. Supply voltage range: 90Vdc-460Vdc( Solar panel VOC voltage); 90Vac-240Vac

at 50/60Hz.

5. Reverse protection

6. MPPT built inside

7. Over current protection

8. Locked rotor protection

9. Lost phase protection

10. Low water level sensor protection

11. High water level sensor protection

12. AC/DC input option by manual or automatic

13. Remote control system (option)

Material Of Pump

◎ Outlet: 304 stainless steel

◎ Pump head: 304 stainless steel

◎ Pump body: 304 stainless steel

◎ Impeller: 304 stainless steel

◎ Motor: Permanent magnet dc brushless motor

◎ Cable: 2M

◎ Oil Cooling

◎ MPPT function controller

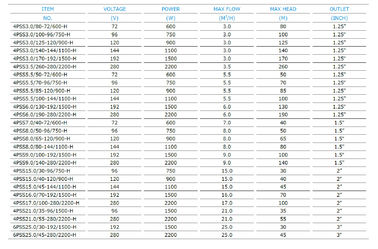

Model Analysis

4PSS3.0/80-72/600-H

4:4 inch pump body dimension

PSS: Solar pump centrifugal model

3.5: Max flow

40: Max head

24: Pump voltage

400: Pump power

H: AC/DC Hybird

Product Features

◎ Max head is 260M. max flow is 25 M3/H

◎ High lift and big flow, fit for Irrigation

◎ Warranty: 2 years
