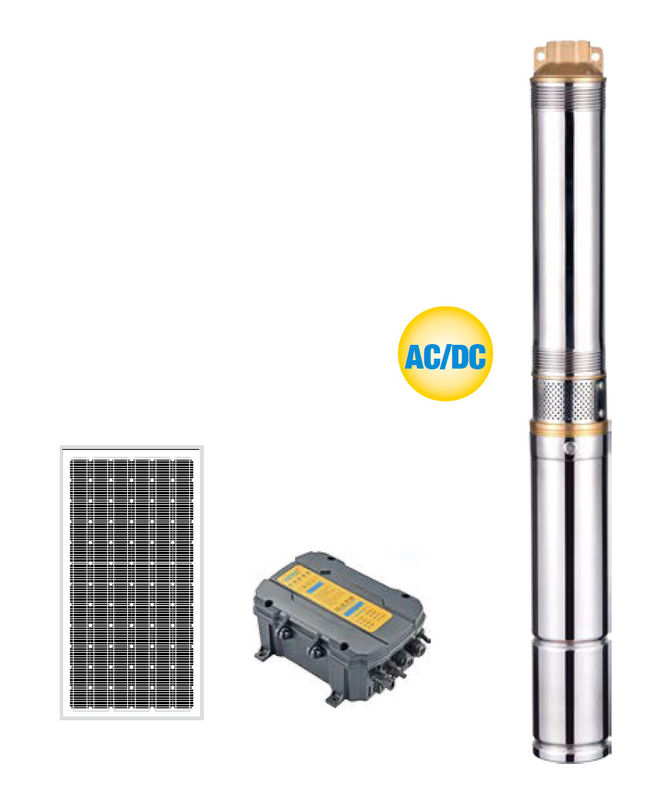

AC / DC HYBIRD Plastic Impeller Solar Water Pumping System , Home Water Pump

AC / DC HYBIRD Plastic Impeller Solar Water Pumping System , Home Water Pump

3LSC-H Series AC/DC HYBIRD Plastic Impeller Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump

AC/DC HYBIRD SOLAR PUMP

1. Brushless permanent magnetic motor, efficiency improved by 20%-40%,

frequency conversion and controller outside

2. Soft start running, make motor life longer

3. Powered by AC/DC ( AC power include: grid electricity and generator electricity;

DC power include: solar panel and battery)

4. Supply voltage range: 90Vdc-460Vdc( Solar panel VOC voltage); 90Vac-240Vac

at 50/60Hz.

5. Reverse protection

6. MPPT built inside

7. Over current protection

8. Locked rotor protection

9. Lost phase protection

10. Low water level sensor protection

11. High water level sensor protection

12. AC/DC input option by manual or automatic

13. Remote control system (option)

Material Of Pump

◎ Outlet: 201 stainless steel

◎ Pump head: 201 stainless steel

◎ Pump body: 201 stainless steel

◎ Impeller: Plastic impeller

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 2M

◎ Oil cooling

◎ MPPT function controller

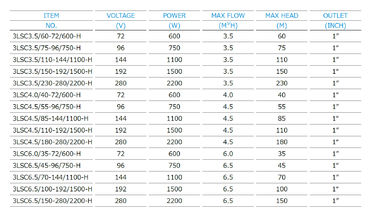

Model Analysis

3LSC3.5/60-72/600-H

3:3 inch pump body dimension

LSC: LARENS solar pump centrifugal model

3.5: Max flow

60: Max head

72: Pump voltage

600: Pump power

H: AC/DC Hybird

Product Features

◎ Only use it for clean water

◎ Max head is 230M. max flow is 6.5M3/H

◎ Fit for small farm, livestock

◎ Warranty: 2 years
