|Flat Plate:||Blue Titanium||Principle:||Pressurized|
|Collector:||Flat Plate||Inner Tank:||Stainless Steel 316|
|Bracket:||Stainless Steel 201 0/20/30/45 Degrees||Material:||Copper Aluminum|
flat panel solar water heater,
rooftop solar water heater

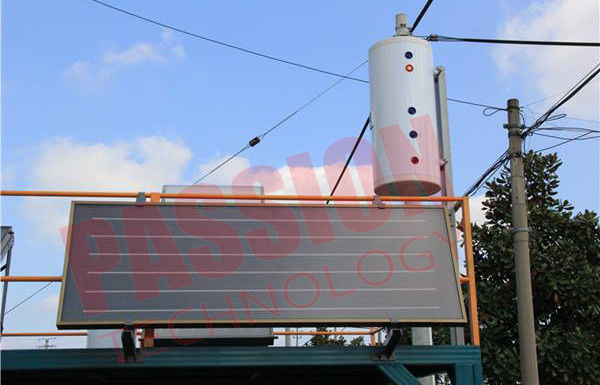

300L Integrated Pressurized Copper Aluminum Blue Titanium Flat Plate Solar Water Heater
Flat Plate Solar Water Heater Description:
Flat plate Solar Water Heater is one of common Solar Water Heater for solar water-heating system in homes and solar space heating.
Flat plate Solar Water Heater provide quality hot water with its new solar energy efficient flat plate design.This glazed collector includes a selective coating to maximize the solar heat absorption ,weather resistant aluminum framing and interior fiberglass insulation for increased efficiency
Flat Plate Solar Water Heater Features:
1.U sing patent advanced coating technology with high efficiency performance.
2. High strength aluminum-alloy structure with surface varnish baking
3. High visual shape ,easy installation ,maintenance free
4. Pressurized designing ,operate with pressure up to 1 Mpa
5. Can be combined with existing energy source
1. 16 years sale experience
2. Certificate:CE,ISO9001-2008,SRCC,Solar keymark,SGS,CCC
3. Life span:Approximate to 15 years
4. We can customize according to customers' requirement
5. Warranty time :6 years
LCL( Less than Container Load ):Wooden case
FCL( Full Container Load ):Export carton
Usually, it is 10 Working days after receiving deposit or original L/C.
|Circulation Type||Direct / Open Loop (Active)|
|Housing Material||color steel|
|Certification||CE, SRCC,ISO9001-2008, CCC, Solar keymark, SGS|
|Place of Origin||Zhejiang, China (Mainland)|
|Heat preservation||More than 72 hours|
|Warranty time||6 years|
Flat Plate Solar Water Heater Technical Data :
|Material||Tempered textured glass|
|Aperture area||2 m²|
|Surface coating||Black chromed/blue sputtered|
|Construction type||Fin&tube(ultrasonic welding)|
|Header mateial||Copper T2|
|Header tube size(L*W*T)||1886mm*Φ10mm*0.458pcs|
|insulation material||Fibie glass Insulation(blacking backing)|
|insulation thickness||Back 25mm|
|Conductivity(w/mk)||≤0.048w/m.k under test temperature 70°C|
|Back plate||Galvanized steel plate 0.3mm|
|Max operation temperature||200°C|
|Max. working temperature||120°C|
|Max. working pressure||10bar|
|Daily output colume||105˜300L|
- Can you provide FREE SAMPLES?
Sorry,you have to pay it first,but we'll cut the costs in your next order(20GP).
- Can you accept OED/ODM?
Yes,we can paint the logo on the product and package if you need,it is free for containers.
- What is your GUARANTEE TIME?
10 years for vacuum tubes,5 years for frame,3 years for water tank,1 year for other parts.
- What is your PAYMENT TERM?
T/T , L/C
- Do you have other ADDITIONAL SERVICE?
We provide free spares according to your order, such as vacuum tubes,tube holders,dust rings,
seal rings,screws etc.
Also,we can provide logo design free if you have an order at least 20 feet container.
Contact Person: Passionsolar
