1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector
1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector

Large Image :  1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 30tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector

Description
Tubes: 30 Tubes Reflector: CPC Reflector
Frame: Aluminum Alloy Installation: Pitched Roof
Heat Pipe: 24mm Condenser Copper Structure: Heat Pipe
Angle Of Bracket: 30 Degree Application: Shower
High Light:

heat pipe vacuum tube solar collector

,

pressurized solar collector

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector



Heat pipe solar collector


1. Vacuum Tube: borosilicate glass 3.3
2. Tube Coating: AL-N/SS/Cu (Tri-elements)
3. Tube Dimension : dia58mm*1800mm
4. heat pipe: 14mm diameter heat pipe tip. length:1720mm
5. Manifold casing material: aluminum alloy
6. Heat channel:TU2 copper
7. Insulating layer:polyurethane and mineral wool
8. Frame: 2.0mm aluminum alloy
9. Anti-Freeze: -35C
The Collector are with Solar Keymark, SRCC, CCC, ISO9001:2000 certificates.



Water Tank:

1000L-10000L.



Working Principle



high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.

The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.

The heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser.

In active system, a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.

The cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.



Technical data



Model PT-C-15 PT-C-18 PT-C-20 PT-C-24 PT-C-25 PT-C-30
Tube QTY(PCS) 15 18 20 24 25 30
Three Target Vacuum Tube Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3;
Heat Pipe Condesor: φ14/φ24*70mm ; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa;
Outer Shell/Bracket Alluminum Alloy,Silver
Insulation Layer Rock wool
Dustproof Rubber EPDM
Dsily Heat Gain 8.5MJ/m²
Work Pressure 0.6MPa
Inlet/outlet 22mm/3/4"
Tailstock ABS
Temperature 250 °С
Contour Aperture Area 2.32m² 2.75m² 3.10m² 3.64m² 3.78m² 4.52m²
Aperture Area 1.43m² 1.70m² 1.89m² 2.27m² 2.36m² 2.83m²
Absorption Area 1.22m² 1.46m² 1.62m² 1.95m² 2.04m² 2.43m²
20'FT 112 92 89 72 76 62
40'FT 240 195 190 154 160 128
40'HQ 292 240 232 188 196 163
OEM Service: Logo painting on products and package is for free (20FT,40FT,40HQ)





Our service



We have both vacuum tubes factory and water tank factory for more than 8 years.

We provide 6 years Warranty for the whole system.

Keep the delivery time exact.

Your inquiry will be replied within 12 hours.

We offer you professional service with fluent English.

Keep the bulk production as the samples in high quality.

Freight forwarder: faster, safer and convenient.

Quality : we have QC in each process.



Packaging & Delivery



Packaging Details: Export carton for full container.

Delivery Detail: 7 days after receiving the deposit.



Warranty



6 years international responsibility for heat pipe solar collector and 15 years for vacuum tubes due to original quality problems.

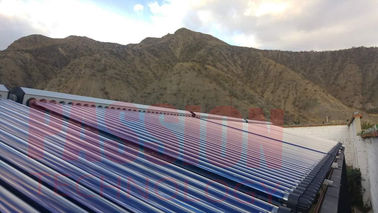

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 0

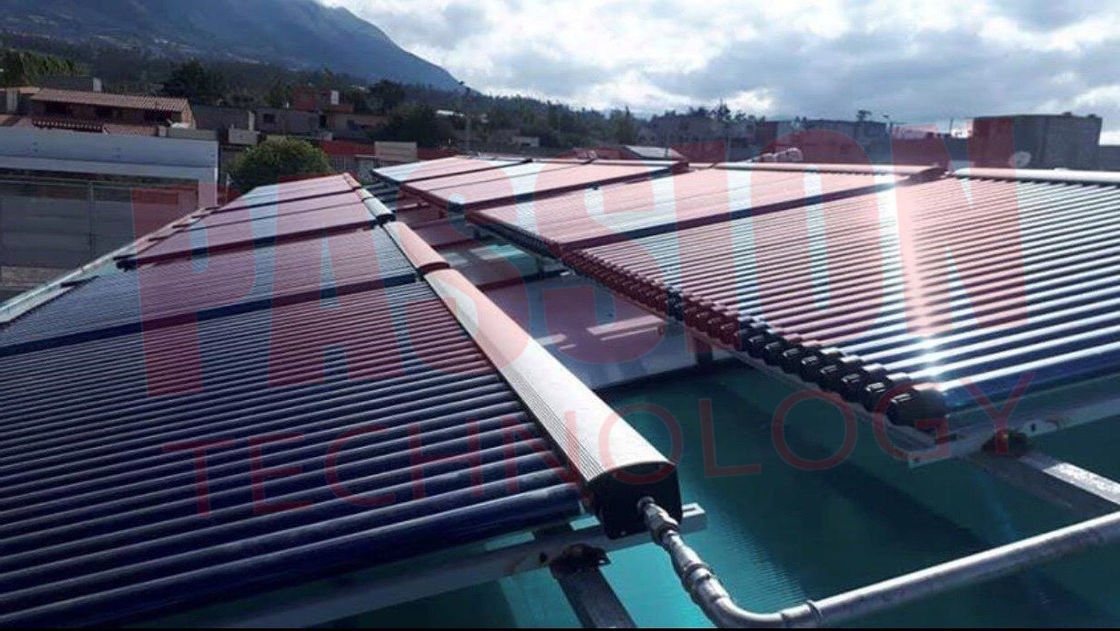

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 1

1000L-10000L Pool Hotel Solar Heating Solution Pressurized Heat Pipe Solar Collector 2



PDF Catalogue of Heat Pipe Solar Collector.

PT-C Heat Pipe Solar Collector.pdf
