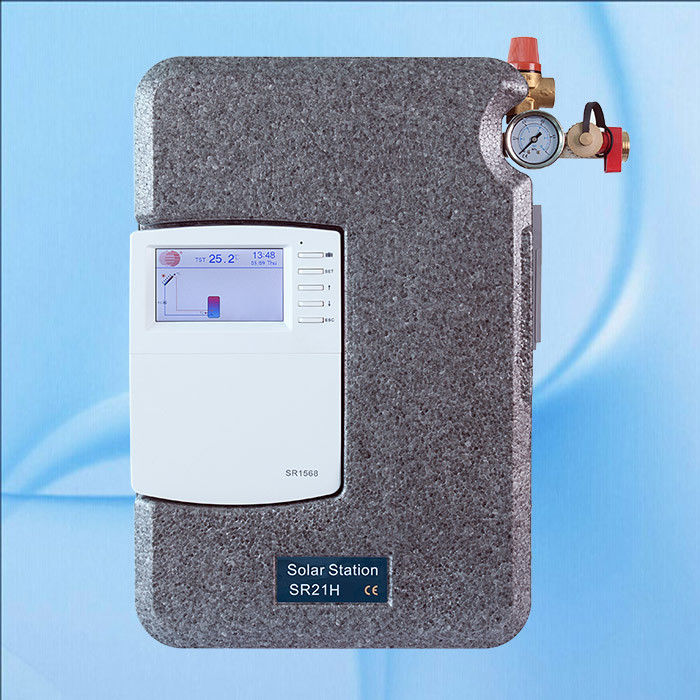

SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater

SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater
SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater

Large Image :  SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: SR21H-1568
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 3 working days
Payment Terms: L/C, T/T
Supply Ability: 10000units/month

SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater

Description
Rated Voltage: 220V/110V Application: Solar Pump Station
Model: SR21H-1568 Pump: WILO
Using: Split Solar Water Heater System Colour: Black
Pipe: Copper Accessories: Controller And Pump
High Light:

pump station controller

,

solar working station

SR21H-1568 Solar Thermal Pump Station for Pressurized Solar Water Heater


 1. Solar pump station with integrated controller
 Integrated solar controller ( model:SR1568/SR658)
 Outstanding design
 Safety assembly with safety valve
 High-Quality casing for reduce heat loses
 Flow rate check


1.1 Scope of delivery
 1* solar pump station
 1* integrated solar controller
 1* wall mounting bracket
 1* accessory bag
 1* manual


1.2 About this manual
This solar pump station is a preinstalled and leak-tested group of fitting for transferring
heat from the collector to the store. It contains important fittings and safety devices for
the operation of the solar thermal system:
 Ball valves in flow and return in combination with check valves to prevent gravity
circulation.
 Air stopper for manual bleeding of the solar thermal system
 Flow rate check for displaying the flow rate
 Manometer for displaying the system pressure
 Safety valve to prevent inadmissible overpressure
 Flushing and filling connector for flushing, filling and emptying the solar thermal
system.



Station dimensions
 Height ( with insulation): 450mm
 Width (with insulation): 300mm
 Depth (with insulation): 158mm
 Distance center: 1600mm
 Distance axis/wall: 55mm
 Pipe connections: 3/4’ IT( inner
thread)
 Connection for expansion vessel
set: 3/4’ET,
 Outlet safety valve: 1/2 IT



Specification of components
1) Non-return valve: opening pressure 200mm H 2 O
2) Collector return connection: 3/4 female
thread
3) Safety valve: 6bar
4) Filling valve connection
5) Connection of expansion vessel: 3/4 male
thread
6) Manometer: 0-6bar
7) Sensor on tank return pipe: NTC10K,
B=3950
8) Circuit pump
9) Drainage valve connection
10) Grundfos flow rotor VFS or fixed flow meter
11) Tank return pipe connection (from tank) : 3/4 male thread
12) Tank flow pipe connection( to tank) : 3/4 female thread (no this component in single
pipe pump station SR11H)
13) Integrated solar controller (different models available)
14) Bubble air vent valve (no this component in single pipe pump station SR11H)
15) Temperature sensor of collector flow: NTC10K, B=3950 (no this component in
single pipe pump station SR11H)
16) Collector flow connection (to collector):3/4’ IT female thread (no this component in
single pipe pump station SR11H)


Material of pump station:
 Fitting: brass
 Seals: PTFE
 Insulation: EPP, λ= 0.041W/ (m.K)



Technical Data:
 Max. permitted pressure: 6bar
 Max. permitted operating temperature: 120 o C
 Grundfos flow rotor VFS: 0.1-20L/Min
 Mechanical flow rate: 2-8L/Min





Flat Panel Split Solar Water Heater

with Double Coils PTS-F2



Flat Panel Split Solar Water Heater
with Double Coils PTS-F2
Model PTS-F2-15 PTS-F2-20 PTS-F2-25 PTS-F2-30 PTS-F2-40 PTS-F2-50 PTS-F2-100
Flat Panel Solar Collector Core material Copper
Coating Copper aluminum cover coating of Blue Titanium Absorption rate: α=0.95 Reflection rate ε=0.04.
Base plate Marine-grade H3004 Aluminum, toughnessH32 Thickness 0.7mm
Glass of panel Special glass for panel With ANS1297-1-1975, BS6206A and JIS R3206 standards; toughness with AS2208-1978 and federal standards of United States.
Panel Insulation Bottom with fiberglass insulation ,Thickness 60mm,Density 20kg/m³; Side-thickness insulation:13mm; Density 23kg/m³; Thermal properties: R1.0 Thermal conductivity : 0.059W/m.
Quantity (PCS) 1 1 2 2 3 3 6
Water
Tank
Capacity 150L 200L 250L 300L 400L 500L 1000L
Top Copper Coil (mm*M) Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*20 Φ19*30
Bottom Copper Coil (mm*M) Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*25 Φ16*30 Φ19*40
Polyurethane Foaming (mm) 55 50 50 50 60 60 100
Outer Tank Color Steel Plate/ Enamal White
Φ470/0.5 Φ550/0.5 Φ580/0.5 Φ580/0.5 Φ700/0.5 Φ700/0.5 Φ1000/0.5
Inner Tank SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar
Φ360/1.2 Φ450/1.5 Φ480/1.5 Φ480/1.5 Φ580*2.0 Φ580*2.0 Φ800/2.5
Electrical Heater 1500W 1500W 2000W 2000W 2000W 2000W 4000W
Working Station SR961S (Including controler & WILO PUMP)
Expansion Tank 8L 8L 8L 8L 12L 12L 24L



Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2

Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2
Model PTS-H2-15 PTS-H2-20 PTS-H2-25 PTS-H2-30 PTS-H2-40 PTS-H2-50 PTS-H2-100
Heat Pipe Solar Collector Tubes (PCS) 15 20 25 30 40 50 100
Three Target Vacuum Tube Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3;
Heat Pipe Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa;
Outer Shell/Bracket - Alluminum Alloy Insulation Layer - Rock wool Dustproof Rubber - EPDM Dsily Heat Gain - 8.5MJ/m²
Inlet/outlet - 22mm/3/4" Tailstock - ABS Temperature - 250 °С Work Pressure - 0.6MPa
Contour Area 2.32m² 3.10m² 3.78m² 4.52m² 6.20m² 7.56m² 15.12m²
Aperture Area 1.43m² 1.89m² 2.36m² 2.83m² 3.8m² 4.72m² 9.44m²
Absorption Area 1.22m² 1.62m² 2.04m² 2.43m² 3.24m² 4.06m² 8.16m²
Quantity (PCS) 15tubes*1 20tubes*1 25tubes*1 30tubes*1 20tubes*2 25tubes*2 25tubes*4
Water
Tank
Capacity 150L 200L 250L 300L 400L 500L 1000L
Top Copper Coil (mm*M) Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*20 Φ19*30
Bottom Copper Coil (mm*M) Φ16*15 Φ16*15 Φ16*15 Φ16*15 Φ16*25 Φ16*30 Φ19*40
Polyurethane Foaming (mm) 55 50 50 50 60 60 100
Outer Tank Color Steel Plate/ Enamal White
Φ470/0.5 Φ550/0.5 Φ580/0.5 Φ580/0.5 Φ700/0.5 Φ700/0.5 Φ1000/0.5
Inner Tank SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar
Φ360/1.2 Φ450/1.5 Φ480/1.5 Φ480/1.5 Φ580*2.0 Φ580*2.0 Φ800/2.5
Electrical Heater 1500W 1500W 2000W 2000W 2000W 2000W 4000W
Working Station SR961S (Including controler & WILO PUMP)
Expansion Tank 8L 8L 8L 8L 12L 12L 24L
