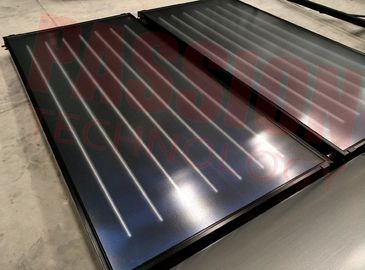

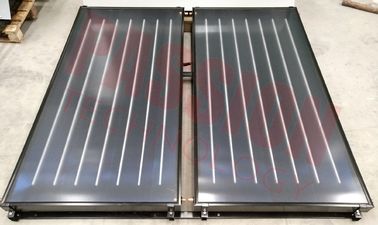

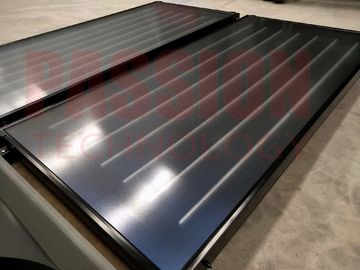

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater
Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater

Large Image :  Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: PT-F-C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000units/month

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater

Description
Absorber Coating: Blue Titanium Collector: Flat Plate
Test Pressure: 1.2Mpa Absorber Material: Aluminum Plate
Header Pipe: Copper Use: Hotel/Resort
Cover Material: Wove Toughened Glass Frame: Anodised Aluminum Alloy
High Light:

Blue Titanium Solar Water Heating System

,

Alu Plate Flat Plate Solar Collector

,

Alu Plate Solar Water Heating System

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater



Specification of flat plate solar collector



1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.

2) Tinox blue titanium /black chrome coating/oxidation coating/ titanium-coating have very high absoption rate to ensure the high efficiency.

3) Whole-plate ultrasonic welding technology makes the flat plate solar collector more beautiful, efficient and durable.

4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.



Application



Our flat plate solar thermal collector is suitable for residential or commercial solar water heating projects, such as hot water for real estate, hotel, factory hospital, school, swimming pool, central heating, floor heating, etc.



Specification



Model PT-F-BT
Data
Dimension LxWxH (mm) 2000*1000*80 2000*1250*80 2000*1500*80
Gross Area (m2 ) 2.00 2.50 3.00
Absorber Area (m2 ) 1.9 2.38 2.85
Number of covers 1
Cover Material Low iron tempered textured glass
Cover Thickness(mm) 3.2
Cover Transmission >91.7%
Absorber
Absorber material Aluminium Plate
Absorber coating Blue Titanium
Welding Ultrasonic welding
Construction Type Grid type
Header Material Copper TP2
Header pipe Red copper/ Φ22*0.6*2 PCS
Riser Material Copper TP2/CA1220
Riser pipe Red copper Φ8/10*0.5*7 PCS Red copper Φ8/Φ10*0.5*9 PCS Red copper Φ8/Φ10*0.5*11 PCS
Work Pressure 0.6Mpa
Test pressure 1.2Mpa
Thermal Insulation
Insulation Material Fiberglass
Insulation Thickness 40mm
Casing
Frame Aluminium alloy
Frame Colour Silver/Black
Back Plate Galvanized steel
Sealing Gasket EPDM
Loading Quantity
Quantity (20FT container) 150PCS 120PCS 95PCS



Packaging & Shipping



Packaging Details: Export strong corrugated carton.

Delivery Detail: Within 7 - 10 days for container order quantity upon confirmed invoice or sales contract.



FAQ



1. What is your Delivery Time?

LCL order:10days.

Full container order:15days.

2. What is your Guarantee Time?

6 years; Provide you with some accessories, they are free for you.

3. Can you accept OEM and ODM ?

YES, printing your LOGO on the product and package, it's free.

4. What is your payment term?

We accept T/T or L/C, Western Union and Paypal.

5. What is your MOQ?

4 sets

6. How do you pack?

LCL order in plywood case

Full container order in high quality export carton

7. What is your FOB port?

We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.

8. What is your monthly production capacity?

1000 sets

9. What is your shipping term?

By sea/Air/Rail/Truck

10. Do you any additional services?

YES!

We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.

And we can offer logo design, Products Advertising Design etc services free.

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 0Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 1Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 2Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 3Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 4

Blue Titanium Flat Plate Solar Collector 300L Black Flat Panel Solar Water Heater 5



Catalogue of Flat Plate Solar Collector.

PT-F Flat Panel Solar Collector 2x1 2x1.25 2x1.pdf...
