Product Details:
|
| Capacity: | 300L 1000L | Structure: | Split |
|---|---|---|---|
| Warranty: | 6 Years | Collector: | Heat Pipe Solar Collector |
| Outer Tank: | Painted Steel | Inner Tank: | SUS304 Stainless Steel |
| Bracket: | Aluminium Alloy | Heat Preservation: | 3 Days |
| High Light: | 25 Tubes Split Solar Water Heater,500L Split Solar Water Heater,Painted Steel Tank Solar Heating Collector |
||

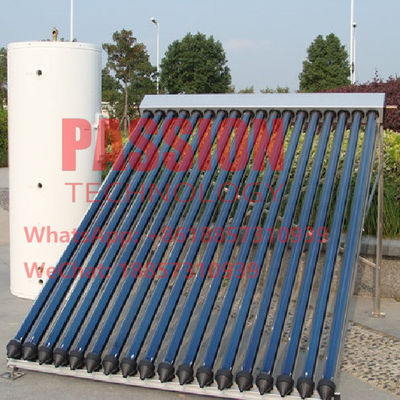

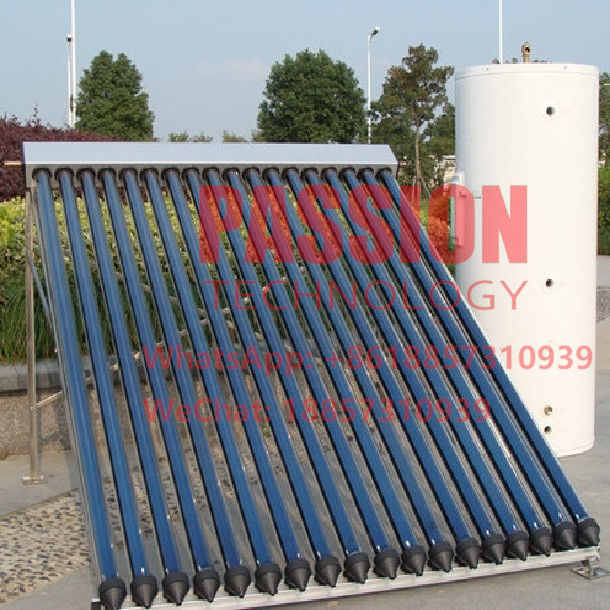

500L Split Pressure Solar Water Heater 25tubes Heat Pipe Solar Heating Collector
Advantages
New manifold,more stronger.
The frame can be adjusted.
Easy installation.
Tail stock support is made of stainless steel or aluminum alloy.
Working principle
The collector absorbs solar energy and transmits it to the water tank through circulation.
When the temperature of the collector reaches the set value, the controller starts the
circulation pump automatically.
Location

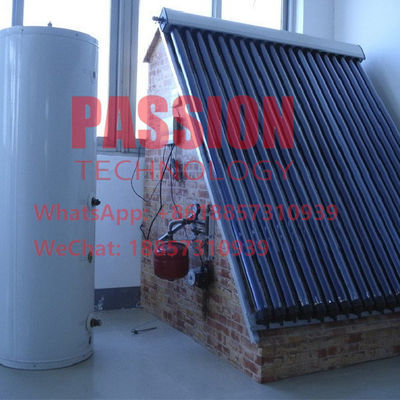

Collector maybe installed either on the roof or wall while water tank may be installed
at any place in a villa flexible .collector harmonizes with villa’s outlook and maintains
villa’s outlook beauty.
Flat Panel Split Solar Water Heater
with Double Coils PTS-F2
| Flat Panel Split Solar Water Heater with Double Coils PTS-F2 |
||||||||
| Model | PTS-F2-15 | PTS-F2-20 | PTS-F2-25 | PTS-F2-30 | PTS-F2-40 | PTS-F2-50 | PTS-F2-100 | |
| Flat Panel Solar Collector | Core material | Copper | ||||||
| Coating | Copper aluminum cover coating of Blue Titanium Absorption rate: α=0.95 Reflection rate ε=0.04. | |||||||
| Base plate | Marine-grade H3004 Aluminum, toughnessH32 Thickness 0.7mm | |||||||
| Glass of panel | Special glass for panel With ANS1297-1-1975, BS6206A and JIS R3206 standards; toughness with AS2208-1978 and federal standards of United States. | |||||||
| Panel Insulation | Bottom with fiberglass insulation ,Thickness 60mm,Density 20kg/m³; Side-thickness insulation:13mm; Density 23kg/m³; Thermal properties: R1.0 Thermal conductivity : 0.059W/m． | |||||||
| Quantity (PCS) | 1 | 1 | 2 | 2 | 3 | 3 | 6 | |
| Water Tank |
Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 | |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 | |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 | |
| Outer Tank | Color Steel Plate/ Enamal White | |||||||
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 | ||
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar | |||||||
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 | ||
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W | |
| Working Station | SR961S (Including controler & WILO PUMP) | |||||||
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L | |
Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2
| Heat Pipe Split Solar Water Heater with Double Coils PTS-H2 |
||||||||
| Model | PTS-H2-15 | PTS-H2-20 | PTS-H2-25 | PTS-H2-30 | PTS-H2-40 | PTS-H2-50 | PTS-H2-100 | |
| Heat Pipe Solar Collector | Tubes (PCS) | 15 | 20 | 25 | 30 | 40 | 50 | 100 |
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3; | |||||||
| Heat Pipe | Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa; | |||||||
| Outer Shell/Bracket - Alluminum Alloy | Insulation Layer - Rock wool | Dustproof Rubber - EPDM | Dsily Heat Gain - 8.5MJ/m² | |||||
| Inlet/outlet - 22mm/3/4" | Tailstock - ABS | Temperature - 250 °С | Work Pressure - 0.6MPa | |||||
| Contour Area | 2.32m² | 3.10m² | 3.78m² | 4.52m² | 6.20m² | 7.56m² | 15.12m² | |
| Aperture Area | 1.43m² | 1.89m² | 2.36m² | 2.83m² | 3.8m² | 4.72m² | 9.44m² | |
| Absorption Area | 1.22m² | 1.62m² | 2.04m² | 2.43m² | 3.24m² | 4.06m² | 8.16m² | |
| Quantity (PCS) | 15tubes*1 | 20tubes*1 | 25tubes*1 | 30tubes*1 | 20tubes*2 | 25tubes*2 | 25tubes*4 | |
| Water Tank |
Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 | |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 | |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 | |
| Outer Tank | Color Steel Plate/ Enamal White | |||||||
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 | ||
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar | |||||||
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 | ||
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W | |
| Working Station | SR961S (Including controler & WILO PUMP) | |||||||
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L | |
Packing
Evacuated Tube Solar Water Heater: standard export package.
The samples are loaded into the plywood boxes.
Our Services
We defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded the product in its own unique solution for sale to its customers.
The proof of this concept is that the product must be significantly transformed.
The OEM Partner primarily uses its own company logo and brand name on its solution and it markets, sells and provides technical and warranty support directly to its customers.
FAQ
Payment terms: T/T, L/C, Paypal, Western union all support.
Delivery time: Sample order 3 working days, Container order 10 working days.
Minimum order quantity: 1 PC
Guarantee period: 8 years
OEM service: Support (Print logo on carton for free)
Notice
1) The angle of the frame can be changed in production according to the local latitude condition of the customers. We can design the suitable angle for the customers
2) We offer the spare accessories and tubes for your order for free
3) We can offer the standing frame for SFB if the customers need
4) We can change the quantity of tubes of each SFB solar collector according to customers' request
5) We can change the different material of manifold according to the requirement of customers , SFB with standing frame.
PDF Catalogue of Split Pressurzied Heat Pipe Solar Water Heater.
PTS-H2 Heat Pipe Split Solar Water Heater with Dou...
PDF Catalogue of Split Pressurzied Flat Panel Solar Water Heater.
PTS-F2 Flat Panel Split Solar Water Heater with Do...
