|Capacity:||50 Tubes||Structure:||Non Pressure|
|Warranty:||6 Years||Collector:||Vacuum Tube|
|Application:||Hotel||Outer Tank:||Painted Steel|
|Inner Tank:||Stainless Steel 304||Bracket:||Stainless Steel 201 0/20/30/45 Degrees|
SS 304 Vacuum Tube Solar Collector,
5000L Vacuum Tube Solar Collector,
SUS304 Evacuated Tube Solar Thermal Collectors

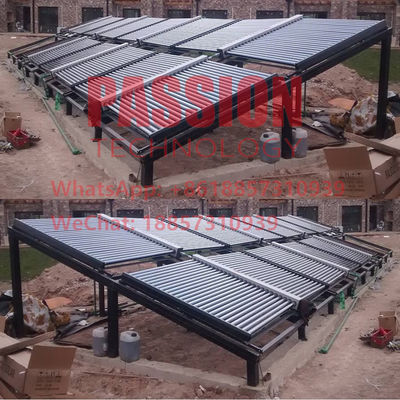

5000L Vacuum Tube Solar Collector Glass Tube Solar Thermal Collector Sun Heating
|Vacuum Tube||Size (mm)||Φ58*1800 / Φ47*1500|
|Tube (pcs)||40 / 50 / 60 / 70|
|Glass||Double layer borosilicate 3.3 glass with high vacuum|
|Coating||Single-target AL/AL-ALN(H) or three-target Cu/SS-ALN|
|Manifold||Shape||Rectangular / Round|
|Manifold tank||Food-grade stainless steel SUS304-2B / SUS316|
|Manifold shell||Color steel gray painted|
|Insulation||High-density polyurethane foaming 40MM thickness|
|Bracket||Shaped strong aluminum alloy structure adaptable to flat or slope roof|
|Accessories||Anti-aging silicon seals, dust proof seals, stainless screws|
|Connection||1 inch male thread (larger size is available)|
|Collector Angle||5 ~ 90°|
|Hail Resistance||Φ25 mm diameter|
|Model Number||Solar Vacuum Tube||
|Container Loading Qty /sets|
|Size /mm||Qty /pcs||20GP||40GP||40HQ|
Working Theory and Parts Description
The Manifold Vacuum Tube Non-pressure Solar Collector is one of the most economical collector with pretty high efficiency in solar water heating, it is usually be used in active open loop circulation system for direct solar water heating.
Solar vacuum tubes are plug directly inside manifold tank, when cold water in evacuated tubes is heated with solar irradiation.
As the specific gravity of hot water and cold water are different, hotter water goes upward to manifold tank and colder water goes downward to glass vacuum tubes.
Through this continuous circulation, the cold water in manifold tank will be gradually heated, in an active open-loop solar system, the hotter water in manifold will be pumped to hot water storage tank, and the same time circulate colder tank water to manifold collector for solar heating.
Features of Vacuum Tube Solar Collector
1. Most economical and practical collector for solar water heating;
2. Wide applications for hot water heating, pool heating, space heating, etc;
3. Large heating capacity from 500 to 500,000 Liter hot water;
4. Efficient direct hot water heating with big flow water circulation;
5. Strong adaptability to flat or slope roof installation;
6. Easy installation and connection with simple structure design;
7. Much safe and stable after system installation and commissioning;
8. Applicable to active open loop circulation system or passive thermosiphon system.
9. With anti-freezing protection it works well in subzero weather condition.
10. With technical support from VISION company, your system seldom has problems of breaking tubes, broken or deflated manifolds and storage tank.
Packaging & Shipping
Packaging Details: Export strong corrugated carton.
Delivery Detail: Within 7 - 10 days for container order quantity upon confirmed invoice or sales contract.
Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;
Technical support: more than 10 years experience for product suggestion, installation guidance, market analysis, etc.
OEM & ODM: We welcome OEM & ODM requirements for solar collector, storage tank, installation frame, and even for some out-sourcing equipment;
Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;
Minimum order quantity: We offer sample sample manufacturing for customers to check the quality and service;
Shipping service: arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;
Import certificates: make Certificate Origin CO, FORM A, FORM E, FORM F, customs certification, etc.
