|Insulation:||55mm High Pressure Polyurethane Foam||Structure:||Compact|
|Type:||Non Pressurized||Outer Tank:||Stainless Steel|
|Inner Tank:||Stainless Steel 304||Tube:||Vacuum Tube|
300Liter Non Pressure Solar Water Heater,
50Tubes Non Pressure Solar Water Heater,
Shower Kitchen Vacuum Tube Solar Collector

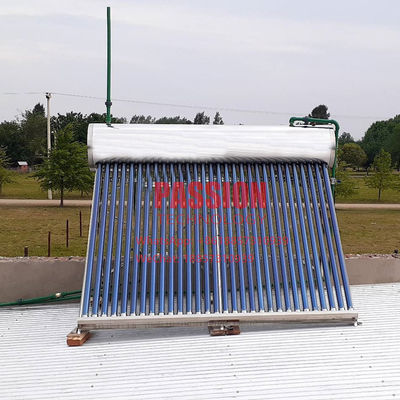

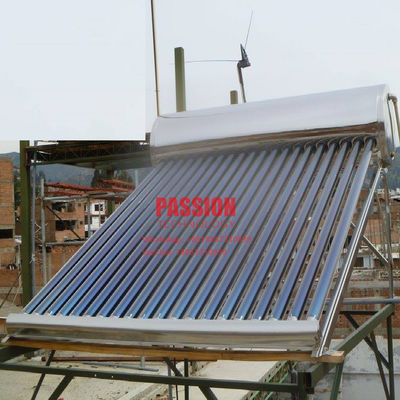

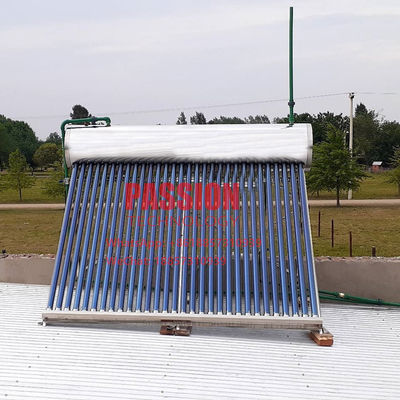

300L Non Pressure Solar Water Heater 50 Tubes Vacuum Tube Solar Thermal Collector
5 years guarantee,15 years lifetime.
solar water heater
The series employs the natural convection phenomenon called “thermosyphon”.
The evacuated tubes convert solar energy into heat energy and transfers heat to water.
The lighter hot water in tubes rises to the storage tank, while the cold water at the bottom of the tank flows into the tubes, creating continuous circulation.
The convection flow will continue as long as the sun is heating the collector.
Color steel appearance
Stainless / galvanized steel covered appearance
1. Inner water tank: SUS304-2B Food Grade stainless steel plate(0.4-0.5mm)
2. Outer shell: Anti-oxidized Galvanized color steel plate(0.4mm)/PVDF coating steel plate(0.4mm)/SUS304-ABstainless steel(0.4mm)
3. Bracket: stainless steel plate(1.0mm)/Aluminum alloy profiled bar (1.5-2.0mm) /Anti-oxidized Galvanized steel plate ( 1.2mm)
4. Tank insulation: Polyurethane integral foaming, 55-60mm thickness
5. Sealed circle: silicon rubber
6. Heat preservation time: 60-72 hours
7. Wind resistance: 30m/s, Hail resistance:25mm
8. Working temperature:-20~250 degree centigrade
9. Maximum pressure: 0.5-0.6 Mpa
10. Usual vacuum tube dimension: D47x1500mm/ D58*1800mm
11. Tube coating: Magnetic-controlled Al-N-Al sputtering all glass evacuated tubes ,Three-target Cu/SS-ALN/ALN vacuum tube, Three-target Cu/Ti-ALN/ALN vacuum tube.
12. Tubes/set: 8/10/12/15/17/18/20/25/30/32/35
13. Dual-purpose bracket for both flat and sloping roof, and with different angle for different countries. Operation and installation documents are free.
1. High quality SUS304-2B stainless steel for water tank, processed by argon arc welding technique, under strict quality control system, tank will never rust and leak.
2. High borosilicate all glass vacuum tube has selective absorbing surface, absorptivity above 0.93 and emissivity below 0.05, it enables vacuum tubes to have good absorb and transmit performance.
3. Request for customized type are accepted. Simple structure, Dual-purpose brackets for both flat and inclined roof.
4. To serve Europe, America, Africa clients better, at work-in Europe work time.
5. Feeding water automatically with intelligent controller, and ensure the outlet water with stable temperature.
6. Still in using when the water supplier is cut off.
7. Optional accessories: assistant tank, electric backup heater, intelligent controller, magnesium bar and automatic filling valve. They are optional instead of compulsory, client can choose some or none according to actual need.
|Payment Terms||L/C, T/T|
|Minimum Order||2 sets|
|Lead Time / Delivery Time||15 Day(s)|
|Delivery Details||after receipt of payment|
|Port of Lading||Ningbo / Shanghai|
|Target Market(s)||Africa(except Middle East), Central & Southern Asia, Latin America, Southeast Asia|
Contact Person: Passionsolar
