Product Details:
|
| Capacity: | 5000L | Tubes: | Glass Tube |
|---|---|---|---|
| Collector: | Vacuum Tube | Outer Tank: | Stainless Steel |
| Inner Tank: | Stainless Steel 316 | Bracket: | Stainless Steel 201 0/20/30/45 Degrees |
| High Light: | vacuum tube hot water solar collector,solar evacuated tube collectors |
||

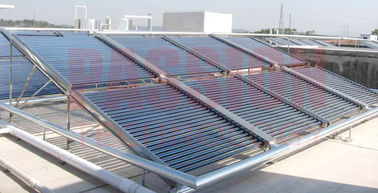

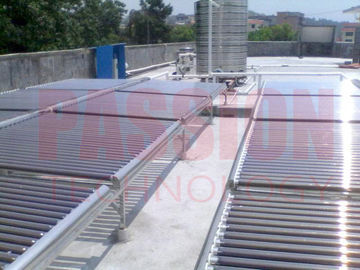

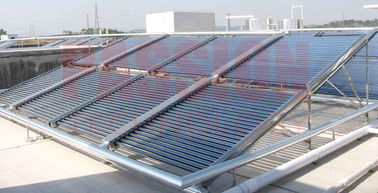

5000L Solar Pool Heating Non Pressure Solar Collector Bathroom Heating Collector
Technical data
| Modle | PT-NC-15 | PT-NC-20 | PT-NC-25 | PT-NC-30 | PT-NC-40 | PT-NC-50 | PT-NC-60 | |
| Quantity of Tubes | 15 | 20 | 25 | 30 | 40 | 50 | 60 | |
| Contour aperture area | 1.94m2 | 2.58m2 | 3.22m2 | 3.88m2 | 5.16m2 | 6.44m2 | 7.76m2 | |
| Manifold | Inner shell: 304 2B | Foaming: High pressure polyurethane | ||||||
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3; | |||||||
| Anti-dust Ring | White Silicon Rubber | |||||||
| Work Pressure | 0.05Mpa | |||||||
| Bracket | Galvanized Steel with Plastic Coating in Black color - 0/20/30/45 degrees | |||||||
| Tailstock | ABS | |||||||
| OEM Service | Logo painting on products and package is for free (20FT,40FT,40HQ) | |||||||
Feature
1. Its specially suitable and widely used in large capacity solar water heating project, such as swimming pool, hotel, school, house, restaurant, farm etc.
2. It is the most economical solution for solar water heating project. Cost of vacuum tube solar collector is much lower (around 50% less) than heat pipe (pressurized) solar collector.
3. It can operate automatically, remote controlling.
4. Any type of back up heating can be combined
5. Easy installation and connection and little maintenance needed.
Packaging & Delivery
Packaging Details:
LCL: high quality carton and pallet offer to avoid any damage during transport
FCL:standard exporting carton
Delivery Detail:
10 days for 20GP solar collector
FAQ:
Q1: Can I get any discount?
A1:
The Price is negotiable, we can offer you discount according to your order quantity. If you purchase it with container loading quantity, we can offer you some discount. For LCL goods, it needs extra wooden case fee.
Q2: How long will it take for my goods to receive?
A2:
Normally it need about 30 days to ship to European Countries and America by sea.
Q3: How much are the shipping costs?
A3:
Shipping cost is charged by the measurement and shipping port.
Q4: Do you offer samples for free?
A4:
Unfortunately we do not supply free samples.
Q5:How do I place my order?
A5:
You can send us an inquiry letter first, we will contact you in 24 hours and guide you how to order.
Q6: How to contact us?
A6:
Please send your Inquiry to our email or call us by tel/cell no.
PT-NC Non Pressure Solar Collector.pdf
