50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector

50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector
50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector 50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector 50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector

Large Image :  50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector

Product Details:
Place of Origin: CHINA
Brand Name: PASSION/OEM
Certification: CE
Model Number: 50Tubes
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTONS/PLYWOOD CASE/PALLET
Delivery Time: 10 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 5000units/month

50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector

Description
Project: 1000L Use: Pool
Shape: Double Side Accessories: Tube
Structure: Non Pressure Outer Tank: Stainless Steel 201
Inner Tank: Stainless Steel Bracket: Galvanized Steel 201 0/20/30/45 Degrees
High Light:

vacuum tube hot water solar collector

,

solar evacuated tube collectors

50 pipes evacuated tube Solar collector, Solar Air Heater, Stainless Steel Solar Thermal Collector



Specifications


1) inner manifold: Stainless steel SUS304-2B
2) outer manifold: Color steel or Stainless steel
3) Glass tube dimensions: 47mm x 1.5m x 50 PCS; 58mm x 1.8m x 50 PCS
4) Heat preservation: 72hrs
5) Hail resistance: 25mm



Working Principle of Solar collector



1. The solar collector connect with non-pressurized solar tank.

2. The water pass through solar manifold then into vacuum tube, vacuum tube absorb solar energy, heating the water inside of vacuum tube.

3. According to density difference, the cold water through down into vacuum tube, and hot water flow up into solar manifold, then storage in heat protection water tank.

4. After circulation by temperature circulation pump, all of the cold water will be heated to hot water and storaged in heat protection water tank.



Features of Solar collector



1. The solar collector is more suitable for solar hot water project, because you can free compose many solar collectors for connect with different capacity solar tank, for example, the capacity can do 1000liters, 2000liters, 3000liters, 100000liters, 200000liters and more , normally use in hotel, swimming pool, and others large project

2. The solar collector is separated with non-pressurized solar tank, so it need temperature circulation pump for promote circulation, when the water temperature is difference between storage tank and solar collector, the pump will strat working, cold water will into vacuum tube for heating, and hot water will back to solar tank for storage.

3. The solar collector and solar tank is non-pressurized , so exhaust vent on solar collector and exhaust pipe on solar tank is most important for protection the solar hot water system.



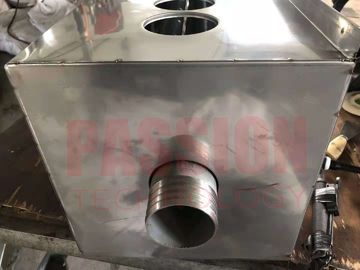

Features of Solar Manifold



1. We have three design for your choose: round type, quadrilateral type and octagonal type

2. Double sides opening for horizontal type solar collector, single side opening for vertical type solar collector

3. The solar manifold can opening from 10tubes to 70tubes for φ47mm/1500mm or φ58mm/1800mm vacuum tube

4. We have many material for your choose: stainless steel, color armor plate, aluminum alloy and galvanized steel.

5. The color armor plate have different color for your choose : white, red, silver gray.



Material of Solar collector



a) Solar manifold: Round type solar manifold, horizontal type solar collector.

Internal: SUS304-2B.

Outer shell: Color steel or SUS304 2B.

b) Frame: Galvanized steel with powder coating.

c) Insulation layer: polyurethane foam.

d) Vacuum tube: high borosilicate glass with AL/N/AL coating.

e) Specification of vacuum tube: φ47mm/1500mm, φ58mm/1800mm vacuum tube.



Technical Data:

Vacuum Tube Size (mm) Φ58*1800 / Φ47*1500
Tube (pcs) 40 / 50 / 60 / 70
Glass Double layer borosilicate 3.3 glass with high vacuum
Coating Single-target AL/AL-ALN(H) or three-target Cu/SS-ALN
Manifold Shape Rectangular / Round
Manifold tank Food-grade stainless steel SUS304-2B / SUS316
Manifold shell Color steel gray painted
Insulation High-density polyurethane foaming 40MM thickness
Bracket Shaped strong aluminum alloy structure adaptable to flat or slope roof
Accessories Anti-aging silicon seals, dust proof seals, stainless screws
Connection 1 inch male thread (larger size is available)
Collector Angle 5 ~ 90°
Hail Resistance Φ25 mm diameter
Model Number Solar Vacuum Tube

Aperture

Area/ m2

Container Loading Qty /sets
Size /mm Qty /pcs 20GP 40GP 40HQ
PT-5818CA-40 Φ58*1800 40 3.77 42 88 107
PT-5818CA-50 50 4.71 34 70 86
PT-5818CA-60 60 5.66 28 58 71



Packaging & Shipping



Packaging Details: Export strong corrugated carton.

Delivery Detail: Within 7 - 10 days for container order quantity upon confirmed invoice or sales contract.

50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector 0

50tubes Evacuated Tube Solar Collector , Solar Water Heater Solar Thermal Collector 1



PDF Catalogue of Non Pressure Solar Collector.

PT-NC Non Pressure Solar Collector.pdf
