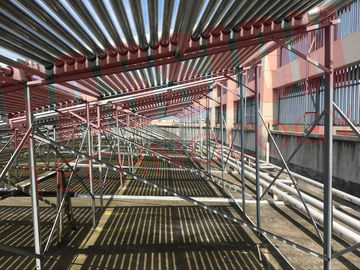

500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System

500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System

    • 500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System
    • 500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System
    • 500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System
  • 500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 500L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Water Tank: 500L Working Pressure: 0.5 Bar
    Warranty: 6 Years Collector: Vacuum Tube
    Outer Tank: Stainless Steel Inner Tank: Stainless Steel 304
    Bracket: Colored Steel Use: Hot Water Supply
    High Light:

    vacuum tube hot water solar collector

    ,

    solar evacuated tube collectors



    500 L Solar Hot Water Collector , Solar Vacuum Tube Collector Big Solar Heating System



    Horizontal type Double side vacuum tube solar collector,

    totally 50 tubes for one set,non-pressure system.
    Manifold box: inner tank 0.41mm thickness SUS 304/2B,

    outer tank 0.35mm thickness Color steel.

    Insulation: 35mm thickness foam,Germany technology.
    Tube: Three target(ALN/ALN-SS/CU)

    vacuum tube,58mm*1800mm*1.6mm
    Bracket:Galvanized steel 1.5mm thickness.
    Volume: 0.75CBM



    Working principle of low pressure solar heater



    adopt the alternative absorption coating to absorb the solar energy,

    heat the water in the vacuum tube directly, through the cold hot water convection.

    change the solar energy into heat energy to store in the water tank:



    a) Adopts the double-deck highly special hard glass tube of boron silicon.

    b) Double-deck glass coaxial structure, intermediate layer releases the vacuum, maintains 5 x 10-2Pa high vacuum for a long time while in charge.

    c) Magnetism accuse of alternative absorption coating, AL / N / AL of sputter aluminum nitrogen aluminum alternative absorption coating solar radiation absorption rate ≥93%, and hot emittance ≤6%.

    d) Long performance life: 15 years.

    e) Endures climate feature: thermal efficiency is good in the whole year.



    Description Non-pressure solar collector
    Material of inner tank 0.4mm thickness SUS304/2B Food grade stainless steel
    Material of manifold tank 0.4mm thickness SUS304/BA stainless steel
    Tank insulating layer 40mm 50kg/m³ high-density polyurethane foam
    Inlet and outlet hole Male G 1’ /NPT1'
    Solar collector tube 3.3 Borosilicate glass with ALN coating
    Thickness of glass tube 1.6mm
    Vacuum tube tightness P≤0.005 Pa
    Absorption as=0.93-0.96(AM1.5)
    Emission ratio εh=0.04-0.06(80C±5C)
    Idle sunning property parameters Y=220~260m2.C/KW
    Average heat loss coefficient ULT=0.6~0.7W/(m2.C)
    Bracket: Aluminum alloy with anti-corrosion treatment, 1.8mm thickness
    Frame angle:

    15°/25°/27°/30°/35°/45°/52°

    <Please select specific angle when you order>

    Welding: Argon arc welding, spot welding
    Fastening pieces: Made of stainless steel screw
    Frame angle: Nylon bottom support, silicon gasket
    Max working temp.: 99°C
    Max pressure: 0.005Mpa
    Hail resistance: Ø25mm
    Anti Freezing: -20°C
    Wind resistance: 20m/s
    Instruction manual: Available



    Model and Data



    Model

    Vacuum tube

    (D*L*N)

    Aperature Collector volume 40HQ loading 20GP loading
    PT-54/2.30/0 58*1800*18 2.30 54 161 69
    PT-60/2.60/0 58*1800*20 2.60 60 149 63
    PT-78/3.38/0 58*1800*26 3.38 78 124 54
    PT-90/3.90/0 58*1800*30 3.90 90 112 45




    Non-pressure solar collector application


    1. Hotels, resorts, hospitals and hostels
    2. Process industry, boiler feed, laundry and canteens
    3. Agricultural sector, hatcheries and dairies
    4. Process industry, Boiler feed, Laundry and canteens
    5. Agricultural sector, hatcheries, and dairies
    6. Swimming pool heating
    7. In-process heating
    8. Health clubs (Steam / Sauna)



    Remark:
    1. The above price is based on FOB China seaport.
    2. If you only need the sample,you should add some price,it includes the wood packing fee, transporting fee and the B/L posting fee etc.
    3. We can also put the logo of your company onto the tube or tank as you requested, and also make different kind of colors for the system.
    4. Price validity: 15 days. Minimum Quantity: 10 units.Packing: Export carton.
    5. Payment terms: 30% T/T in advance, balance 70% T/T before shipment.
    6. Delivery time: 15 days after the date the 30% T/T payment is received.
    7. Guarantee: complete system 5 years(all accessories for 1 year). We take all the losses caused by the quality of the goods specified in the agreement not in accordance with the terms. We take no responsibility for force majeure and improper operation and maintenance from man-made.
