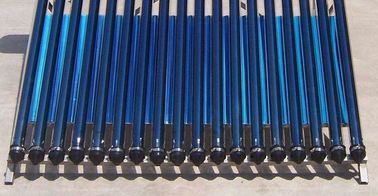

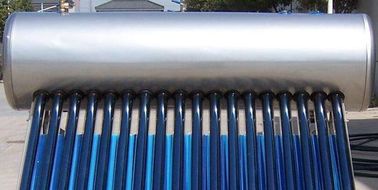

Silver CPC Heat Pipe Solar Water Heater for Bathing

Silver CPC Heat Pipe Solar Water Heater for Bathing

    • Silver CPC Heat Pipe Solar Water Heater for Bathing
    • Silver CPC Heat Pipe Solar Water Heater for Bathing
    • Silver CPC Heat Pipe Solar Water Heater for Bathing
  • Silver CPC Heat Pipe Solar Water Heater for Bathing

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 200L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Capacity: 200L Structure: Integrative
    Principle: Pressurized Color: Silver
    Outer Tank: Silver Inner Tank: Stainless Steel 304
    Use: Bathing Heat Preservation: 72 Hours
    High Light:

    copper pipe solar water heater

    ,

    solar energy water heater

    200L Integrative Pressurized Silver CPC Heat Pipe Solar Water Heater for Bathing



    Integrative pressurized system is a renovate model for the solar hot water,

    which adopts advanced heat pipe technology,

    combines heat pipe solar collector with pressurized tank to form a compact model.



    Feature:



    Model Absorbing area(m2) Heat pipe Tank Capacity Qty.(Sets)
    Diameter Length Number 20" 40HQ
    150L 2.07 ø58mm 1800mm 15 136L 41 91
    160L 2.21 ø58mm 1800mm 16 145L 44 98
    180L 2.49 ø58mm 1800mm 18 160L 40 90
    200L 2.76 ø58mm 1800mm 20 175L 35 73
    240L 3.32 ø58mm 1800mm 24 208L 30 68
    300L 4.15 ø58mm 1800mm 30 256L 25 55



    Highly efficient absorber of high performance with daily average efficiency over 70%
    Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction
    Withstand pressure of 6 Bar, can be connected directly with city water
    No water inside the tubes, the system can still work even with several tubes breakage
    Simple structure, easy to assembly and install
    Can be used all year round in the very cold climate
    Can be used together with Auxiliary electric boost
    Long service life, can be used as long as 15 years

    Vacuum tube: High quality High borosilicate glass 3.3, 58*1800mm
    Inner tank: SUS304-2B stainless steel plate, 1.5mm thickness
    Outer tank: Color steel plate, 0.4mm thickness
    Insulating layer: Polyurethane foam 55mm
    Bracket: Galvanized steel
    Capacity: 100L,150L,200L,250L,250L,300L



    Accessories:

    1. Electric heater:1500W-2000W/220V-230V;

    2. Intelligent controller: SR609(esp. for integrative pressurized type);

    3. P/T valve (pressure & temperature): WAY-20,0.7MPa;

    4. Magnesium rod:diameter 20mm, length 23 cm, copper connector;

    5. Temperature sensor;

    6. Air vent valve;

    7. Vacuum valve;

    8. Check valve.



    FAQ:

    1. What is your Delivery Time?

    LCL order:10days.

    Full container order:15days.

    2. What is your Guarantee Time?

    6 years; Provide you with some accessories, they are free for you.

    3. Can you accept OEM and ODM ?

    YES, printing your LOGO on the product and package, it's free.

    4. What is your payment term?

    We accept T/T or L/C, Western Union and Paypal.

    5. What is your MOQ?

    4 sets

    6. How do you pack?

    LCL order in plywood case

    Full container order in high quality export carton

    7. What is your FOB port?

    We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.

    8. What is your monthly production capacity?

    1000 sets

    9. What is your shipping term?

    By sea/Air/Rail/Truck

    10. Do you any additional services?

    YES!

    We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.

    And we can offer logo design, Products Advertising Design etc services free.

    Silver CPC Heat Pipe Solar Water Heater for Bathing 0



    PDF Catalogue of Integrative Pressurized Solar Water Heater with Heat Pipe Solar Collector.

    PT-H Integrative Pressurized Solar Water Heater.pd...
