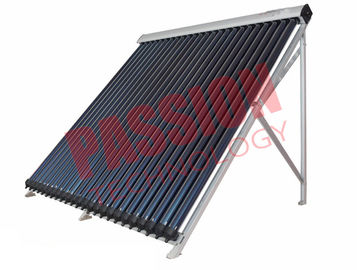

Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof

Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof

    • Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof
    • Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof
    • Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof
  • Silver Color Pressurized Solar Collector , Solar Thermal Collectors For Flat Roof

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 20tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Tubes: 20 Tubes Insulation: Rock Wool
    Frame: Aluminum Alloy Installation: Flat Roof
    Heat Pipe: 24mm Condenser Copper Manifold Color: Black
    Principle: Pressurized Application: Apartment

    Pressurized Silver Color Rock Wool Heat Pipe Solar Collector for Flat Roof for Apartment



    Specifications



    Heat pipe solar collector, made for split solar system
    SRCC,EN12975,SolarKeymark,CCC,ISO9001
    10 years warranty
    OEM



    Specification of heat pipe solar heat collectors



    Manifold (interior): red copper

    Manifold (exterior): aluminum alloy

    Glass tube dimensions: 58mm x 1.8m
    Daily efficiency: ≥55% (≥42% in winter )

    Hail resistance: 25mm

    max pressure: 12 bar

    Coating of vacuum tube: ALN/AIN-SS/CU

    Heat Pipe: anti-freezing > -35 °C

    Inlet/outlet: 22mm(3/4″)

    manifold casing: silver (AL original), Black



    Model name 12-58/1800 15-58/1800 20-58/1800
    number of tubes 12 15 20
    Gross size(mm) 1010*1980 (W*L) 1235*1980 (W*L) 1610*1980 (W*L)
    aperture area M2 1.108 1.397 1.876
    Absorber area M2 0.964 1.199 1.603
    flat roof installation size 1420*1010*1420mm (L*W*H) 1420*1235*1420mm (L*W*H) 1420*1610*1420mm (L*W*H)
    weight empty (KG) 40.7 56 64.4
    fluid volume( L) 0.8 1 1.37
    Heat transfer medium pure water/glycol pure water/glycol pure water/glycol
    working pressure 6 bar 6 bar 6 bar
    Max testing pressure 12 bar 12 bar 12 bar
    Max working temperature 280°C 280°C 280°C
    efficiency n° 0.788 0.79 0.795
    inlet/outlet connection 22mm 22mm 22mm
    manifold packing mm 1*2000*200*160 1*2000*200*160 1*2000*200*160
    tubes packing mm 1*1940*280*270 1*1940*350*270 2*1940*350*180
    certificate EN12975-1,2 SOLAR KEYMARK EN12975-1,2 SOLAR KEYMARK EN12975-1,2 SOLAR KEYMARK

    Material
    vacuum tube high borosilicate glass
    size 58*1800mm
    coating SS-CU-AIN/ALN
    heat pipe material TU1 copper
    heat pipe length 1790mm
    heat pipe diameter condenser dia14mm, body dia 8mm

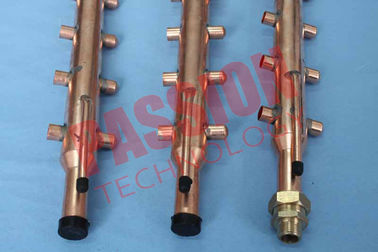

    manifold header pipe TP2 copper dia 35mm

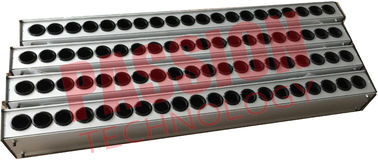

    manifold casing anodized aluminum alloy
    insulation rock wool with polyurethane foam
    bracket galvanized steel
    tube holder UV stabilized nylon
    seals silicon seal
    contact sheets aluminum fin



    Service



    The Solar Pool Heating System can be combined with a solar home heating system or solar water heating system to provide the maximum benefits and return on your investments.

    Call us and we will help you build a solar heating solution for both your pool and home.

    With professional experience the best solar pool heating system is put forward for your particular circumstances.



    These are some Factors to be considered in design of a solar pool heating system:

    Location of your home.

    Pool size( L×W×H ).

    Duration of the swimming season.

    Initial temperature for the water.



    Why choose us?



    we have our clients set to list of reasons why to choose us over other solar water heater,here are our benefits

    Engaged in the solar energy application technology for more than 18 years

    We has received many honors and passed multiple verification.

    The number of service outlets across the country, so you have no worry.

    We research and produce all kinds of products , widely used in hospitals, schools, hotels, etc.



    Tips



    · Considering the economics of a solar water heating system

    · Evaluate your site's solar resource

    · Determine the correct system size

    · Determine the system's energy efficiency
