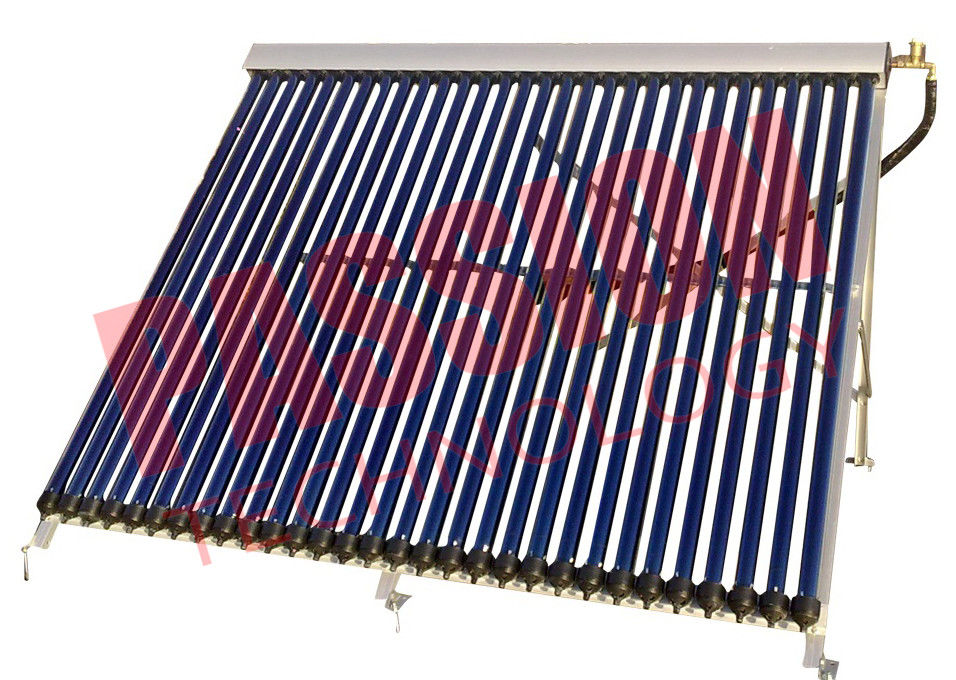

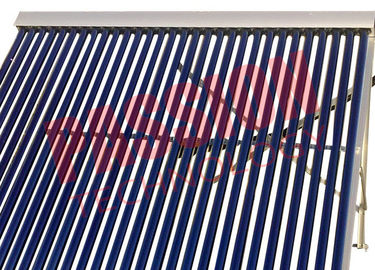

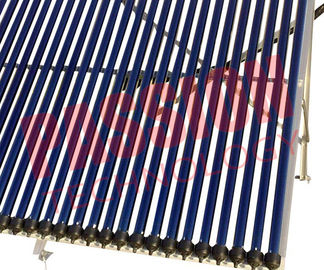

Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material

Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material

    • Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material
    • Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material
    • Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material
  • Wall Mounted Heat Pipe Vacuum Tube Solar Collector Aluminum Alloy Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 30tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Collector Area: 4 M2 Installation: Wall Mounted
    Frame: Aluminum Alloy Assembly: Flat Roof
    Heat Pipe: 14mm Condenser Copper Structure: Separated
    Tubes: Evacuated Tube Application: Room Heating

    Aluminum Alloy Wall Mounted Separated Evacuated Tube Heat Pipe Solar Collector in Energy



    Heat Pipe solar Collector



    It used with heat preservation water tank, solar power workstation and the heat pipe collector.

    The solar collector is consisted of super conducting vacuum heat collecting tube and header, so it's of great efficiency of heat collecting.

    The absorbing percentage of the glass vacuum collector is more than 94%.

    In the sunny days of spring or autumn, each collecting tube could make the water up to 90 degrees centigrade only in 2.5 hours.



    Advantage:

    • Material of manifold is SUS304 stainless steel or aluminum alloy

    • Copper heat pipe for rapid heat transfer.

    • Max Pressure bearing: 8bar.

    • ISO9001 / CE certificate/EN-12975.

    • 5 years warranty.

    • Corrosion resistant brazed copper header.

    • Attractive design, standard frame suitable for pitched roof or flat roof .

    • Easy plug-in installation.

    • Improves the environment and save your fuel cost.



    Heat pipe solar collector working principle



    1) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

    2) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the

    header pipe.

    3) Solar energy storage: water is circulated through the header, via intermittent pump cycling.

    Each time the water circulates through the header, the temperature is raised by 5-10C.

    Throughout the day, the water in the tank is gradually heated.



    Type PT-10 PT-15 PT-20 PT-25 PT-30 PT-15B PT-30B
    Number of tubes 10 15 20 25 30 15 30
    Gross area (m²) 1.63 2.40 3.17 3.93 4.70 1.33 2.42
    Aperture area (m²) 0.94 1.41 1.88 2.35 2.82 0.63 1.30
    Absorber area (m²) 0.805 1.24 1.65 2.06 2.48 0.54 1.08
    Peak power (W / Collector) 659 900 1199 1499 1799 450 900
    Allowable operating pressure (bar) 6 6 6 6 6 6 6
    Test pressure (bar) 10 10 10 10 10 10 10
    Max. stagnation temperature 232°C 200°C 200°C 200°C 200°C 200°C 200°C
    Max. operating temperature 95°C 95°C 95°C 95°C 95°C 95°C 95°C
    Flow rate (l / m2h) 50-150 50-150 50-150 50-150 50-150 50-150 50-150
    Absorber material CU/AI/SS/N2 Borosilicate glass
    Coating ALN/SS-ALN/CU
    Absorption coefficient ≥ 94% ≥ 94% ≥ 94% ≥ 94% ≥ 94% ≥ 94% ≥ 94%
    Emission coefficient ≤ 7% ≤ 7% ≤ 7% ≤ 7% ≤ 7% ≤ 7% ≤ 7%
    Weight (kg) 36.4 55 77 96 116 32 65
    Liquid content 0.62L 0.93L 1.24L 1.55L 1.82L 0.93L 1.82L
    Mounting angle 15 - 75° 15 - 75° 15 - 75° 15 - 75° 15 - 75° 15 - 75° 15 - 75°
    Frame 2mm Aluminum Alloy
    Heat pipe 8mm red copper
    Long-term stable vacuum (Pa) <5*10-3 <5*10-3 <5*10-3 <5*10-3 <5*10-3 <5*10-3 <5*10-3
    Glass tube diameter 58mm 58mm 58mm 58mm 58mm 58mm 58mm
    Vacuum tube wall thickness 1.6mm 1.6mm 1.6mm 1.6mm 1.6mm 1.6mm 1.6mm
    Insulation Compressed Rockwool
    Collector width 800mm 1175mm 1550mm 1925mm 2300mm 1175mm 2300mm
    Collector length 2043mm 1200mm
    Manifold 38mm red copper
    Tube length 1800mm 850mm
    Pressure drop <5mbar(80L/h), 12mbar (150L/h)




    Remarks:



    Payment:

    For LCL/Sample order, the wooden box fee and inland transportation fee will charge for extra, we accept 100% T/T in advance;

    For FCL order, we accept 30% T/T in advance, 70% balance is upon the copy of B/L.

    Warranty:

    15 years for the vacuum tubes; for solar glass vacuum tube, we will send 1% of all tubes as compensation for free.

    Delivery time:

    within 3 days for sample order; within 12 days for standard container, within 15 days for OEM order;

    Packing details:

    If LCL/sample order, in order to avoid be broken in shipping, we will pack the tubes with wood box.

    FCL Order: export standard carton, five layers hard paper carton with safety foam in every carton.
