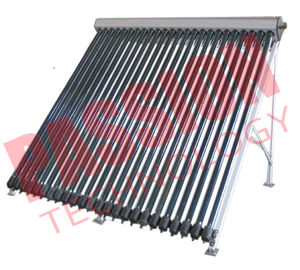

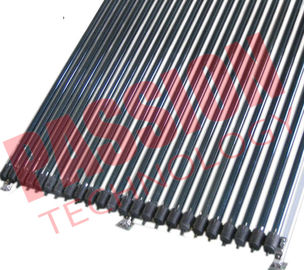

45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color

45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color

    • 45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color
    • 45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color
    • 45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color
    • 45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color
  • 45 Degree Heat Pipe Solar Collector With Stainless Bolts Silver Manifold Color

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 20tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Tubes: 20Tubes Insulation Material: Rock Wool
    Frame: Aluminum Alloy Installation: Pitched Roof
    Heat Pipe: 24mm Condenser Copper Manifold Color: Silver
    Collector: Heat Pipe Application: Heating Water Tank

    45 Degree Rock Wool Aluminium Alloy Frame Heat Pipe Solar Collector With Stainless Bolts



    Our Advantages:



    1. Our Product is economic and environmental.

    2. Our Product is durable and has a long service life.

    3. We have rich production experience.The quality of Product is reliable.

    4. We have a perfect production process and strict quality control system.

    5. We have perfect service system and will give you the best service.



    Working Principle:



    high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.

    The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.

    The heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser.

    In active system, a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.

    The cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.



    1.Vacuum Tube:

    1). 58*1800mm ALN/ALN-SS/CU three targets coating;

    2). Wall thickness :1.6/1.8/2.0mm;

    3). Coating time:60 minutes;Absorption ratio: ≥94%.



    2. Heat copper pipe:

    1). Best TU1 copper

    2). Wall thickness:0.6/0.7mm;

    3). Length:1700-1800mm;

    4). Anti high temperature:250 °C ; ANti-cold: -35°C (-50 °C is optional);

    5). Diameter of condeser:14/24mm

    6). 10 years thermal quality guarantee.



    3. Aluminum fin:

    1). Best quality compact type.

    2). Thickness:0.25mm.



    4. Seal plug of vacuum tube:

    SUS304 stainless steel with Silicone ring.



    5. Header flow Channel:

    1). Material:Copper;

    2). Diameter:35/38mm;

    3). Wall thickness:1.0/1.2mm



    6. Insulating layer:

    1). Material:High density rockwool,

    2). Thickness 35mm.



    7. Manifold & Bracket:

    1). Material: Aluminum Alloy

    2). Color:Aluminum alloy/Black

    3). Thickness:2.0mm



    8. Screw and nut:

    SUS304 Stainless steel, never rust.



    9. Tube holder:

    1). anti-dust seal and side cover

    2). Best nylon PA66 ,and silicone.



    Data



    Tubes Net Absorbing Area ( m2) Gross Area (m2) (empty) Gross Weight ( KG ) Head fluid content ( L ) 17MJ/M2 day warm up 45 C hot water output ( L)
    10 0.85 1.85 37 1.00 100
    15 1.25 2.75 50 1.50 150
    18 1.50 3.30 62 1.80 180
    20 1.60 3.50 72 2.00 200
    22 1.80 3.68 82 2.20 220
    24 2.00 4.20 90 2.40 240
    30 2.45 5.10 110 3.00 300





    Specification



    Model 58*1800
    Size of Condenser 24*70mm/14*70mm
    Length of glass tube 1800mm
    Outer tube diameter 58mm
    Inner tube diameter 47mm
    Glass thickness 1.6mm
    Glass material Borosilicate Glass 3.3
    Absorptive coating ALN/ALN-SS/CU
    Absorption coefficient >92%
    Emission coefficient <8%
    Vacuum P<3.5*10 -3 Pa
    Freezing resistance -35 C
    Stagnation temperature >220 C
    Net Weight 2.24 kg
    Hot Water Output (17mj/m2. Day =45 °C) 10 L





    Our service



    We have both vacuum tubes factory and water tank factory for more than 8 years.

    We provide 6 years Warranty for the whole system.

    Keep the delivery time exact.

    Your inquiry will be replied within 12 hours.

    We offer you professional service with fluent English.

    Keep the bulk production as the samples in high quality.

    Freight forwarder: faster, safer and convenient.

    Quality : we have QC in each process.
