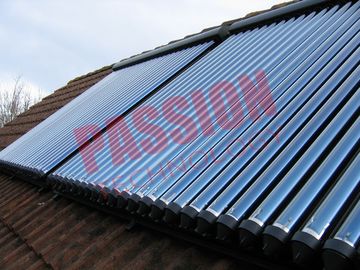

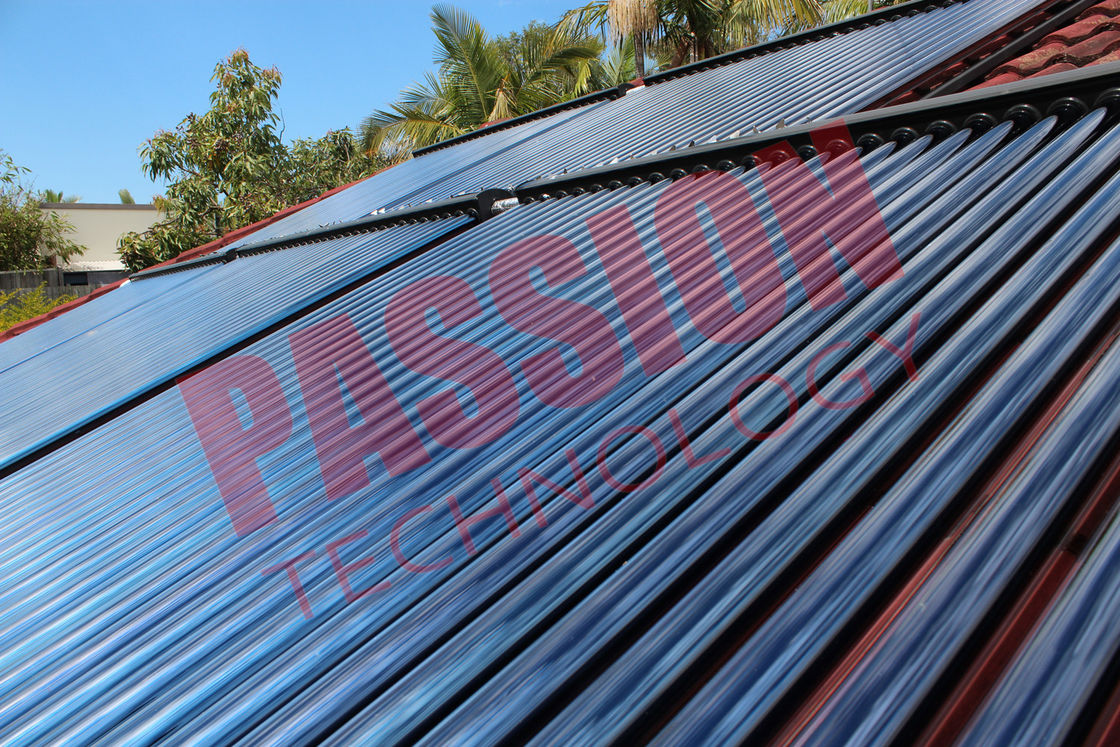

High Pressured Heat Pipe Solar Collector Indirect Thermosiphon Structure

High Pressured Heat Pipe Solar Collector Indirect Thermosiphon Structure

    • High Pressured Heat Pipe Solar Collector Indirect Thermosiphon Structure
    • High Pressured Heat Pipe Solar Collector Indirect Thermosiphon Structure
  • High Pressured Heat Pipe Solar Collector Indirect Thermosiphon Structure

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 25tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Model: 25 Tubes Insulation Layer: 40mm
    Frame: Aluminum Alloy Assembly: Pitched Roof
    Heat Pipe: 24mm Condenser Copper Manifold Color: Silver
    Collector: Heat Pipe Structure: InDirect Thermosiphon

    High Pressured InDirect Thermosiphon 24mm Condenser Copper Heat Pipe Solar Collector



    Heat pipe solar collector working principle



    1) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

    2) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the

    header pipe.

    3) Solar energy storage: water is circulated through the header, via intermittent pump cycling.

    Each time the water circulates through the header, the temperature is raised by 5-10C.

    Throughout the day, the water in the tank is gradually heated.



    Features:



    Reliable and efficient heat-pipe solar tubes

    Copper heat pipes for rapid heat transfer

    Easy plug-in installation

    Free maintenance

    Suitable for main pressure water

    Corrosion resistant silver brazed copper heater

    The surface is made of powder coated galvanized steel

    Stable solar conversion during the day

    The perfect solar collector for domestic solar water heater systems

    Ideal for commercial solar water heating applications



    Heat Pipe Solar Collector Detailed Specification
    Item Parts Description
    Manifold box Manifold Outer Case 1001 Aluminum alloy with plastic spraying; thickness: 2.0mm;
    Heat Insulation Layer Rock wool, thickness: 55mm, density 120-140kg/m 3
    Copper Header Tube TU2, thickness: 1.0 mm, Hole spacing: 75mm, max operation pressure 6 bar, phosphor copper brazing
    End Cover Nylon
    Dust Ring Silicone Rubber 110
    Tube holder Nylon 66
    Frame Frame Aluminum alloy with plastic spraying; thickness: 2.0mm
    Heat Pipe Evacuated Tube Vacuum Tube Three high vacuum tube, ALN/ALN-SS/CU absorber coating, Dia: 58mm, Length: 1800mm.
    Copper Heat Pipe TU1, Silver Soldering; Condenser of the pipe: diameter: 14mm; length: 70mm; wall thickness: 1.0mm; The rest of the pipe: diameter: 8mm; length: 1700mm; wall thickness: 0.8mm
    Aluminum Fin AL; thickness: 0.2mm; Length: 1600mm
    Tube Plug Silicone Rubber and Stainless Steel
    Model Supply hot water(L) Dia& Length of tube(mm) Qty. of tubes(pcs) Absorber Area(sqm) Loading of 20GP/40HQ
    PT-SC-58-1800-10 100 58*1800 10 1.41 148/361
    PT-SC-58-1800-15 150 58*1800 15 2.10 138/336
    PT-SC-58-1800-18 180 58*1800 18 2.52 116/282
    PT-SC-58-1800-20 200 58*1800 20 2.80 95/237
    PT-SC-58-1800-25 250 58*1800 25 3.50 86/215
    PT-SC-58-1800-30 300 58*1800 30 4.20 61/152
    PT-SC-58-1800-36 360 58*1800 36 4.80 52/ 128



























































































    Technology:



    Model OEM
    Manifold casing material Aluminum painted un-oxygen layer
    Frame material Aluminum or Stainless Steel and painted Layer
    Header pipe material Copper
    Heater pipe material Copper
    Insulation Rock wool(it can bear much higher temperature than the polyurethane foam)
    Rubber seals and rings UV stabilized high temperature dilicon rubber
    Test pressure 9 bar
    Collector mounting Plane roof / slope roof
    Angle of operation 10-80
    Inlet Outlet Φ22 or 3/4 inch male



    Quality Policy:

    products regular :≥99%

    QC before output :100%

    Replace free of the bed products:100%

    Guarantee :5 years

    We can also produce according to your requirement.And OEM is also provided.
