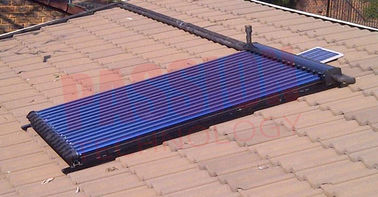

High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes

High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes

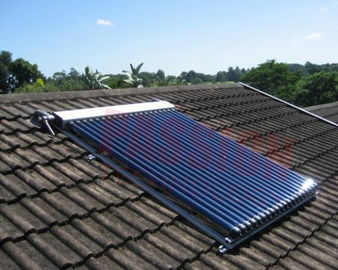

    • High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes

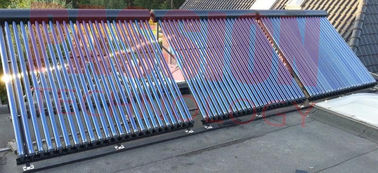

    • High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes
    • High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes
  • High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 15tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Heating Collector: 15-30 Tubes Insulation Thickness: 40mm
    Frame: Aluminum Alloy Installation: Tile Roof
    Heat Pipe: 24*90mm Condenser Copper Manifold Color: Silver,Black
    Angle Of Bracket: 0,30,45 Degree Application: Pool,Hotel,Home

    High Efficiency Aluminum Alloy Silver Black Heat Pipe Solar Collectors 10 to 30 Tubes



    Features of Pressurized Solar Collector with Heat Pipe Tube

    1. Easy installation

    2. Reliable and efficient

    3. Corrosion resistant materials

    4. Stable solar conversion during the day

    5. Most efficient and most economic model

    6. Ideal for many solar water heating applications

    7. Economic goods surpass their money with good efficiency

    8. Aluminum frame, Galvanized steel frame, or color steel frame

    9. Simple structure and working principle but the most economical



    Advantages of Heat Pipe Solar Collector

    Comparing with vacuum tube solar collector

    1. High efficient heat pipe tubes

    2. High pressure and anti-freezing collector

    3. Less heat loss for closed loop circulation

    4. No risk of tube breaking from thermal shock

    5. No risky of tube breaking from water freezing

    6. No system drainage even though one or several tubes are broken



    Comparing with flat panel solar collector

    1. Higher efficiency collector, much lower heat loss with vacuum insulation

    2. Super anti-freezing performance for heat pipes in cold weather condition

    3. No system drainage even though one or several tubes are broken

    4. More convenient in system parts carrying and installation



    Working Principle of Heat Pipe Vacuum Tube Solar Collector

    high pressure heat pipe solar collector is one of the most popular solar collector with pretty high efficiency.

    The selective coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper heat pipes by aluminum wrapping.

    the heat transfer liquid in heat pipe then vaporize and rapidly rise to the top condenser, in active system.

    a pump circulates water or heat transfer fluid through the manifold header pipe, taking away the heat to store in tank water.

    the cooled vapor in heat pipe then liquefies and returns to pipe bottom, waiting for another heat circulation in few seconds.



    Technical Data



    Heat Pipe

    Vacuum Tube

    Size (mm)



    Φ58*1800 / Φ47*1500

    Tubes (pcs)



    12 / 15 / 18 / 20 / 24 / 30

    Glass tube



    Vacuum Tube with three-target coating Cu-SS-ALN/AIN

    Heat pipe



    TU1 copper pipe, condenser Φ14mm/ Φ24mm, body Φ8mm

    Heat conductor



    Shaped aluminum wrapping tightly contact copper heat pipe

    Manifold Manifold header



    TP2 copper diameter 35mm (larger size is available)

    Manifold shell



    Anodized aluminum alloy

    Insulation High-temperature resisting fiberglass plus high-density PU foam
    Seals



    High-temperature resisting silicon seal

    Bracket Material



    Shaped strong aluminum alloy adaptable to flat & slope roof

    Tube holder



    Anti-aging UV stabilized nylon

    Heat Carrier



    Distilled water / Anti-freezing propylene glycol and water mixture

    Connection



    Φ22mm copper (1 inch male threaded size is available)

    Hail Resistance Φ25mm diameter
    Collector Angle 20 ~ 90°
    Test Pressure 12.0 bar
    Working Pressure 6.0 bar
    Anti-freezing (-) 40°C
    Model Number Solar Vacuum Tube

    Aperture

    Area/ m2

    Collector Size

    L*W*H/ mm

    Container Loading Qty /sets
    Size /mm Qty /PCS 20GP 40GP 40HQ



    PT-12

    Φ58*1800 12 1.13 1950*1040*135 162 324 394



    PT-15

    15 1.41 1950*1270*135 134 268 325



    PT-18

    18 1.69 1950*1490*135 105 210 255



    PT-20

    20 1.88 1950*1640*135 88 175 213



    PT-24

    24 2.26 1950*1940*135 82 165 200
    PT-30 30 2.82 1950*2390*135 68 136 165



    Service



    Fast response:

    Your inquiry will be replied within 24 hours via e-mail or online messenger.



    Technical support:

    More than 10years experience for product suggestion, installation guidance, market analysis, etc.



    OEM & ODM:

    OEM & ODM requirements for solar collector, storage tank,

    installation frame, and even for some outsourcing equipment.



    Sample checking:

    In spite of quality control in production, samples will be selected and installed to check prior to delivery.



    Minimum order quantity:

    We offer sample sample manufacturing for customers to check the quality and service;



    Shipping service:

    Arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc.



    Import certificates:

    Offer make Certificate Origin CO, FORM A, FORM E, FORM F, customs certification, etc.



    Remarks

    1.Lead-time: 7-15 working days after receiving payment

    2.Payment Term: T/T, L/C, Western Union

    3. Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1 year for accessories

    4. Trade Term: FOB, CFR and CIF
