Inverter Hotel Solar Submersible Deep Well Water Pump Fast Response Speed

LAR100 Series Solar Pump Inverter Hotel Pump Pool Pump Irrigation Pump Home Pump Farm Pump

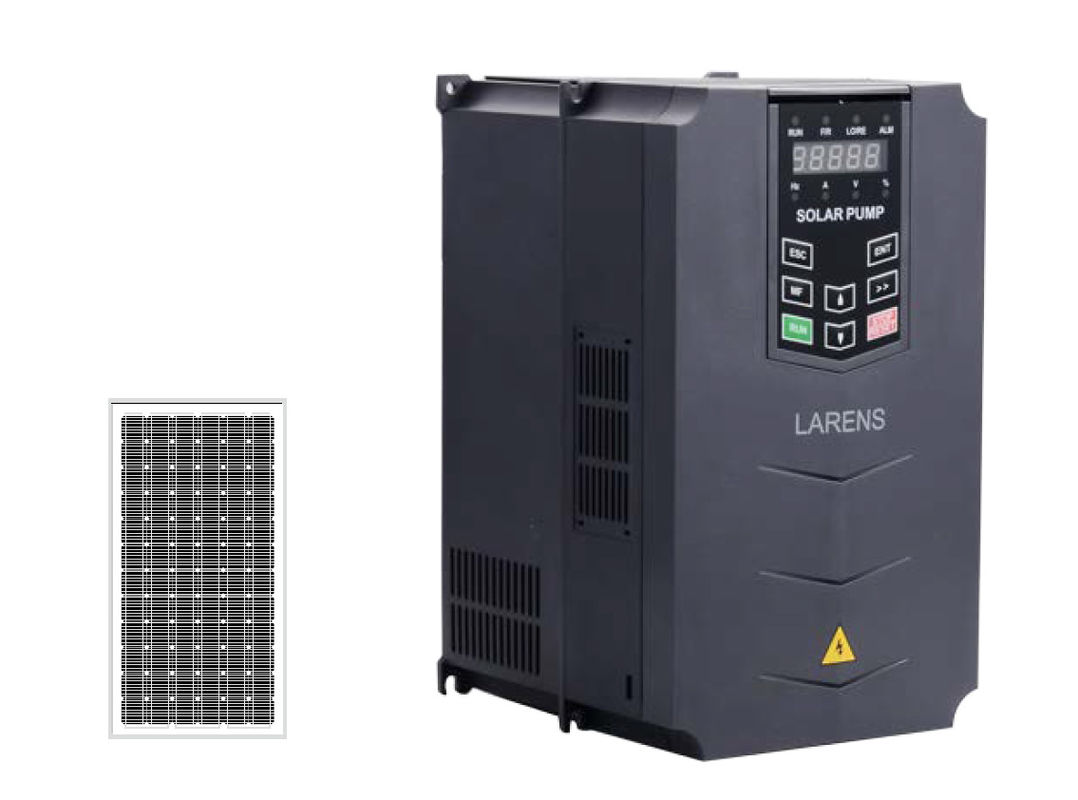

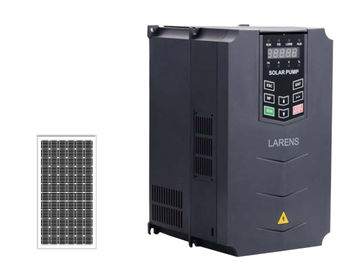

SOLAR PUMP INVERTER

1.Apply to all kinds of single phase or three phase AC induction motor

2.With Infineon IGBT, MPPT function, fast response speed

3.Good stability, high efficiency of 99.99%

4.Can be powered by both AC and DC, not use AC and DC at the same time

5.Remote control support by RS323 and RS485

6.Outdoor working environment temperature -10-+50 degree

7.Start in the morning and stop in the late afternoon full automatically

8.Full protections: overload, over current, over voltage, under voltage, short

circuit, dry pumping etc

9.Reverse protection

Model Description

Model numbers on name plate consist of numbers,symbols,and letters,to express its

respective series,suitable power type,power level and other information.

Model Analysis

LAR100 - 4T - 4.0G

①:Series Name

LAR:Larens series inverter

100:Asynchronus motor driver

200:PMSM driver

②:Voltage degree

2:220Vac

4:380Vac

6:660Vac

③:Voltage type

S:Single phase AC input

T:Three phase AC input

④:Rate Power

G:Constant torque load

P:Variable torque load

…

4.0:4.0KW

5.5:5.5KW

…

Inverter Features

◎ Apply to all kinds of single phase or 3 phase AC induction motor.

◎ With Infineon IGBT. Maximum power point tracking(MPPT)algorithm for dynamic VI, fast response speed,Good stability,

the efficiency of MPPT 99. 99%;

◎ Both AC and DC input, but can not use dc and Ac at the same time.

◎ For single phase inverter, MPPT working voltage is 180V-450V; for three phase inverter, MPPT working voltage is

250V-800V.

◎ Remote control, support RS323/RS485 protocol.

◎ Outdoor working environment temperature: -10 ～ +50℃ .

◎ Start in the morning and stop in the late afternoon full automatically.

◎ Full protections: overload, over current, over voltage, under voltage, short circuit, dry pumping etc.

◎ PV reversed connection protection.
