Home ProductsSolar Water Pumping System

3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    • 3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller
    • 3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller
  • 3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    Product Details:

    Place of Origin: CHINA
    Brand Name: OEM/PASSION
    Certification: CE
    Model Number: 3LSIS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD100-600/PC
    Packaging Details: PLYWOOD CASE
    Delivery Time: 2-10 DAYS
    Payment Terms: T/T, L/C, Western Union,PAYPAL
    Supply Ability: 20000PCS/DAY
    Contact Now
    Detailed Product Description

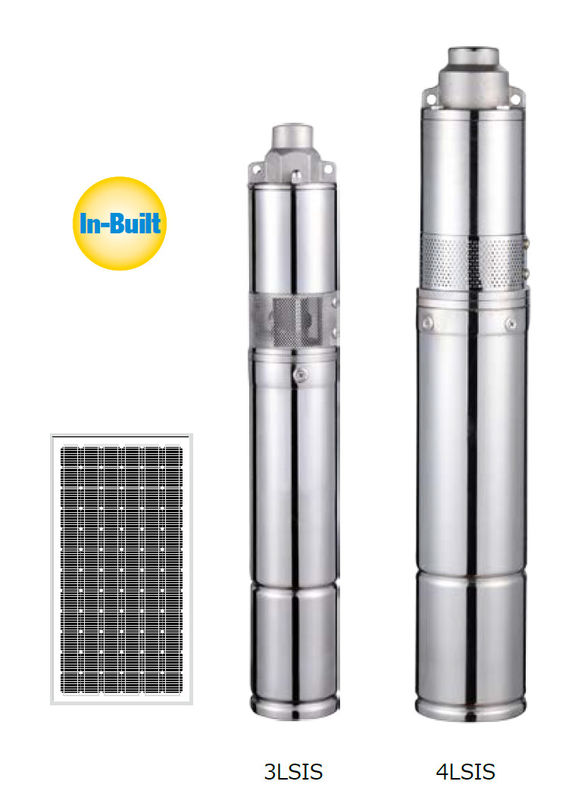

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller



    3LSIS Series Screw IN-BUILT CONTROLLER Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump



    IN-BUILT CONTROLLER SOLAR PUMP



    1.Easy installation and easy operation, connect with solar panel directly, no need

    external controller

    2.Can be powered by both solar panel and battery

    3.Brushless permanent magnetic motor, controller inside, long working life and

    high working efficiency

    4.Over voltage and under voltage protection

    5.Over current protection

    6.Locked rotor protection

    7.Lost phase protection

    8.Reverse protection

    9.MPPT function( maximum power point tracking)

    10.Low temperature rise



    Material Of Pump

    ◎ Outlet: 304 stainiess steel

    ◎ Pump head: 304 stainless steel

    ◎ Pump body: 304 stainless steel

    ◎ Impeller: Screw(rubber+ 304 stainless steel)

    ◎ Motor: Permanent magnet DC brushless motor

    ◎ Cable: 2M

    ◎ Oil cooling

    ◎ MPPT function controller

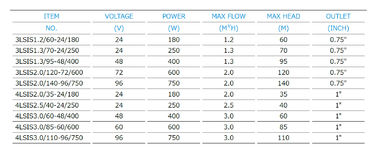

    Model Analysis

    3LSIS1.2/60-24/180

    3:3 inch pump body dimension

    LSIS: LARENS stainless steel In-Built screw solar pump

    1.2: Max flow

    60: Max head

    24: Pump voltage

    180: Pump power



    Product Features

    ◎ Only use it for clean water

    ◎ High lift but small flow, fit for home use, drinking water

    ◎ small power of solar pump needs less solar panels

    ◎ Warranty: 1 years

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller

    3LSIS Series Low Volume Solar Powered Water Pump Screw In Built Controller
