DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use
DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use

Large Image :  DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use

Product Details:
Place of Origin: CHINA
Brand Name: OEM/PASSION
Certification: CE
Model Number: LIQDX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PLYWOOD CASE
Delivery Time: 2-10 DAYS
Payment Terms: T/T, L/C, Western Union,PAYPAL
Supply Ability: 20000PCS/DAY

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use

Description
High Light:

solar powered water pumps for livestock

,

solar powered water pumping system



DC Brushless Submersible Solar Water Pump For Home Use / Farm / Domestic Use



LIQDX Series DC Brushless Submersible IN-BUILT CONTROLLER Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump



IN-BUILT CONTROLLER SOLAR PUMP



1.Easy installation and easy operation, connect with solar panel directly, no need

external controller

2.Can be powered by both solar panel and battery

3.Brushless permanent magnetic motor, controller inside, long working life and

high working efficiency

4.Over voltage and under voltage protection

5.Over current protection

6.Locked rotor protection

7.Lost phase protection

8.Reverse protection

9.MPPT function( maximum power point tracking)

10.Low temperature rise



Material Of Pump

◎ Outlet: Iron

◎ Pump head: Iron

◎ Pump body: Iron

◎ Impeller: Aluminium

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 2M

◎ MPPT function controller

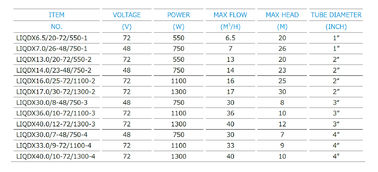

Model Analysis

LIQDX6.5/20-72/550-1

LIQDX: In-Built controller QDX series

6.5: Max flow

20: Max head

72: Pump voltage

550: Pump power

-1: Outlet(INCH)



Product Features

◎ Medium lift and large flow, fit for irrigation

◎ Warranty: 1 year

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 0

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 1

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 2

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 3

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 4

DC Brushless Submersible Solar Water Pumping System For Home Use / Farm / Domestic Use 5
