Product Details:
|
| High Light: | solar powered water pumps for livestock,solar powered water pumping system |
||
|---|---|---|---|

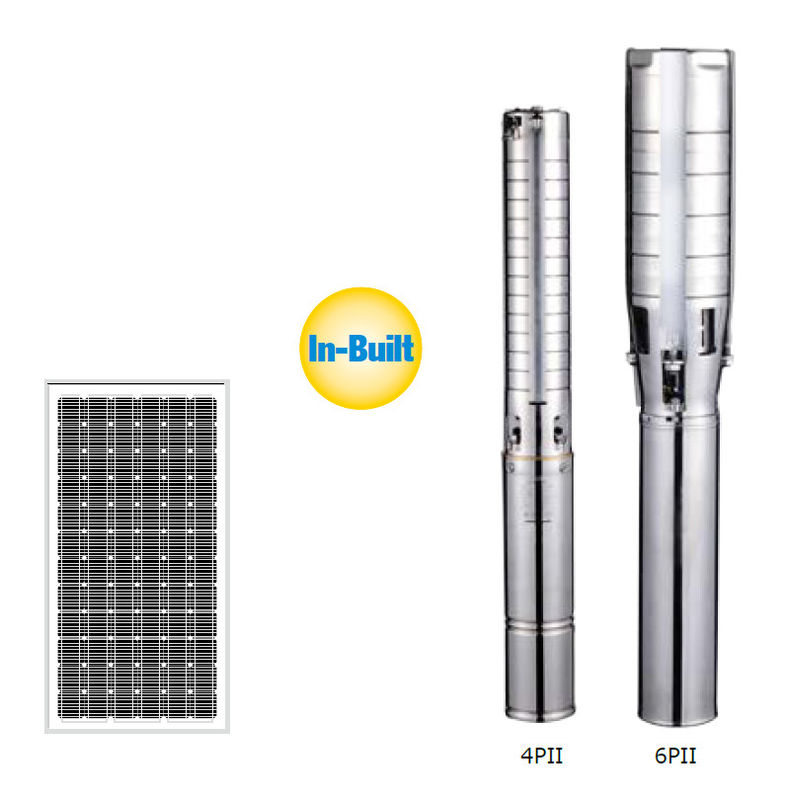

4PII Series Stainless Steel Impeller IN-BUILT CONTROLLER Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump
IN-BUILT CONTROLLER SOLAR PUMP
1.Easy installation and easy operation, connect with solar panel directly, no need
external controller
2.Can be powered by both solar panel and battery
3.Brushless permanent magnetic motor, controller inside, long working life and
high working efficiency
4.Over voltage and under voltage protection
5.Over current protection
6.Locked rotor protection
7.Lost phase protection
8.Reverse protection
9.MPPT function( maximum power point tracking)
10.Low temperature rise
Material Of Pump
◎ Outlet: 304 stainless steel
◎ Pump head: 304 stainless steel
◎ Pump body: 304 stainless steel
◎ Impeller: 304 stainless steel
◎ Motor: Permanent magnet dc brushless motor
◎ Cable: 2M
◎ Oil cooling
◎ MPPT function controller

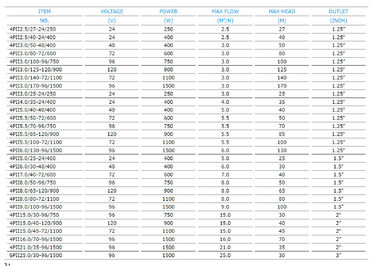

Model Analysis
4PII2.5/27-24/250
4:4 inch pump body dimension
PII: In-Built impeller solar pump
2.5: Max flow
27: Max head
24: Pump voltage
250: Pump power
Product Features
◎ Max head is 170M. max flow is 25 M3/H
◎ High lift and big flow, fit for Irrigation
◎ Warranty: 1 year
