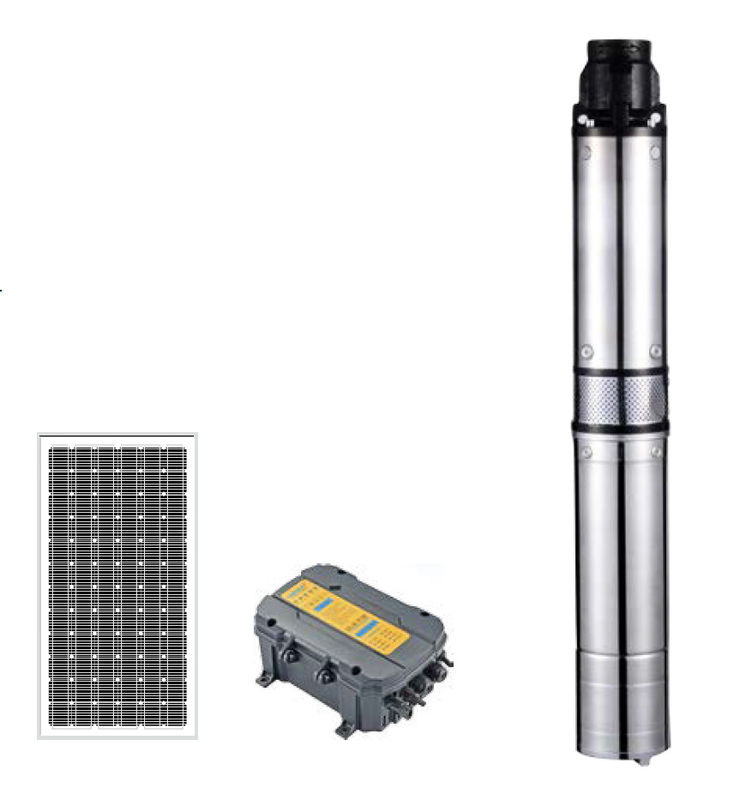

Plastic Imperller Solar Water Pumping System , Irrigation Water Pump With Solar Energy

DC Brushless Deep Well Solar Pump 4LAR lron Series Plastic Imperller Solar Pump Hotel Pump Pool Pump Irrigation Pump

TRADITIONAL BRUSHLESS SOLAR PUMP

1. Can be powered by both solar panel and battery

2. Enviromental protection, clean energy

3. High efficiency permanent magnetic motor, efficiency improved by 20%-40%

4. Over voltage and under voltage protection

5. Over current protection

6. Locked rotor protection

7. Lost phase protection

8. Low water level sensor protection

9. High water level sensor protection

10. Reverse protection

11. MPPT function( maximum power point tracking)

12. Low temperature rise

13. Remote control system (option)

Material Of Pump

◎ Outlet: Iron

◎ Pump head: Iron

◎ Pump body: stainless steel

◎ Impeller: Plastic

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 2M

◎ Oil cooling

◎ MPPT function controller

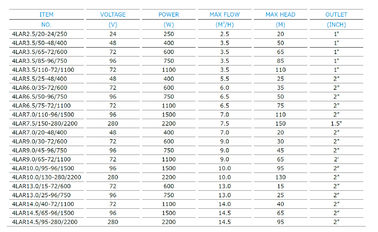

Model Analysis

4LAR2.5/20-24/250

4:4 inch pump body dimension

LAR:LARENS solar pump

2.5: Max flow

20: Max head

24: Pump voltage

250: Pump power

Product Features

◎ Only use it for clean w

◎ High lift and medium flow, fit for

home use and lrrigation
