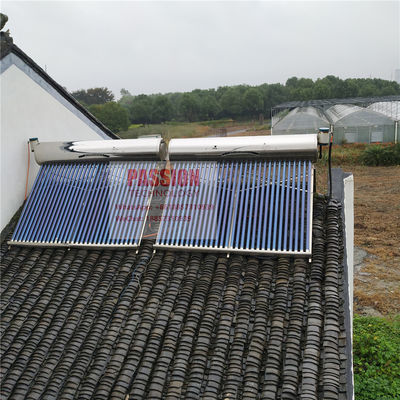

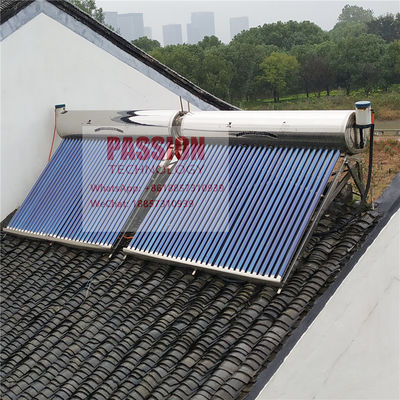

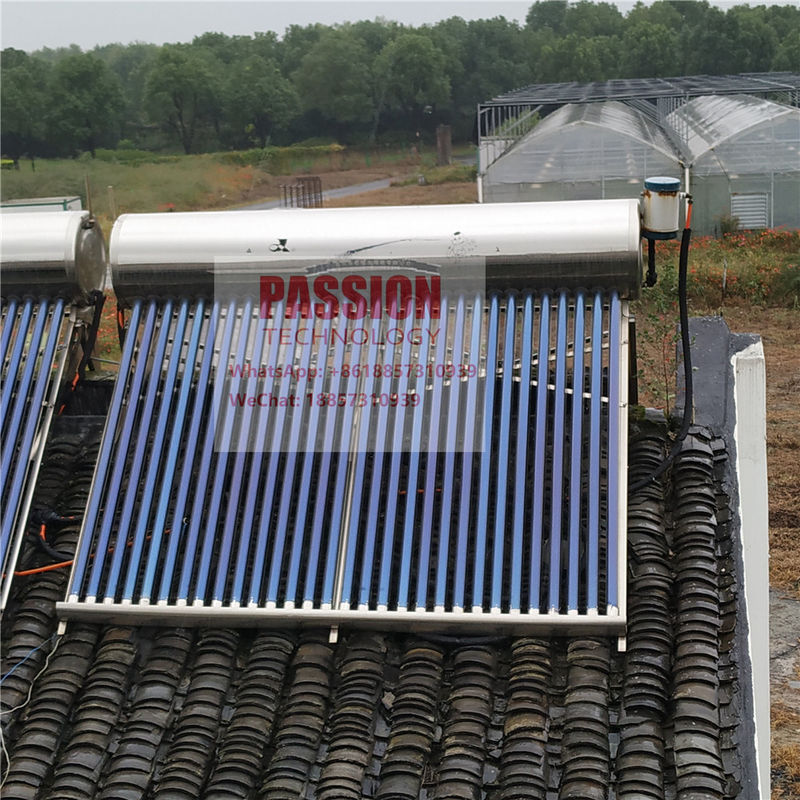

300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen

300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen

    • 300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen
    • 300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen
    • 300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen
  • 300L 304 Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 300L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Capacity: 300L Use: Shower Kitchen
    Insulation: 55mm High Pressure Polyurethane Foam Structure: Compact
    Type: Non Pressurized Outer Tank: Stainless Steel
    Inner Tank: Stainless Steel 304 Tube: Vacuum Tube
    High Light:

    300L Vacuum Tube Solar Water Heater

    ,

    OEM Vacuum Tube Solar Water Heater

    ,

    SUS304 solar roof water heater

    300L Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen



    CE approved
    5 years guarantee,15 years lifetime.
    OEM approved

    solar water heater



    Working principle:



    The series employs the natural convection phenomenon called “thermosyphon”.

    The evacuated tubes convert solar energy into heat energy and transfers heat to water.

    The lighter hot water in tubes rises to the storage tank, while the cold water at the bottom of the tank flows into the tubes, creating continuous circulation.

    The convection flow will continue as long as the sun is heating the collector.




    Item name

    Vacuum tube

    Tank

    capacity

    Diameter length quantity
    Millimeter Millimeter tube liters

    Color steel appearance

    Stainless / galvanized steel covered appearance

    Dia 47

    1500

    5-50 50L-500L



    Dia 58



    1800 5-50 50L-500L



    Specification:



    1. Inner water tank: SUS304-2B Food Grade stainless steel plate(0.4-0.5mm)

    2.Outer shell: Anti-oxidized Galvanized color steel plate(0.4mm)/PVDF coating steel plate(0.4mm)/SUS304-ABstainless steel(0.4mm)

    3. Bracket: stainless steel plate(1.0mm)/Aluminum alloy profiled bar (1.5-2.0mm) /Anti-oxidized Galvanized steel plate ( 1.2mm)

    4. Tank insulation: Polyurethane integral foaming, 55-60mm thickness

    5. Sealed circle: silicon rubber

    6. Heat preservation time: 60-72 hours

    7. Wind resistance: 30m/s, Hail resistance:25mm

    8. Working temperature:-20~250 degree centigrade

    9. Maximum pressure: 0.5-0.6 Mpa

    10. Usual vacuum tube dimension: D47x1500mm/ D58*1800mm

    11. Tube coating: Magnetic-controlled Al-N-Al sputtering all glass evacuated tubes ,Three-target Cu/SS-ALN/ALN vacuum tube, Three-target Cu/Ti-ALN/ALN vacuum tube.

    12. Tubes/set: 8/10/12/15/17/18/20/25/30/32/35

    13.Dual-purpose bracket for both flat and sloping roof, and with different angle for different countries. Operation and installation documents are free.



    Feature:



    1. High quality SUS304-2B stainless steel for water tank, processed by argon arc welding technique, under strict quality control system, tank will never rust and leak.

    2. High borosilicate all glass vacuum tube has selective absorbing surface, absorptivity above 0.93 and emissivity below 0.05, it enables vacuum tubes to have good absorb and transmit performance.

    3. Request for customized type are accepted. Simple structure, Dual-purpose brackets for both flat and inclined roof.

    4. To serve Europe, America, Africa clients better, at work-in Europe work time.

    5. Feeding water automatically with intelligent controller, and ensure the outlet water with stable temperature.

    6. Still in using when the water supplier is cut off.

    7. Optional accessories: assistant tank, electric backup heater, intelligent controller, magnesium bar and automatic filling valve. They are optional instead of compulsory, client can choose some or none according to actual need.



    Payment Terms L/C, T/T
    Minimum Order 2 sets
    Lead Time / Delivery Time 15 Day(s)
    Sample Available YES
    Delivery Details after receipt of payment
    Port of Lading Ningbo / Shanghai
    Shipping by sea
    Packing export carton
    Target Market(s) Africa(except Middle East), Central & Southern Asia, Latin America, Southeast Asia
