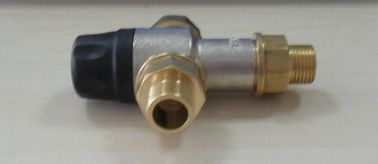

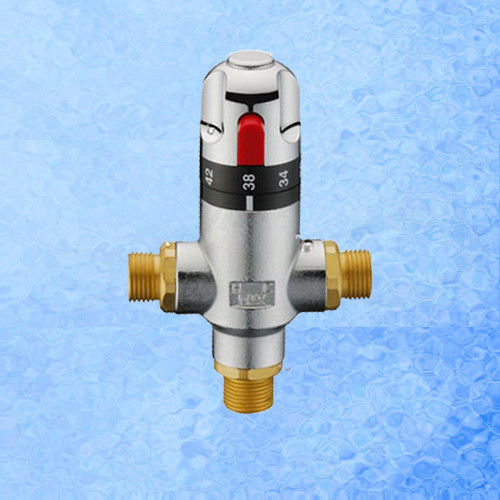

Brass Adjustable Water Thermostatic Mixing Valve

Brass Adjustable Water Thermostatic Mixing Valve
Brass Adjustable Water Thermostatic Mixing Valve Brass Adjustable Water Thermostatic Mixing Valve Brass Adjustable Water Thermostatic Mixing Valve

Large Image :  Brass Adjustable Water Thermostatic Mixing Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: Thermostatic Mixing Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD90-500
Packaging Details: Cartons
Delivery Time: 5 days
Supply Ability: 1000units/day

Brass Adjustable Water Thermostatic Mixing Valve

Description
Size: G1/2",G3/4",G1" Material: Brass
Type: Solar Water Heater Accessories Nominal Pressure: 1.6Mpa
Working Media: Water, Oil, Gas Working Temperature: -20C≤t≤150C
Temp Adjust Range: 20-50C Pressure Test: In Accord With ISO5208
High Light:

hot water heater accessories

,

solar hot water spare parts

Solar Water Heater Accessories New Brass Adjustable Water Thermostatic Mixing Valve



Technology parameters:

Mixed water temperature range:35----60℃

set temperature:55℃

Mixed water temperature accuracy:±2℃

Hot water temperature range:55-100℃

Cold water temperature range:5-25℃

Cold water, hot water working pressure range: 0.5--5bar

Maximum allowable allows the static pressure:16bar

Maximum flow:40L/min

Specification: DN15,DN20

Product standards:EN1111,AS4032

Mixing valve materail:HPb59-1;

Piston material:PPO

Spring material:stainless steel304;

Sealing pieces of material:EPDM

Handle Material:ABS

Surface treatment:Sandblasted nickel-plated;





Installation



Before installing the mixing valve,cleaning of the system and make sure no Impurities in it;

In order to make the mixing valve working normally, It should be installed according to the drawing as follow; hot water pipe must connect with A section marked with an "H" and cold water pipe must connect with A section marked with an "C"; Mixing pipe can connect with A section marked with an "MIX"; Mixing valve can be installed Horizontal and vertical installation



Brass Adjustable Water Thermostatic Mixing Valve 0
