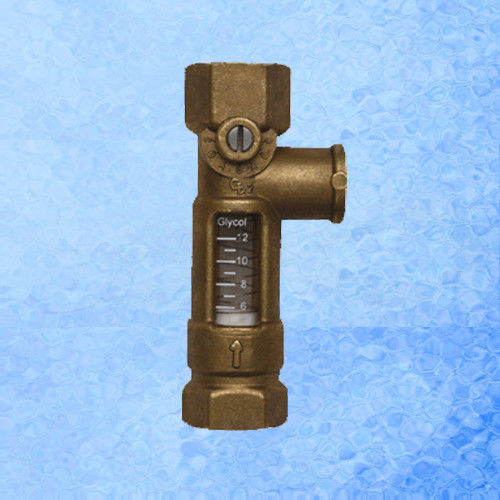

High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve

High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve

    • High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve
    • High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve
  • High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE
    Model Number: PT Valve

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD90-500
    Packaging Details: Cartons
    Delivery Time: 5 days
    Supply Ability: 1000units/day
    Contact Now
    Detailed Product Description
    Use: Solar Water Heater Accessories Size: 6-12L/min BSP G3/4"
    Material: Brass Application: Plumbing
    Accessories: Balancing Valve Working Temperature: 0≤t≤90
    Valve Housing And Cover : Brass P-CuZn40PB2 Measurement Range: 2-8 (l/min)

    Solar Water Heater Accessories 6-12L/min BSP G3/4" Direct Reading Brass Mechanical Flow Meter for Balancing Valve



    Description: Brass Mechanical Flow Meter

    Model: MS43TA

    Size:G3/4" DN20mm;

    Material: Brass

    Application: Plumbing

    Nominal Pressure:1Mpa

    Working Media: water,

    Working temperature: 0≤t≤90

    Pressure test in accord with ISO5208

    Pipe thread standard: ISO228



    Model:

    USC-MS21TA Mechanical Flow Meter Balance Valve



    Application:

    solar water heater pump station



    Direct reading flow rate valve can help determining the most efficient flow rate for the system, reducing the waste of energy.



    It can be widely used for water with anti corrosion and anticoagulant, cold or hot water suitable for drinking.



    Flow meter offers a quick, easy and accurate method of adjusting the flow rates.



    Features:



    1. Accurate and quick balancing without diagrams, tables or measuring devices

    2. The flow rate is displayed directly in l /min

    3. Regulating valve with adjustment scale

    4. Regulating valve with isolating facility



    Technical data



    1. Size: BSP: G3/4”* G1/2”

    2. Measurement range: 2-8 (l/min)

    3. Max. input working pressure: 10 bar

    4. Max. water temperature: 115 centigrade

    5. Valve housing and cover: Brass P-CuZn40PB2

    6. Material: Brass or Brass

    7. Floating ball: Ethylene-propylene

    8. Dimension: 80.5*27mm

    9. Weight: 164g



    Installation:



    The flow meter should be installed horizontally or vertically and should be in parallel with the pipeline.



    Standards:

    The flow meter is designed and tested according Switzerland taconova AV23 Balancing vales SETTER Inline.

    High Accurate Brass Mechanical Flow Meter Direct Reading For Balancing Valve
