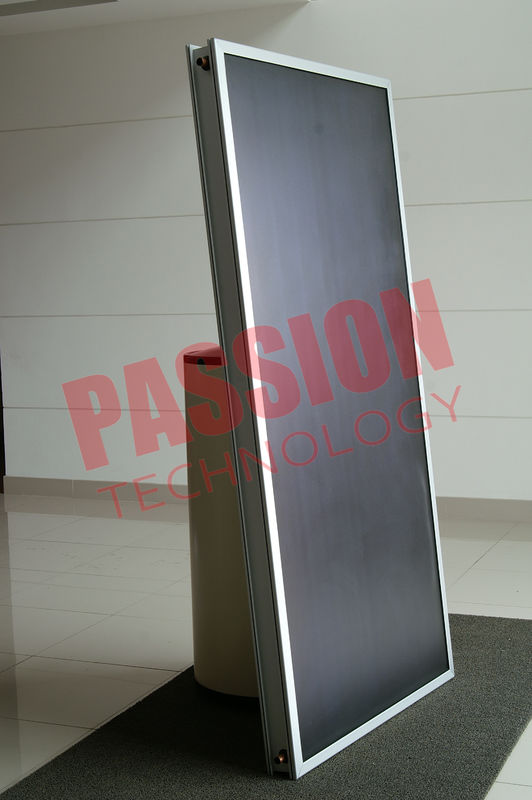

Black Chrome Split Flat Plate Solar Water Heater 150 Liter OEM / ODM Available

Black Chrome Split Flat Plate Solar Water Heater 150 Liter OEM / ODM Available

    • Black Chrome Split Flat Plate Solar Water Heater 150 Liter OEM / ODM Available
    • Black Chrome Split Flat Plate Solar Water Heater 150 Liter OEM / ODM Available
  • Black Chrome Split Flat Plate Solar Water Heater 150 Liter OEM / ODM Available

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 150L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Capacity: 150L Structure: Split
    Warranty: 6 Years Collector: Flat Plate
    High ROI(Return On Investment): 1 To 3 Year Pay Back Time Flat Plate: Black Chrome
    Outer Tank: Color Steel Inner Tank: Stainless Steel

    150L Stainless Steel Split Solar Water Heater with High Efficiency Black Chrome Flat Plate



    Working Principle



    1. Split pressurized flat plate solar water heater system incorporates a flat plate solar collector, pressure hot water tank, pump station and accessories.

    2. An internal coil is pre-installed inside storage tank as heat exchanger.

    3. A heat-transfer liquid circulate through flat plate collector and tank coil to make heat-exchange between the closed loop and main tank water.

    4. An additional tank coil can be used to form a closed circulation loop for house or floor or pool water heating.

    5. There are many different configurations possible, the choice of design will depend on the

    6. purpose of the system, climate, space limitations and many other factors.



    Flat Plate Solar Collector



    1. Flat plate solar thermal collector is suitable for residential or commercial solar water heating projects.

    2. The selective blue tinox coated absorber sheet absorbs up to 95% of available sunlight converting into usable heat.



    Pressure Hot Water Tank



    A pressure hot water tank with inside heat exchange coil is usually involved in closed loop solar water heater, the storage tank can be placed anywhere inside house.

    Depending on the system design a single tank may incorporate both solar and auxiliary heating (gas, electric etc) or a dedicated solar tank may supply pre-heated water to a second tank that is heated by traditional energy sources.



    1. Water storage tank: Food-grade stainless steel or enamel coated tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures no leakage and long lifespan more than 30 years.

    2. The hot water tanks have all been immersed in water and tested with 12 bar pressure to ensure no water leakage in high pressure condition.

    3. Heat exchanger copper coil inside tank can be connected with collector to form closed-loop for solar water heating.

    4. Insulation Layer: High-density polyurethane Integrated-foaming with twice slaking treatment, preserves water temperature constantly

    5. Tank shell: Painted color steel plate with powder painting or baking treatment, much more durable and beautiful.

    6. Accessories: Usually an electric heater is installed in tank for backup heating, and anode magnesium for corrosion resistance, T/P valve and check valve to limit the pressure inside tank for excess pressure protection.



    Solar Pump Station

    1. The solar pump station is an integrated control system consists of intelligent solar controller, circulating pump, expansion tank, pressure gauge, flow meter, relief valve, check valve, etc.

    2. The solar pump station makes an simple system installation and intelligent system operation, when temperature discrepancy between heat-transfer medium and main tank water reaches set value.

    3. The controller shall start the circulation pump automatically for heat exchange, or start back up heating device to assist solar water heating when colder water presents.



    Technical Data



    Flat Plate
    Solar Collector

    Size (mm) 2000*1060*82 / 2000*1560*82 / 2000*1060*95
    Glazing Low-iron tempered glass with transmittance ≥91%
    Absorber Coating Selective Blue Tinox coating with absorptivity ≥95±2%
    Absorber Aluminum/ Copper sheet welded with copper header & riser tubes
    Insulation High-density polyurethane & fiber glass
    Casing Anodized aluminum alloy with anti-aging elastic sealing

    Pressure
    Water Tank

    Capacity 100L ~ 10,000L for hot water storage tank
    Inner tank Food-grade stainless steel SUS304-2B / SUS316 / enamel
    Heat exchanger Copper pipe coil firmly fixed inside storage tank
    Insulation High-density polyurethane foam with 80~90 hours heat preservation
    Tank shell Painted color steel ( stainless steel is available )
    Accessories Electrical heater, Magnesium anode, T/P valve, Check valve
    Pump Station Solar controller integrated with circulation pump, expansion tank, pressure meter & valves
    Auxiliary Equipments Insulated pipe and fittings, Anti-freeze heat carrier, Installation tools, etc.
    Heat Carrier Propylene glycol and water mixture
    Collector Angle 0 ~ 90°
    Anti-freezing (-) 40°C
    Working Pressure 6.0 bar
    Model Number Flat Plate Solar Collector

    Aperture

    Area/ m2

    Tank

    Liter

    Container Loading Qty /sets
    Size /mm Qty /pcs 20GP 40GP 40HQ
    PT-C200 2000*1560*82 1 3 200 31 62 76
    PT-C250 2000*1060*82 2 4 250 26 51 62
    PT-C300 2 4 300 23 46 56
    PT-C400 3 6 400 18 36 43
    PT-C500 4 8 500 14 29 35
    PT-C1000 8 16 1000 6 13 16




    Comparing with Compact non-pressure flat plate solar water heater



    1. Anti-freezing liquid for in-direct solar water heating, more safe, fast, anti-freezing;

    2. No tank drainage even though flat plate is broken;

    3. High pressure tank with direct city water supply and high pressure hot water outflow;

    4. Multifunction tank for bathing, washing, domestic heating, pool heating, etc.

    5. Less heat loss with safety valve closed storage tank;

    6. Collector is adaptable to flat or slope roof/ wall/ balcony, tank is placed randomly indoors;

    7. Heat exchanger inside tank for indirect closed loop solar water heating, more clean hot water;

    8. More beautiful combination with building structure;

    9. More intelligent solar water heating system.



    Comparing with compact pressure flat plate solar water heater

    1. Anti-freezing heat carrier in flat plate loop for extremely cold weather condition.

    2. Multifunction tank for bathing, washing, domestic heating, pool heating, etc.

    3. Heat exchanger inside tank for indirect closed loop solar water heating, more clean hot water;

    4. More beautiful installation with storage tank indoors and collector panel on roof/ wall/ balcony;

    5. More intelligent solar water heating system.



    Comparing with split pressure tube solar water heater

    1. More simple collector installation;

    2. More strong and safe collector with tempered glass glazing;

    3. Flat plate is more economical than heat pipe collector;

    4. Traditional solar collector with more market share;

    5. Enjoys much more popularity in warm area;

    6. No working angle limitation.



    Auxiliary Equipment

    Insulated pipe and fittings: Supply copper & stainless pipe & fittings with/ without insulation.
    Anti-freeze heat carrier: Medical grade heat carrier which is super is anti-freezing and heat transferring.
    Installation tools: Including pipe cutter, pipe hammer, carrier filling station



    Warranty

    10 years international responsibility for Split Closed Loop Flat Plate Solar Water Heater and Flat Plate Solar Collectors.
