Safety Solar Pump Station For Solar Thermal Water Heating System SR21L

Safety Solar Pump Station For Solar Thermal Water Heating System SR21L

    • Safety Solar Pump Station For Solar Thermal Water Heating System SR21L
    • Safety Solar Pump Station For Solar Thermal Water Heating System SR21L
    • Safety Solar Pump Station For Solar Thermal Water Heating System SR21L
  • Safety Solar Pump Station For Solar Thermal Water Heating System SR21L

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: SR21L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 3 working days
    Payment Terms: L/C, T/T
    Supply Ability: 10000units/month
    Contact Now
    Detailed Product Description
    Rated Voltage: 220V/110V Application: Solar Pump Station
    Model: SR21L Pump: WILO
    Using: Split Solar Water Heater System Colour: Black
    Pipe: Copper Accessories: Controller And Pump

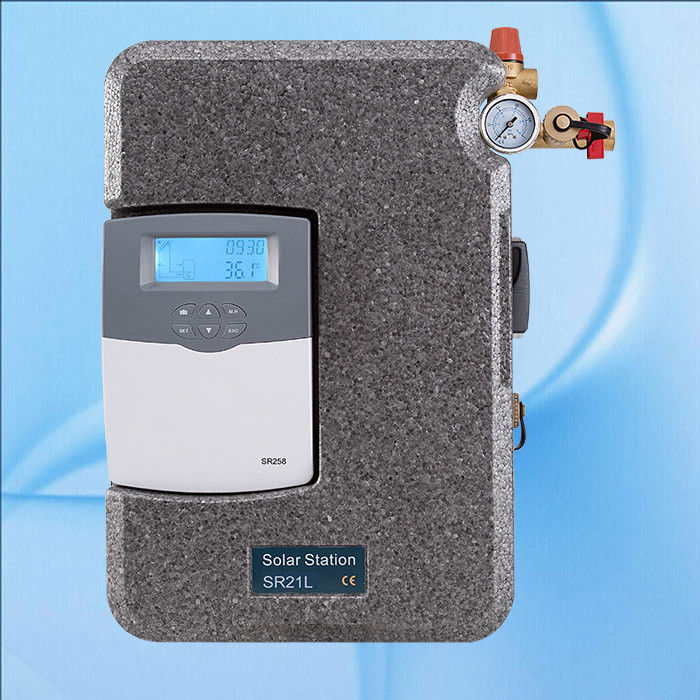

    Solar Pump Station SR21L for Split Solar Water Heater System including Controller and Pump



    Solar pump station with integrated controller
     Integrated controller
     Outstanding design
     Safety assembly with safety valve
     High-Quality casing for reduction of heat loses
     Flow rate checked


    1.1 Scope of delivery
     1* solar pump station
     1* integrated solar controller SR258
     1* wall mounting bracket
     1* accessory bag
     1* manual



    Station dimensions:
     Height ( with insulation):450mm
     Width (with insulation):300mm
     Depth (with insulation):158mm
     Distance centre:1600mm
     Distance axis/wall:55mm
     Pipe connections: 3/4’ IT
     Connection for expansion vessel set: 3/4’ET,flat sealing
     Outlet safety valve: 1/2 IT



    Specification of components
    1) Non-return valve: opening pressure 200mmH 2 O
    2) Connector of flow outlet (to collector):3/4’IT
    3) Safety valve: 6bar
    4) Filling connector
    5) Connector of expansion vessel
    6) Manometer: 0-6bar
    7) Sensor on return pipe (from tank to collector),NTC10K ( optional)
    8) Circuit pump: Wilo 15-6 or Groundfos 15-65
    9) Connector of drainage valve
    10) Digital flow counter Return outlet connection (from collector): 3/4 IT
    11) Connector of flow inlet (from tank):3/4’ IT
    12) Connector of flow outlet (to tank):3/4’ IT ( no this connector on SR11L station)
    13) Air separator
    14) Manual air bleeder
    15) Sensor on flow pipe (from collector to tank),NTC10K ( optional) ( no sensor on SR11L station)
    16) Connector of flow inlet (from collector):3/4’ IT


    Material:
    Fitting: Brass
    Seals: PTFE
    Insulation: EPP, λ= 0.041W/ (m.K)
    1.6 Technical Data
    Max. permitted pressure: 6bar
    Max. permitted operating temperature: 120 o C
    Digital flow rate FRT: 1-20L/Min
