Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation

Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation

    • Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation
    • Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation
    • Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation
  • Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 30tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Heating Collector: 30 Tubes Insulation Layer: 40mm Rock Wool
    Frame: Aluminum Alloy Assembly: Flat Roof
    Collector: U Pipe Manifold Color: Silver
    Installation: Wall Mounting Application: Room Heating

    Thermosiphon Copper Coil U Pipe Solar Collector Free Standing Wall Mounting Installation



    Specifications



    1. with EN12975 certification

    2. -20 degree is ok

    3. easy installation

    4. absorber area efficiency more than 70%



    Features


    1) Reliable and efficient twin-glass solar tubes
    2) U type copper pipe for rapid heat transfer
    3) Integrated package
    4) Free maintenance
    5) Suitable for mains pressure water
    6) Corrosion resistant silver brazed copper header
    7) The surface is made of aluminum board
    8) Powder coated (black or silver) aluminum casing
    9) Stable solar conversion during the day
    10) The perfect solar collector for domestic solar water heater systems
    11) Ideal for commercial solar water heating applications

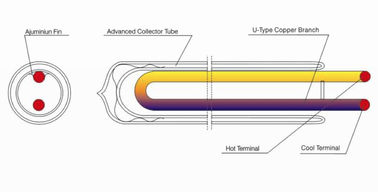

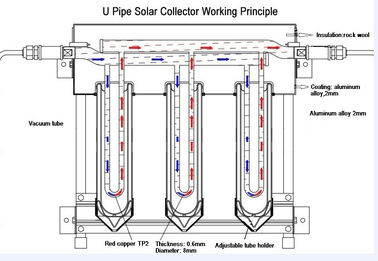

    How it works
    1) The operation of the solar collector is very simple;
    2) Solar absorption: solar radiation is absorbed by the vacuum tubes
    and converted into heat energy;
    3) Heat energy transfer: U type copper pipe conduct the heat energy from the
    vacuum tube to the header copper pipe of solar collector;
    4) Heat energy storage: water is circulated through the header copper

    pipe of solar collector, via intermittent pump cycling. Each time the water

    circulates through the header copper pipe, the temperatures is raised by 5-10°C.

    Throughout the day, the water in the tank is gradually heated.



    Parameter table



    Model PT-5818-18
    Numbers of Tubes 18(10,12,15,18,20)
    Dimension & Testing Data
    Length 1.97 m
    Width 1.475 m
    Absorber area 1,449
    Inlet/outlet Connection 22mm
    Working/Testing pressure 6 bar/12 bar
    Max Testing Pressure 12 bar
    Stagnation Temperature 221°C
    Packing Dimension & Weight
    Manifold and U-pipe Packing 2020*1550*190mm
    Tubes Packing 1880*340*250mm
    Total Packing Volume 0.68m3
    Weight 55kgs
    Certificates EN12975-1,2 SOLAR KEYMARK,SRCC.CE,ISO9001
    Material
    Evacuated Tube High borosilicate glass 3.3, thickness:1.6mm
    Size 58*1800mm
    Coating ALN/SS-ALN/CU (Three target vacuum tube)
    U Pipe Material TP2 copper
    U Pipe Length 1750mm
    U Pipe Diameter 8mm,thickness:0.6mm
    Manifold Header Pipe TP2 copper 22mm, thickness 1.0mm
    Manifold Casing Anodized aluminum alloy,thickness:2.0mm
    Frame/bracket Aluminium alloy,1.5mm
    Insulation Rock wool
    Tube Holder/ Seals UV stabilized nylon/ Silicon seal
    Sheets Material:Aluminum 3003,Length:1620m,thickness:0.25mm
    Limited Warranty 10years



    QC Team



    A QC team with more than 10years’ experience and technical personnel. To ensure 100% products checking.

    Material: Strictly control of material purchasing and using, meet international requested standards

    Semi-finished products inspection: Product inspection before 100% finished, such as visual inspection, leaking and pressure testing, comprehensive safety test and so on.

    Production line test: With work team or data engineer who will inspect machines and lines at fixed period.

    Finished product inspection: Quality and property test before products are packed and loaded.



    Packing and shipping:

    MOQ: 20'GP container (Sample is available)

    Warranty: 10 years guarantee for whole set solar water heater

    Payment term: 30% deposit by TT, Balance for BL by TT or LC

    Delivery time: 7 days after confirmed

    Port of departure: Shanghai or Ningbo

    Supply ability: 8000 sets per month

    Package: Standard export cartons



    Payment term:

    1. T/T 30% Deposit in advance and balance should be paid after receiving the B/L copy.

    2. L/C at sight (if your quantity reaches 5*40’ HQ container)

    3. Sample order or LCL: we accept western union and one touch business.
