Black Coating 10 Tube Solar Collector , U Pipe Solar Water Collector

Black Coating 10 Tube Solar Collector , U Pipe Solar Water Collector

    • Black Coating 10 Tube Solar Collector , U Pipe Solar Water Collector
    • Black Coating 10 Tube Solar Collector , U Pipe Solar Water Collector
  • Black Coating 10 Tube Solar Collector , U Pipe Solar Water Collector

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 10tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Tubes: 10 Tubes Insulation: Rock Wool+ Polyurethane
    Frame: Aluminum Alloy Installation: Pitched Roof
    Collector: U Pipe Manifold Color: Black
    Angle Of Bracket: 20 Degree Application: Residential Heating

    10 Tubes Black Coating U Pipe Solar Collector For Residential Heating Sloped Roof



    Description:

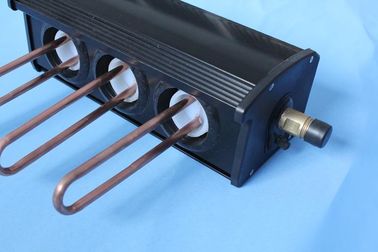

    1. The evacuated tubes which are slid onto a U-shaped heat transfer unit absorbs the sun energy and transform it into heat .As a result the liquid gets heated .

    When required temperature is reached ,the pump in the solar circuit is activated by the controller and transports the heat to the hot water storage tank or the heating system.

    2. Suitable for mains pressure water.

    3. Since there is no water in the tubes itself ,the tubes will not break in winter.

    4. The collector is mountable on the sloped or flat roofs or on a facade. The installation is the most flexible since it can work well in any installation angle.

    5. System is reliable and efficient .

    6. It can be combined with an existing pipeline.

    7. It can be operated even if one tube breaks.



    U Pipe Solar Collector
    Absorber Coating SS-ALNx/Cu
    Absorption ≥92%
    Emission ≤8%
    Vacuum Tube Diameter (mm) 58
    U Pipe 8mm Copper Pipe
    Vacuum Tube Number 10 12 16 18 20
    Distance between Pipes(mm) 80
    Glass Tube Material Borosilicate Glass 3.3
    Thermal Expansion coefficient of Glass(/K) (3.3-0.1)×10-6/K
    Vacuum Grade (bar) 10-6bar
    Manifold
    Shell Material Aluminum Alloy
    Inlet and Outlet 22mm
    Limitation
    Stagnation Temperature (°C) >200℃
    Freezing Resistance >-20℃
    Hail Resistance 25mm
    Maximum Working Pressure(bar) 6bar
    Allowed Heat Transfer Medium Water



    Packaging & Delivery



    Packaging Details:water tank is 1 PC/Carton, solar panel is 1 PC/Carton. Sample put in wooden case, Standard package carton for sea delivery.

    Delivery Detail:By T/T,within 5 days after received part of deposit.



    Payment term:

    1. T/T 30% Deposit in advance and balance should be paid after receiving the B/L copy.

    2. L/C at sight (if your quantity reaches 5*40’ HQ container)

    3. Sample order or LCL: we accept western union and one touch business.



    Remark



    1. U pipe vacuum tube solar collector

    2..Max.service temperature (degree):95°

    3. Mainfold connection :22mm

    4. Max. stagnation temperature (degree)252°

    5. Test temperature (Pa):1Mpa



    FAQ:



    Q1: Can I have a sample for testing?

    A: Actually we think samples are not very important.You can buy from anywhere.

    But we think our goods will better then any others.

    Samples will be 10% higher then the cargo.



    Q2: Can I add my logo on the Solar water heaters?

    A: Yes,OEM and ODM are available for us.

    But you should send us the Trademark authorization letter.



    Q3: How can i get the after-service?

    A: We will send you the spare parts by free if the problems caused by us.

    If it is the men-made problems,we also send the spare parts,but you should pay.

    For our range hood motors it is 3-5 years free maintenance.



    Q4: Can I have a visit to your factory before the order?

    A: Sure,welcome to visit our factory.
