Product Details:
|
| Collector Tubes: | 24 Tubes | Insulation: | Rock Wool |
|---|---|---|---|
| Housing Material: | Aluminum Alloy | Assembly: | Pitched Roof |
| Heat Pipe: | 14mm Condenser Copper | Manifold Color: | Black |
| Angle Of Bracket: | 45 Degree | Application: | House Used |
| High Light: | heat pipe vacuum tube solar collector,solar hot water collector |
||

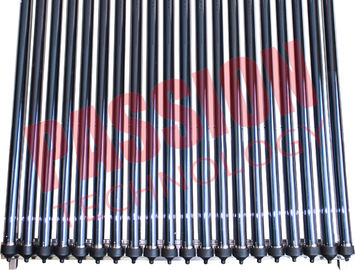

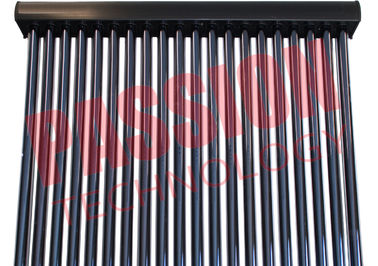

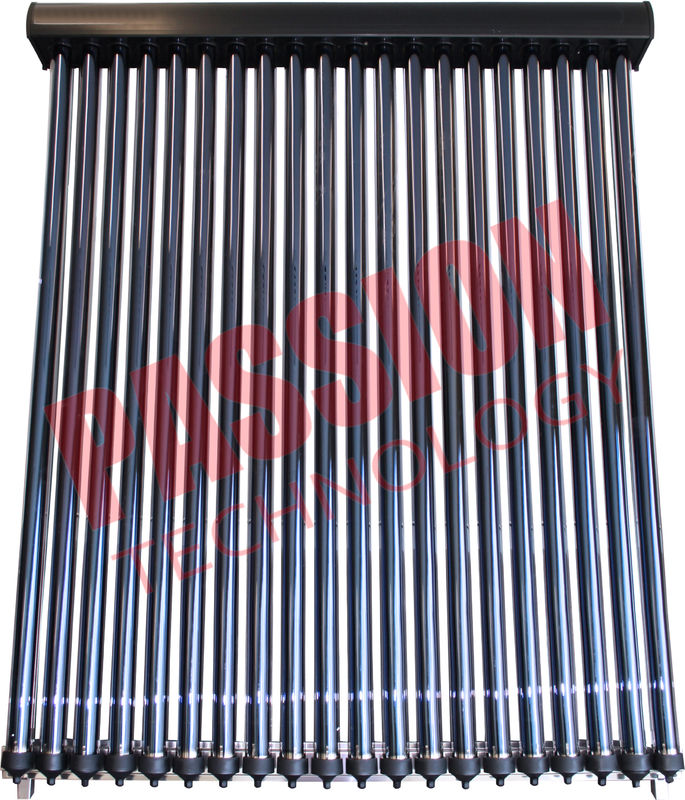

High Heat Efficiency Black Aluminum Alloy Heat Pipe Solar Collector for House Used
Specification
1. Inner manifold: SUS304 food grade stainess steel ,0.41-0.56 mm
2. Outer manifold: coloured steel or stainless steel ,0.35mm
3. Thermal insulation layer:Polyurethane,40mm-50mm
4. Frame:galvanized ,1.4mm, 170*378 cm
5. Vacuum tube: three Target vacuum tube,58*1800*50
6. Inlet and outlet Male:1/2 or 3/4 inch
7. Base cover size: 15cm*16cm,16*18cm,17*18cm
Advantage
1. Inner manifold is adopted automatic high frequency welding machine to weld,which is enouth firm and reliability .
2. Heat insulation layer is adopted imported polyurethane whole machine to foam ,compact character and perfect heat preservation effect.
3. Pressurized and non-pressurized system are available.
4. Widely suitable for dormitory ,hotel,swimming pool,school,hospital and other commercial using water.
5. With vacuum tube absorbing sun radiation ,the heat collecting efficiency is so rapid.
6. There is no damage to the beauty of building .
7. Can be installed on flat and slope roof, also on the ground.
8. We have single wing and double wings solar collector for non-pressurized type.
9. We have designed several solar heating projects, so we have lots of experience.
If you have any interest, please let us know, we will design a satisfactory project for you.
| Heat pipe Solar collector | |
| Technical Data | |
| Hydraulic Connections | G3/4" male thread |
| Maximum operation pressure(Bar) | 6 |
| Test pressure(Bar) | 9 |
| Heat transfer fluid | Anti-freeze Fluid (Water-Glycol) |
| Max.working temp.(°C) | 250 |
| ΔT | 35°C(Radiation>=800w/m2.day) |
| Collector efficiency | >=75% |
| Medium | Pure water |
| Evacuated Tube | AL-N-AL single target tube |
| Start-up Temperature of heat pipe | <=30°C |
| warranty | 5 years |
| Material Details | |
| Flow type | Heat pipe |
| Heat pipe material | T2 copper |
| Heat pipe size | Top: Ø14* 1mm; Body: Ø8* 0.7mm |
| Coating of absorber on glass tube | Al-N-Al |
| fins around heat pipe | single long Aluminum(1.68m) |
| Manifold pipe material | TP2 copper (Ø35x0.8mm) |
| Manifold casing | Aluminum alloy(size-150mm*160mm,thickness-2.0mm) |
| Insulation material in manifold caseing | Glass fiber |
| Thickness of insulation(mm) | 45 |
| Frame material | Aluminum alloy frame(1.2mm) |
Solar collector information
| Model | Tube Size/Qty | Capacity | PACKING SIZE | Pressure | ||
| Volume | ||||||
| 20GP | 40GP | |||||
| PT5812 | 58mm*1800/12 | 120L | 0.18 | 150 | 300 | 0.6Mpa |
| PT5815 | 58mm*1800/15 | 150L | 0.22 | 127 | 239 | 0.6Mpa |
| PT5818 | 58mm*1800/18 | 180L | 0.28 | 100 | 192 | 0.6Mpa |
| PT5820 | 58mm*1800/20 | 200L | 0.3 | 93 | 180 | 0.6Mpa |
| PT5825 | 58mm*1800/25 | 250L | 0.42 | 65 | 130 | 0.6Mpa |
| PT5830 | 58mm*1800/30 | 300L | 0.45 | 60 | 120 | 0.6Mpa |
| PT4712 | 47mm*1500/12 | 80L | 0.13 | 210 | 415 | 0.6Mpa |
| PT4715 | 47mm*1500/15 | 100L | 0.15 | 186 | 357 | 0.6Mpa |
| PT4718 | 47mm*1500/18 | 120L | 0.17 | 164 | 317 | 0.6Mpa |
| PT4720 | 47mm*1500/20 | 150L | 0.19 | 145 | 312 | 0.6Mpa |
| PT4728 | 47mm*1500/28 | 200L | 0.25 | 120 | 270 | 0.6Mpa |
| PT4735 | 47mm*1500/35 | 250L | 0.32 | 96 | 211 | 0.6Mpa |
Service
1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order: 3--7 Days for sample order
3.) Can do OEM Basing on your detailed Request
FAQ
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:7-10days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,Escrow & West Union
5- What is your MOQ?
1 set
6- What is your Packing?
LCL order/Sample order in wooden box Package
Full container order in Standard quality export carton with PE Foam Protection
7- What is your FOB Port?
We accept FOB Shanghai & Ningbo
8.- What is your Monthly Production Capacity?
1000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
