Product Details:
|
| Tubes: | 30 Tubes | Insulation: | Polyurethane |
|---|---|---|---|
| Mounting: | Aluminum Alloy | Installation: | Balcony Mounting |
| Heat Pipe: | 14mm Condenser Copper, Nickel Plated | Reflector: | Stainless Steel |
| Exchange: | Heat Pipe | Application: | Heating Water Tank |
| High Light: | heat pipe vacuum tube solar collector,pressurized solar collector |
||

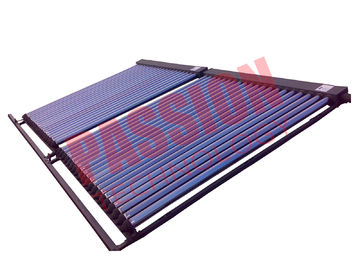

CE High Efficiency Balcony Mounting Stainless Steel Reflector Heat Pipe Solar Collector
Principle:
Inside the glass vacuum tube lies a copper pipe folded into a U-shape with aluminum thermal conductors to transfer the solar energy from the inside wall of the glass vacuum tube to the collector case. The heat transfer fluid flows into each copper pipe, then connected in parallel to the upper part of the panel to a single collector.
Specifications
1) The water is heated by the heat pipe rapidly.
2) There is no water in the vacuum tube,so the tube will not break in the winter.
3) It can be combined with the architecture perfectly.
4) It can be combined with existing pipeline.
5) It will be affected by the local water quality,it doesn't suit hard water.
6) It can be still operate in the event of occasional tube breakages
| Model name | 12-58/1800 | 15-58/1800 | 20-58/1800 |
| number of tubes | 12 | 15 | 20 |
| Gross size(mm) | 1010*1980 (W*L) | 1235*1980 (W*L) | 1610*1980 (W*L) |
| aperture area M2 | 1.108 | 1.397 | 1.876 |
| Absorber area M2 | 0.964 | 1.199 | 1.603 |
| flat roof installation size | 1420*1010*1420mm (L*W*H) | 1420*1235*1420mm (L*W*H) | 1420*1610*1420mm (L*W*H) |
| weight empty (KG) | 40.7 | 56 | 64.4 |
| fluid volume( L) | 0.8 | 1 | 1.37 |
| Heat transfer medium | pure water/glycol | pure water/glycol | pure water/glycol |
| working pressure | 6 bar | 6 bar | 6 bar |
| Max testing pressure | 12 bar | 12 bar | 12 bar |
| Max working temperature | 280°C | 280°C | 280°C |
| efficiency n° | 0.788 | 0.79 | 0.795 |
| inlet/outlet connection | 22mm | 22mm | 22mm |
| manifold packing mm | 1*2000*200*160 | 1*2000*200*160 | 1*2000*200*160 |
| tubes packing mm | 1*1940*280*270 | 1*1940*350*270 | 2*1940*350*180 |
| certificate | EN12975-1,2 SOLAR KEYMARK | EN12975-1,2 SOLAR KEYMARK | EN12975-1,2 SOLAR KEYMARK |
| Material | |||
| vacuum tube | high borosilicate glass | ||
| size | 58*1800mm | ||
| coating | SS-CU-AIN/ALN | ||
| heat pipe material | TU1 copper | ||
| heat pipe length | 1790mm | ||
| heat pipe diameter | condenser dia14mm, body dia 8mm | ||
| manifold header pipe | TP2 copper dia 35mm | ||
| manifold casing | anodized aluminum alloy | ||
| insulation | rock wool with polyurethane foam | ||
| bracket | galvanized steel | ||
| tube holder | UV stabilized nylon | ||
| seals | silicon seal | ||
| contact sheets | aluminum fin | ||
Packaging & Shipping
Samples in plywood cases
FCL in standard export
