Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter

Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter

    • Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter
    • Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter
    • Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter
  • Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 150L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T, D/P
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Capacity: 150L Outer Tank: Stainless Steel 304-BA
    Mounted: Balcony Wall Mounted Structure: Integrative
    Principle: Non Pressurized Tube: Vacuum Tube
    Range Of Use: Kitchen

    150L Enamel White Steel Balcony Wall Mounted Integrative Non Pressurized Vacuum Tube Thermal Solar Water Heater



    Categories: Unpressurized Solar Water Heater

    Brand: OEM

    Type: Evacuated Tube

    Pressure: Unpressurized

    Circulation Type: Direct / Open Loop (Active)

    Heating System: Thermosyphon (Passive)

    Connection Type: Direct-Plug

    Installation: Freestanding

    Housing Material:color coated Steel

    Certification: CE.

    Capacity: 80L-300L

    Application: residential use water heating

    Tube Type: glass vacuum tube

    Tank Shell: color steel / stainless steel / fluorocarbon plate

    Heating System: thermosyphon

    Update Time: 06-13-2017



    Technical Parameters:



    Vacuum tube Spec.(mm) Φ47×1500 Φ58×1800 Φ70×2000
    Tube (pcs) 12 / 15 / 16 / 18 / 20 / 22/ 24 / 28 / 30 / 36 / 42
    Material 3.3 Borosilicate glass, magnetron spluttering selective coating
    Coating AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
    Water tank Capacity 70 ~ 400L for inner water tank
    Inner tank Food-grade stainless steel plate SUS304-2B
    Insulation High-density polyurethane integrated foam-forming 50~60mm
    Tank shell Color steel plate
    Bracket Spec.(mm) 1.2 ~ 1.5mm thickness
    Material Hot-dip galvanized steel plate
    Accessories Stainless bolts & nuts, Silicon rubber seal, Dust-proof rubber seal, Plastic pipe holder
    Optional device Electrical heater, Intelligent controller / Assistant tank, Anode magnesium bar
    Tilt angle 25°- 50°
    Water output 45-95°
    Hail resistance Φ25mm diameter



    Features description:



    Non-pressurized solar water heater is such kind of a most economical system with high efficiency at the same time.

    It works depending on the gravity of water, so it's much better to be installed on the slope or flat roof as top as possible to get enough hydraulic pressure.

    A simple assistant tank can be equipped for tap water refill automatically or with an intelligent controller to control the auxiliary heating device at the same time.



    Vacuum tube:

    Hail-resisting borosilicate glass with high-tech selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a high temperature resistance (380C).



    Inner water tank:

    Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced welding technology to ensure it with a long lifespan (15 years).

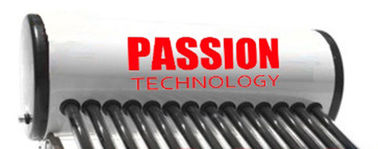

    Water tank shell: Imported color steel plate, with its outer coating treatment ensures a long life even to ocean coast weather.



    Insulation Layer:

    Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly as long as 70-80 hours.



    Supporting Bracket:

    Hot-dip galvanized steel plate with a good weight bearing and wind resistance(140 km/hr), super mechanical performance and corrosion resistance ensures a long life to ocean coast, easy installation, universal bracket suitable for either flat or slope roof installation.



    Accessories:

    Stainless bolts & nuts, water-proof silicon rubber, anti-aging dust-proof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the system


    Optional Devices:

    Assistant tank, to automatically feed tap water into storage tank to keep it sufficient always

    Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continuous hot water supply

    Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent operation

    Booster Pump, a choice for those area without tap water or with a unstable water supply



    Warranty:

    6years international responsibility for integrated system and 15 years for glass vacuum tubes due to original quality problems



    Balcony Wall Mounted Solar Water Heater , Solar Collector Water Heater 150 Liter
