Home ProductsHeat Pipe Solar Water Heater

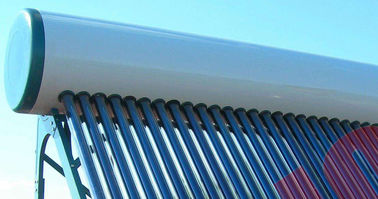

Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing

Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing

    • Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing
    • Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing
    • Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing
  • Roof Flat Solar Water Heater , Copper Pipe Solar Water Heater For Washing

    Product Details:

    Place of Origin: CHINA
    Brand Name: PASSION/OEM
    Certification: CE
    Model Number: 300L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: CARTONS/PLYWOOD CASE/PALLET
    Delivery Time: 10 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5000units/month
    Contact Now
    Detailed Product Description
    Capacity: 300L Structure: Integrated
    Principle: Pressured Roof: Flat Roof
    Outer Tank: Colored Steel Inner Tank: Stainless Steel
    Collector: Heat Pipe Use: Washing

    300L Integrated Pressured Flat Roof Heat Pipe Solar Water Heater for Washing



    Working Principle:

    Compact Pressurized Solar Water Heaters are all-glass evacuated tube solar domestic water systems combined with heat pipes inside the glass tube.



    The selective coating on the inner tube converts solar energy into heat energy and transfers to the heat pipe by an aluminum fin.



    The liquid in the heat pipe changes into vapor which rises to the condenser.



    The heat conducts the water inside the tank and the vapor becomes liquid, returning to the base of the heat pipe.



    This continuous circulation transfers heat from the heat pipe to the cold water in the tank as long as sun is heating the collectors.



    Hot water can be obtained by injecting cold water from the bottom of the tank.



    Technical Data:

    MODEL Integrated pressurized solar water heater with enameled tank
    Inner tank material 1.5mm SUS 304 2B
    Outer tank material colored steel sheet,thickness:0.4mm/stainless steel sheet,thickness:0.4mm/galvanized steel sheet,thickness:0.4mm
    Outer tank diameter 460mm/470/520/550mm
    Insulation layer 55mm,heat preservation 100 hours
    Frame and frame angle aluminum alloy,thickness:2mm 0-45°/stainless steel,thickness:1.2mm 27°,30°,38°,45°/galvanized steel,thickness:1.2mm 27°,30°,38°,45°
    Heat pipe ø58mm*1800mm,three high vacuum tube
    Lowest working temperature -10°C/-40°C
    Heat pipe condenser size 9mm
    Working pressure 7bar/0.7MPa
    Testing pressure 12bar/1.2MPa
    Needed accessories electrical heater, T/P valve, one way safety valve, Magnesium bar, controller, working stain, plastic cap
    Hail resistance 20mm



    Accessories:

    1. Electric heater:1500W-2000W/220V-230V;

    2. Intelligent controller: SR609(esp. for integrative pressurized type);

    3. P/T valve (pressure & temperature): WAY-20,0.7MPa;

    4. Magnesium rod:diameter 20mm, length 23 cm, copper connector;

    5. Temperature sensor;

    6. Air vent valve;

    7. Vacuum valve;

    8. Check valve.



    FAQ:

    1. What is your Delivery Time?

    LCL order:10days.

    Full container order:15days.

    2. What is your Guarantee Time?

    6 years; Provide you with some accessories, they are free for you.

    3. Can you accept OEM and ODM ?

    YES, printing your LOGO on the product and package, it's free.

    4. What is your payment term?

    We accept T/T or L/C, Western Union and Paypal.

    5. What is your MOQ?

    4 sets

    6. Low do you pack?

    LCL order in plywood case

    Full container order in high quality export carton

    7. What is your FOB port?

    We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.

    8. What is your monthly production capacity?

    1000 sets

    9. What is your shipping term?

    By sea/Air/Rail/Truck

    10. Do you any additional services?

    YES!

    We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.

    And we can offer logo design, Products Advertising Design etc services free.
